Home > Packaging & Printing > Packing Machinery > Packing Line > [RD-SB1500-2600-5] Semi-automatic 5 Color Printing Slotting Carton Box Packing Machine

[RD-SB1500-2600-5] Semi-automatic 5 Color Printing Slotting Carton Box Packing Machine

Name: [RD-SB1500-2600-5] Semi-automatic 5 Color Printing Slotting Carton Box Packing Machine
Brand: RuiDa
SKU: 116138043
Availability: InStock

Pujiang Ruida Industry & Trade Co., Ltd.

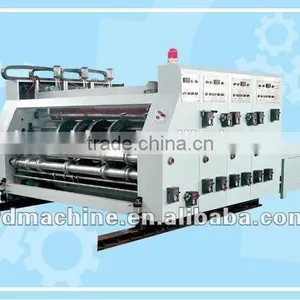

[RD-SB1500-2600-5] Semi-automatic 5 Color Printing Slotting Carton Box Packing Machine thumbnail-1

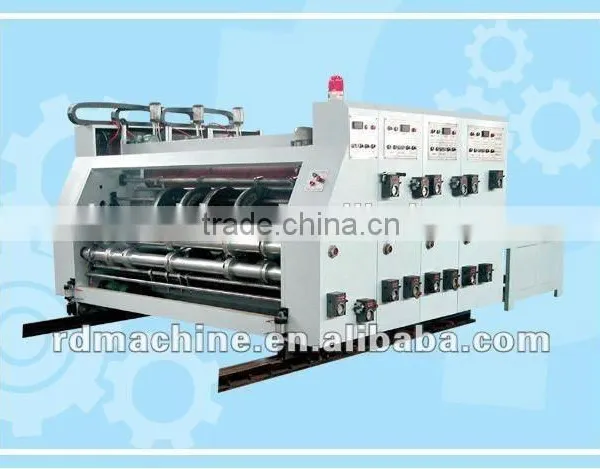

[RD-SB1500-2600-5] Semi-automatic 5 Color Printing Slotting Carton Box Packing Machine photo-1

US$ 10,000 - 35,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Cartons, Case, Film

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port for Carton box packing machine

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, Machinery & Hardware

Packaging Type Cartons, Case, Film

Packaging Material Paper, Plastic

Automatic Grade Semi-Automatic

Driven Type Electric

Voltage 380V

Power 7KW

Place of Origin Zhejiang, China

Brand Name RuiDa

Model Number RD-SB1500-2600-5

Dimension(L*W*H) 6100*3200*1900mm

Weight 7T

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

- Best-selling carton box packing machine
- Chains for paper feeding
- Advanced glue revising device
- auto lubrication
- CE

Specifications:

S/N	Parameter	Unit	Model
S/N	Parameter	Unit	RD-SB910-2000-5	RD-SB1500-2600-5	RD-SB1500-2800-5	RD-SB1500-3000-5
1	Machine inner width	mm	2000	2600	2800	3000
2	Max.paper size	mm	910*1800	*15002400**	1500*2600	1500*2800
3	Min.paper size	mm	280*650	*450650**	450*650	450*650
4	Max.printing size	mm	810*1600	*14002200**	1400*2400	1400*2600
5	Carboard thikness	mm	2~11	2~11	2~11	2~11
6	Printing plate thikness	mm	6	7.2	7.2	7.2
7	Dia.of printing roller	mm	Φ290	Φ475	Φ475	Φ475
8	speed	pcs/min	60	60	60	60
9	Topping precision	mm	±0.5	±0.5	±0.5	±0.5
10	Slotting precision	mm	±1.5	±1.5	±1.5	±1.5
11	Total power	kw	7	7	7	7
12	Weight	T	6	7	8	9
13	Overall dimension(LWH)	mm	610026001900	*610032001900*	610034001900	610036001900

Features:

Semi-automatic 5 color printing slotting carton box packing machine .
It's very convenient to control the printing slotting units, with the characteristics of order storage ,quick order changing and convenient operation.
All the transmission gears use 45# chrome steel after high-frequency quenching and grinding in accordance with national standard.
All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
Different alarm ring will along with the machine launching and stopping.
The carton box packing machine is launched by pressing the start button with two hands, which ensure the operator's safety.
Each unit equips with emergency stop button.
Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
Equipped with automatic lubrication system.
The machine has single-color,double-color,three-color,four-color and five-color available for option.

Chain feeding unit:

Semi auto chain feeding, side plate is adjustable to adapt the different size of cardboard.
Equipped with 5 feeding chains, and 3 feeding push plates for each chain.
The chain rail is made of high strength engineering plastic, which is low noise, and long life time.
The height of the workbench is adjustable.
Automatic counter for recording the cardboard supply quantity to show the output.

Printing unit:

All the rolls and shafts are made of high quality steel, with the treatment of dynamic balance correction, grinding and chrome plated.
The phase position could be adjusted CW or CCW easily with 360 degree because of the equipping planetary gearing mechanism.
The printing plate is hanged by the hanging plate device, the printing roll is able to clockwise rotate and counter clockwise rotate which controlled by the foot switch, it's very convenient for installation and dismounting of printing plate.
The inker automatically breaks away from surface to protect printing plate from damage in case of mechanical shut down.
Gear transmission uses circulating lubrication oil supply system to minimize noise and extend service life and improve the precision of chromatic printing.
Manual gap adjustment via worm reducer with graduated dial indication such as gap between rubber roll and anilox roll, gap between anilox roll and printing roll etc.
Equipped with electromagnetic clutch break system to fix the printing phase, when separate the printing unit for adjusting the printing phase, the break system will prevent the gear move, keep the original position.
Phase clear memory and reset after printing plate cleaning.
The distributing rubber roll is covered by wear proof rubber, it's good at ink transmission.
The inker automatically get empty to rotate device,prevent ink from being dried.
Steel anilox roll with the treatment of grinding, pressing overlapping curve and chrome plated.

Slotting unit:

The slotting phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of planetary gearing mechanism.
Double slotting configuration, after pressing of prepressing wheel and pressing wheel, the carton box will reach better forming effect.
Precision linear guide horizontal displacement systems is equipped with slotting unit, the slotting knife seat, pressing wheel, trimming knife will moving precisely.
Grooving synchronism adjust the height of carton.(Manually operation)
The slotting knives are made of high quality alloy steel, with heat treatment and grinding which ensure a long life.
Manual gap adjustment of prepressing wheel, pressing wheel, slotting knife seat.
Punching hole device is optional.

Our company is specialized in carton box packing machine . We have exported our products to many countries in Europe,Africa,Middle East and South-east Asia. The quality of the product and our good service have won us good reputation among our customers,thus establishing a long term business relationship with them .

If you have any other questions , pls feel free to contact me .

Looking forward to beginning our cooperation in the near future.
