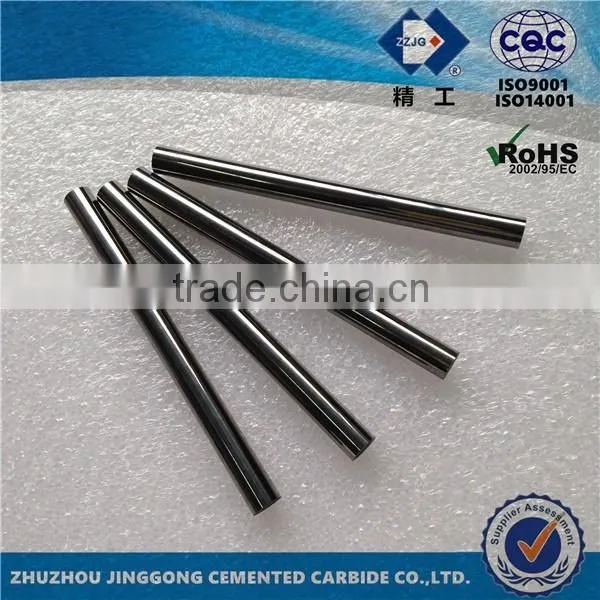

YL10.2 Tungsten Solid Carbide Rod

FOB Price

USD $46 - $59 / Kilogram

5 Kilograms(Min.Order)

Port any port of China
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China		Brand Name	ZZJG or OEM Brand
Model Number	K05, K10, K20, K30, K40, K50		Type	Power Tool Parts

Product Description

YL10.2 Tungsten Solid Carbide Rod :

Product Description

The Specification Range of YL10.2 Tungsten Solid Carbide Rod :

WC Grain size range: 0.3~0.5μ.m; 0.5~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.
Diameter range: 0.3mm--60mm;
Length range: 3mm-600mm; (General Length: 100mm,300mm,320mm,330mm)
Diameter Grade: h4(H4), h5(H5), h6(H6), h7(H7), h8(H8), h9(H9), etc.

Italy imported grinding machine to ensure the sphencity & the Linearity of rod at higher level standard;

Sphericity tolerance range: 0.001mm ~ 0.005mm;
Linearity tolerance range: 0.001mm~0.1mm;

Surface Roughness can be reached to: RA0.04.(reach a mirror effect surface after fine grinding)

The Sort with pictures of YL10.2 Tungsten Solid Carbide Rod we can supply :


Cemented Carbide Ground Bar	Tungsten Carbide Pins	Carbide Needle bar Dia. 0.33mm	Cemented carbide rod with a hole

Sphericity tolerance and Circular run-out for YL10.2 Tungsten Solid Carbide Rod :

Diameter	Surface Roughness	Sphericity	Circular run-out
2--6 mm	RA0.04	0.001	↑0.1
6.5-10 mm	RA0.04	0.001	↑0.1
10.5-14 mm	RA0.04	0.002	↑0.1
14.5-20 mm	RA0.04	0.004	↑0.05
>20 mm	RA0.04	0.005	↑0.03

ISO 286-2 Round Bar Tolerances "h Series" in Millimeters :

Diameter	h4	h6	h9	h11
0-3.0mm	+0/-0.003	+0/-0.006	+0/-0.025	-0/+0.006
3.001-6.0mm	+0/-0.004	+0/-0.008	+0/-0.030	-0/+0.008
6.001-10.0mm	+0/-0.004	+0/-0.009	+0/-0.036	-0/+0.009
10.001-18.0mm	+0/-0.005	+0/-0.011	+0/-0.043	-0/+0.011
18.001-30.0mm	+0/-0.006	+0/-0.013	+0/-0.013	-0/+0.013
30.001-50.0mm	+0/-0.007	+0/-0.016	+0/-0.052	-0/+0.016
50.001-60.0mm	+0/-0.008	+0/-0.019	+0/-0.062	-0/+0.019

General Grade of Tungsten Solid Carbide Rod :

If you can't find the right grade on belowing table, just email us for more grade details.

ISO Code	Co%	Density	Hardness		Transverse Rupture
ISO Code	Co%	Density	HV30	HRA	Transverse Rupture
K10	6%	14.8 g/cm³	1930 N/mm²	94.0	4100 MPa
	6%	14.9 g/cm³	1700 N/mm²	92.4	3000 MPa
	6%	14.93 g/cm³	1500 N/mm²	91.0	2600 MPa
K10-K20	8%	14.6 g/cm³	1900 N/mm²	93.7	4200 MPa
K10-K20	8%	14.8 g/cm³	1500 N/mm²	91.0	3800 MPa
K2O-K30 (Hot Sale)	10%	14.4 g/cm³	1650 N/mm²	92.2	4400 MPa
K2O-K30 (Hot Sale)	10%	14.08 g/cm³	1500 N/mm²	91.0	3300~3700 Mpa
K30-K40	12%	14.1 g/cm³	1700 N/mm²	92.5	4100 MPa
K50	15%	14.0 g/cm³	1150 N/mm²	87.5	2800 MPa

Packaging & Shipping

1, Packing Details:
Netural packing, Customized packing or OEM Brand packing are available

2. Shipment Details:
1. FedEx/DHL/UPS/TNT/EMS for sample delivery, by Door-to-Door service;
2. By Air or by Sea for batch goods;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 3-7 days for stock samples; 10-25 days for batch goods.

5. As soon as the order is shipped, we will list the tracking details to you in time.
