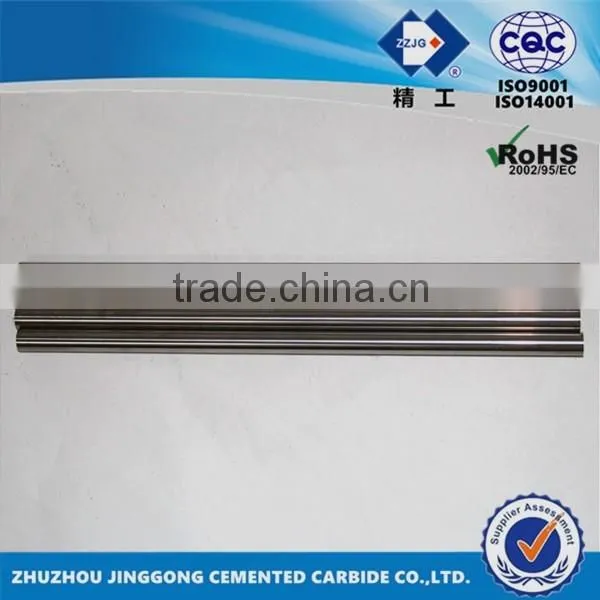

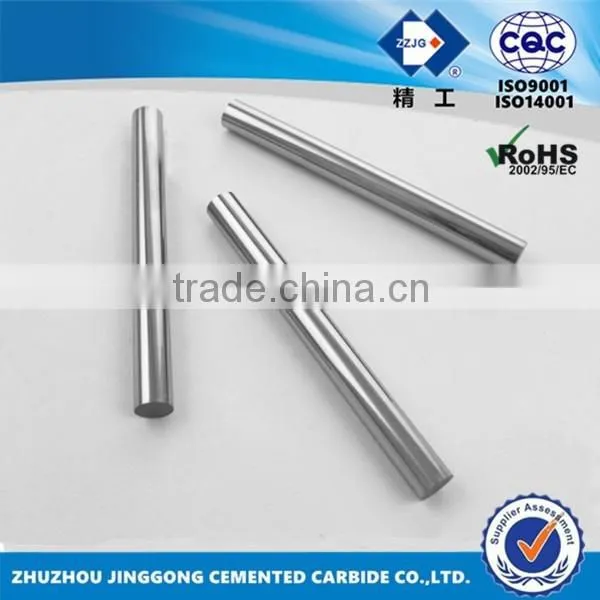

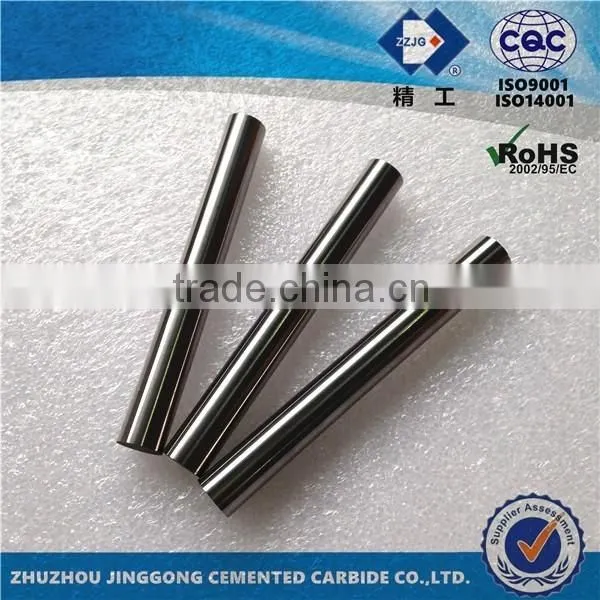

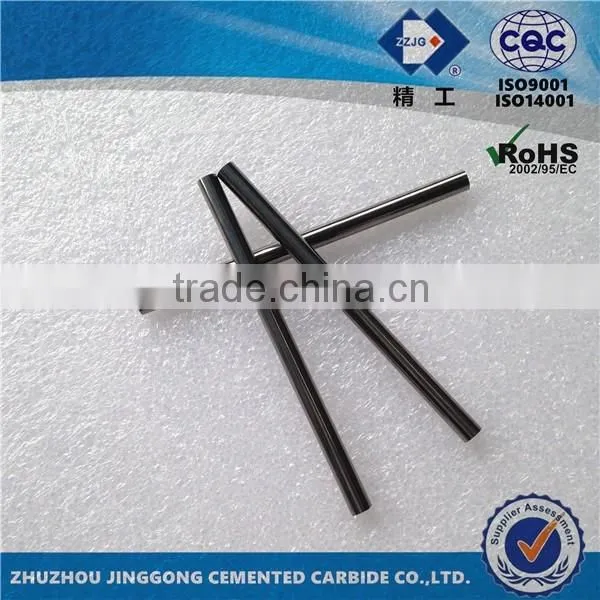

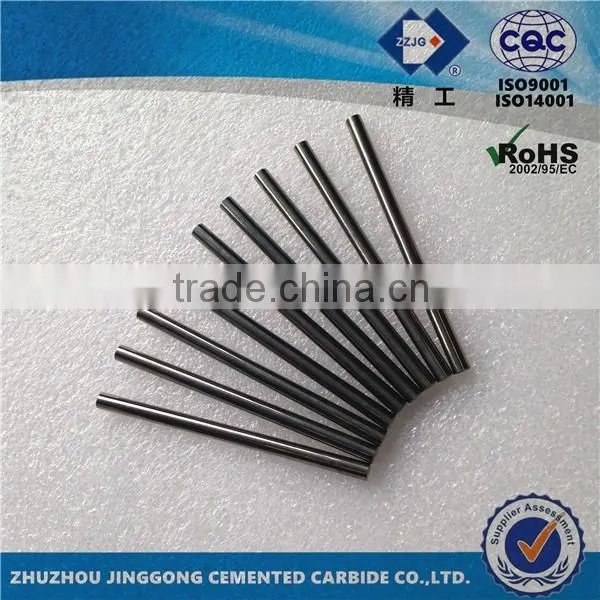

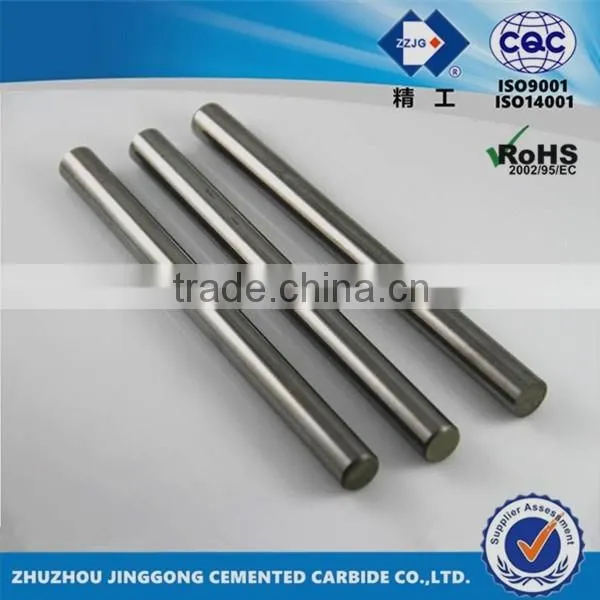

Best Price for Tungsten Carbide Bar :
| The Specification Range of Tungsten Carbide Bar : |
WC Grain size range: 0.3~0.5μ.m; 0.5~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.
Diameter range: 0.3mm--60mm;
Length range: 3mm-600mm; (General Length: 100mm,300mm,320mm,330mm)
Diameter Grade: h4(H4), h5(H5), h6(H6), h7(H7), h8(H8), h9(H9), etc.
Sphericity tolerance range: 0.001mm ~ 0.005mm;
Linearity tolerance range: 0.001mm~0.1mm;
Surface Roughness can be reached to: RA0.04.(reach a mirror effect surface after fine grinding)
| The Sort with pictures of Tungsten Carbide Bar we can supply: |
|
|
|
|
| Cemented Carbide Ground Bar | Tungsten Carbide Pins | Carbide Needle bar Dia. 0.33mm | Cemented carbide rod with a hole |
| Sphericity tolerance and Circular run-out for Tungsten Carbide Bar : |
| Diameter | Surface Roughness | Sphericity | Circular run-out |
| 2--6 mm | RA0.04 | 0.001 | ↑0.1 |
| 6.5-10 mm | RA0.04 | 0.001 | ↑0.1 |
| 10.5-14 mm | RA0.04 | 0.002 | ↑0.1 |
| 14.5-20 mm | RA0.04 | 0.004 | ↑0.05 |
| >20 mm | RA0.04 | 0.005 | ↑0.03 |
ISO 286-2 Carbide Round Bar Tolerances "h Series" in Millimeters : |
| Diameter | h4 | h6 | h9 | h11 |
| 0-3.0mm | +0/-0.003 |
+0/-0.006 |
+0/-0.025 | -0/+0.006 |
| 3.001-6.0mm | +0/-0.004 |
+0/-0.008 |
+0/-0.030 | -0/+0.008 |
| 6.001-10.0mm | +0/-0.004 |
+0/-0.009 |
+0/-0.036 | -0/+0.009 |
| 10.001-18.0mm | +0/-0.005 |
+0/-0.011 |
+0/-0.043 | -0/+0.011 |
| 18.001-30.0mm | +0/-0.006 |
+0/-0.013 |
+0/-0.013 | -0/+0.013 |
| 30.001-50.0mm | +0/-0.007 |
+0/-0.016 |
+0/-0.052 | -0/+0.016 |
| 50.001-60.0mm | +0/-0.008 |
+0/-0.019 |
+0/-0.062 | -0/+0.019 |
| General Grade of Tungsten Carbide Bar for Drill bits or Endmilling : |
If you can't find the right grade on belowing table, just email us for more grade details.
| ISO Code | Co% | Density | Hardness | Transverse Rupture | |
| HV30 | HRA | ||||
| K10 | 6% | 14.8 g/cm³ | 1930 N/mm² | 94.0 | 4100 MPa |
| 6% | 14.9 g/cm³ | 1700 N/mm² | 92.4 | 3000 MPa | |
| 6% | 14.93 g/cm³ | 1500 N/mm² | 91.0 | 2600 MPa | |
| K10-K20 | 8% | 14.6 g/cm³ | 1900 N/mm² | 93.7 | 4200 MPa |
| 8% | 14.8 g/cm³ | 1500 N/mm² | 91.0 | 3800 MPa | |
| K2O-K30 (Hot Sale) |
10% | 14.4 g/cm³ | 1650 N/mm² | 92.2 | 4400 MPa |
| 10% | 14.08 g/cm³ | 1500 N/mm² | 91.0 | 3300~3700 Mpa | |
| K30-K40 | 12% | 14.1 g/cm³ | 1700 N/mm² | 92.5 | 4100 MPa |
| K50 | 15% | 14.0 g/cm³ | 1150 N/mm² | 87.5 | 2800 MPa |
Netural packing, Customized packing or OEM Brand packing are available
2. Shipment Details:
1. FedEx/DHL/UPS/TNT/EMS for sample delivery, by Door-to-Door service;
2. By Air or by Sea for batch goods;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 3-7 days for stock samples; 10-25 days for batch goods.
5. As soon as the order is shipped, we will list the tracking details to you in time.
----Clicking the following picture, you can link to the details of our company profile directly
Except for Tungsten Carbide Bar , You might interested in:
|
|
|
| CNC Inserts | Tungsten Carbide Sealing ring Blanks | Tungsten Carbide strips and plate |
|
|
|
| Carbide cold forging dies and wire drawing die | Tungsten Caribde Valve Ball and Valve Seat | Tungsten Carbide Inserts |
Our Product Ranges:
| Why Choose ZZJG's Products ? |
|
1 We are a Real Factory and Ranked in The Top Two Tungsten Carbide Products Supplier in Zhuzhou City. (where is The world's five largest supply cemented carbide base).100% customers are satisfied with our production capacity and Quality after visitation.
2. Our Current output is over than 78 Tons per month.
3. 100% QC inspection Before Shipment.
4. We guarantee that all of our products are used with 100% Virgin Raw Material.
5. Certification: ISO 9001:2008; ISO 14001:2004; OHSAS 18001; RoHS,
6. We can produce the Special Non-standard Shaped Carbide Products as per your sample or drawing.
|
Mob / What's APP : 0086-18692641887
Wechat ID: carlina001
Skype : carlina-peng
1. Are you the real reliable factory or just a trader company?
2. Can you make the goods according to our drawings or samples?
3. Can I negotiate the Prices?
4. Can I get a sample from you for Quality checking?
5. What is your minimum order requirement?
6. How long will it takes to execute my order?
7. Can you give warranty of your products?
8, Can we get support if we have our own market position?
9. There have many companies called they are 'Factory', how can I identified the truth?
Are you looking for the right cooperative factory for Tungsten Carbide Bar ? Just list your inquiry details as belows, and click the " Send " to contact with us now.
