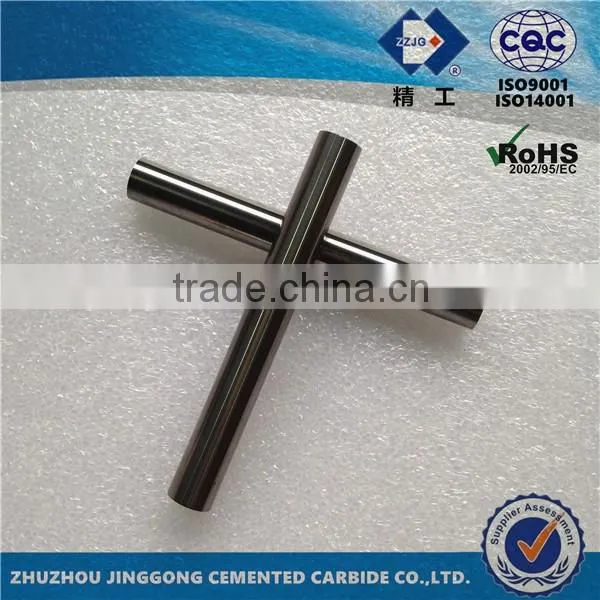

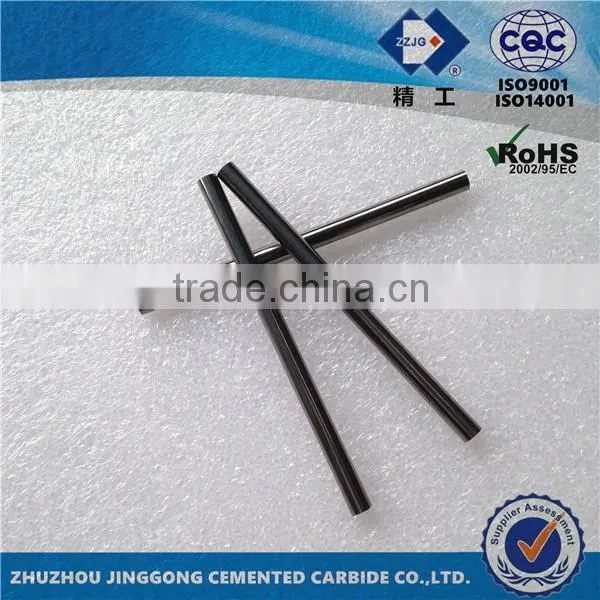

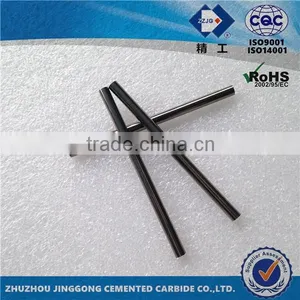

ISO K20-K30 330mm Carbide Rod, Cemented Carbide Rod :
| The Specification Range of Carbide Rod, Cemented Carbide Rod : |
WC Grain size range: 0.3~0.5μ.m; 0.5~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.
Diameter range: 0.3mm--60mm;
Length range: 3mm-600mm; (General Length: 100mm,300mm,320mm,330mm)
Diameter Grade: h4(H4), h5(H5), h6(H6), h7(H7), h8(H8), h9(H9), etc.
Sphericity tolerance range: 0.001mm ~ 0.005mm;
Linearity tolerance range: 0.001mm~0.1mm;
Surface Roughness can be reached to: RA0.04.(reach a mirror effect surface after fine grinding)
| The Sort with pictures of Cemented Carbide Rod we can supply: |
|
|
|
|
| Tungsten Carbide Ground Rod | Tungsten Carbide Pins | Carbide Needle bar Dia. 0.33mm | Cemented carbide rod with a hole |
| Sphericity tolerance and Circular run-out for Cemented Carbide Rod : |
| Diameter | Surface Roughness | Sphericity | Circular run-out |
| 2--6 mm | RA0.04 | 0.001 | ↑0.1 |
| 6.5-10 mm | RA0.04 | 0.001 | ↑0.1 |
| 10.5-14 mm | RA0.04 | 0.002 | ↑0.1 |
| 14.5-20 mm | RA0.04 | 0.004 | ↑0.05 |
| >20 mm | RA0.04 | 0.005 | ↑0.03 |
ISO 286-2 Round Bar Tolerances "h Series" in Millimeters : |
| Diameter | h4 | h6 | h9 | h11 |
| 0-3.0mm | +0/-0.003 |
+0/-0.006 |
+0/-0.025 | -0/+0.006 |
| 3.001-6.0mm | +0/-0.004 |
+0/-0.008 |
+0/-0.030 | -0/+0.008 |
| 6.001-10.0mm | +0/-0.004 |
+0/-0.009 |
+0/-0.036 | -0/+0.009 |
| 10.001-18.0mm | +0/-0.005 |
+0/-0.011 |
+0/-0.043 | -0/+0.011 |
| 18.001-30.0mm | +0/-0.006 |
+0/-0.013 |
+0/-0.013 | -0/+0.013 |
| 30.001-50.0mm | +0/-0.007 |
+0/-0.016 |
+0/-0.052 | -0/+0.016 |
| 50.001-60.0mm | +0/-0.008 |
+0/-0.019 |
+0/-0.062 | -0/+0.019 |
| General Grade of 330mm Carbide Rod, Cemented Carbide Rod : |
If you can't find the right grade on belowing table, just email us for more grade details.
| ISO Code | Co% | Density | Hardness | Transverse Rupture | |
| HV30 | HRA | ||||
| K10 | 6% | 14.8 g/cm³ | 1930 N/mm² | 94.0 | 4100 MPa |
| 6% | 14.9 g/cm³ | 1700 N/mm² | 92.4 | 3000 MPa | |
| 6% | 14.93 g/cm³ | 1500 N/mm² | 91.0 | 2600 MPa | |
| K10-K20 | 8% | 14.6 g/cm³ | 1900 N/mm² | 93.7 | 4200 MPa |
| 8% | 14.8 g/cm³ | 1500 N/mm² | 91.0 | 3800 MPa | |
| K2O-K30 (Hot Sale) |
10% | 14.4 g/cm³ | 1650 N/mm² | 92.2 | 4400 MPa |
| 10% | 14.08 g/cm³ | 1500 N/mm² | 91.0 | 3300~3700 Mpa | |
| K30-K40 | 12% | 14.1 g/cm³ | 1700 N/mm² | 92.5 | 4100 MPa |
| K50 | 15% | 14.0 g/cm³ | 1150 N/mm² | 87.5 | 2800 MPa |
Netural packing, Customized packing or OEM Brand packing are available
2. Shipment Details:
1. FedEx/DHL/UPS/TNT/EMS for sample delivery, by Door-to-Door service;
2. By Air or by Sea for batch goods;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 3-7 days for stock samples; 10-25 days for batch goods.
5. As soon as the order is shipped, we will list the tracking details to you in time.
Except for ISO K20-K30 330mm Cemented Carbide Rod , You might interested in:
|
|
|
| CNC Inserts | Tungsten Carbide Sealing ring Blanks | Tungsten Carbide strips and plate |
|
|
|
| Carbide cold forging dies and wire drawing die | Tungsten Caribde Valve Ball and Valve Seat | Tungsten Carbide Inserts |
Our Product Ranges:
| Why Choose ZZJG's Products ? |
|
1 We are a Real Factory and Ranked in The Top Two Tungsten Carbide Products Supplier in Zhuzhou City. (where is The world's five largest supply cemented carbide base).100% customers are satisfied with our production capacity and Quality after visitation.
2. Current output is over than 78 Tons per month.
3. 100% QC inspection Before Shipment.
4. We guarantee that all of our products are used with 100% Virgin Raw Material.
5. Certification: ISO 9001:2008; ISO 14001:2004; OHSAS 18001; RoHS,
6. We can produce the Special Non-standard Shaped Carbide Products as per your sample or drawing.
|
Mob / What's APP : 0086-18692641887
Wechat ID: carlina001
Skype : carlina-peng
|
1. Are you the real reliable factory or just a trader company? 2. There have many companies called they are 'factory', how can I identified the truth? |
Are you looking for the right cooperative factory for Cemented Carbide Rod ? Just list your inquiry details as belows, and click the " Send " to contact with us now.
