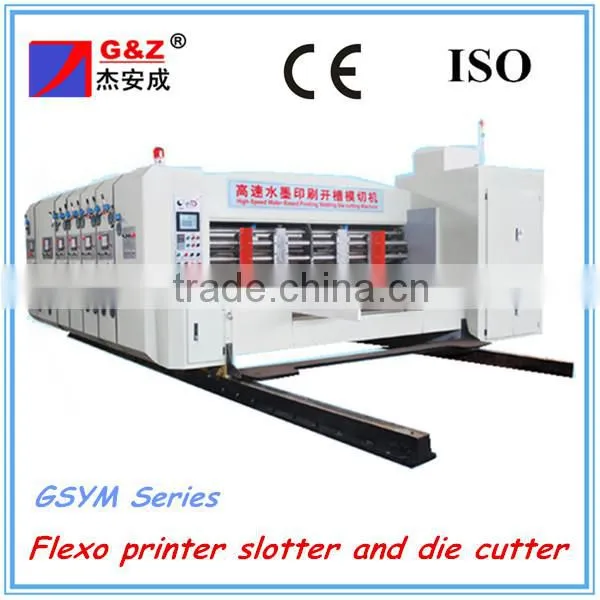

Flexo Printer Slotter Die Cutter and Stacker

Flexo Printer Slotter Die Cutter and Stacker thumbnail-1
Flexo Printer Slotter Die Cutter and Stacker photo-1
US$ 450,000 - 450,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Printing slotting and die cutting machine
Packaging Type:
Film, Case
Contact Supplier Request Quote Chat Now
Qingdao G&Z Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Printing slotting and die cutting machine
Packaging Type Film, Case
Packaging Material Plastic, Metal
Automatic Grade Automatic
Driven Type Electric
Voltage 380V50HZ
Power 45kw
Place of Origin Shandong, China
Brand Name G&Z
Model Number GSYM1224
Weight ink flexo printing slotting and rotary die cutting machine
Dimension(L*W*H) ink flexo printing slotting and rotary die cutting machine
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Flexo printer slotter die cutter and stacker
1.CE,ISO
2.good reputation
nical support
4.high quality

Flexo printer slotter die cutter and stacker                 G&Z COMPANY
Flexo printer slotter die cutter and stacker
 Flexo printer slotter die cutter and stacker
 Flexo printer slotter die cutter and stacker
 Company

G&Z group is one of the leading manufacturers and suppliers in carton box making fields, organizing high quality machinery, materials, spares, technology support, etc. from China for overseas printing/packing companies and partners.

Main products our group manufactures and supplies include semiautomatic and automatic laminators, semiautomatic and automatic die cutters, corrugation paperboard production lines, single facers, printer slotter and die cutters, automatic folder gluer, automatic stitching machines, starch glue powder, flat stitching wires, papers, etc.

Till now, we are cooperating with overseas customers from over twenty countries. And our products have earned good reputation from our customers.

Our goal: try our best to meet the requirements of the printing / packaging companies, bring them much more benefits and reduce their running cost, offer them the optimal solutions in the form of machines, materials, services, etc.
 Technical Parameters

Model GSYM1224
Forme roller dia ¢405(forme thickness 7.2mm)
Forme roller length 2400mm
Max mechanical design speed 240 sheets/min
Economic running speed ≤200 sheets/min
Max feeding size 1200*2400mm
Min feeding size 400*650mm
Max printing area 1100*2350mm
Paperboard thickness 2-11mm
Thickness of printing plate 7.2mm
Machine wall thickness 60mm
Overprint accuracy ≤ ±0.5mm
Main motor power 45kw



 Functions and Features


1.The whole machine computerized PLC control, convenient and reliable.
2.All driving rollers are high grade steel, plate with the hard chromium, abrade outside.
3.Drive gear adopt 20CrMoTi high grade alloy steel to grind the day after tomorrow but becomes and goes through 60 degree of heat treatment Rockwell hardness greater than.
4.Each unit electrically departing, pneumatic locking, pneumatic general locking, sustained bell warning during moving, ensures operation personnel safe.
5.Different start and stop warning rings.
6.Start the machine by both hands, ensures that handling person safe.
7.In front, middle and the end, there are emergency stop buttons.
8.There are different guiding lights for switching-on, standby, moving and abnormal (three-color guiding lights of LED).
9.There are emergency stop buttons in each unit which can stop the moving of the unit inside to ensure the operators safe.

10.Servo control lead edge feeding unit.

11. Hot winding drying system in each printing unit to improve the printing quality and running speed.

12.Dust cleaning system before printing to improve the printing quality.

13. Vacuum transfer system to improve the overprint accuracy.

14.Adopting ceramic anilox rollers and double doctor blade chamber system
15.Adopting int’l famous brands electric fittings for the whole machine. The complete machine zeroes without exception , wipe printing plate memory and preset function, printing and die-cutting phases zero, pre-adjustment and accurate adjustment, phase adjustment, all above make the whole machine with much higher accurate.



Flexo printer slotter die cutter and stacker
