Specifications
Carton Box 4 Colour Printing Machinenvenient operation.
2.high quality
3.with slotter , die cutter
4.labor save

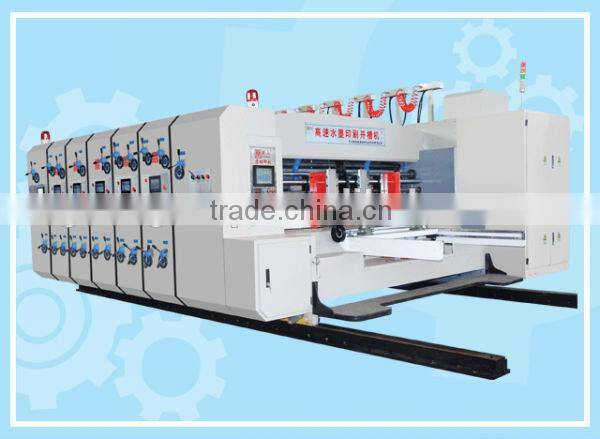

Carton Box 4 Colour Printing Machine
Specification:
Data / Model |
GSYK1450×2400 |
Forme roller dia. |
540 (forme thickness 6.0mm) |
Forme roller length |
2400mm |
Max working speed |
140 sheets/min |
Max. feeding size(mm) |
1600×2600mm |
Max. printing area(mm) |
1450×2400mm |
Min. feeding size(mm) |
450×650mm |
Paperboard thickness(mm) |
2-13mm |
Machine wall thickness |
60mm |
Overprint accuracy |
± 0.5mm |
Slotting accuracy |
± 1.0mm |
Main motor powder |
22Kw |
Data / Model |
GSYK1600×2700 |
Forme roller dia. |
540 (forme thickness 7.2mm) |
Forme roller length |
2800mm |
Max. mechanical design speed |
140sheets/min |
Economic running speed |
120 sheets/min |
Max. feeding size(mm) |
1600×2800mm |
Max. printing area(mm) |
1500×2700mm |
Min. feeding size(mm) |
450×650mm |
Paperboard thickness(mm) |
2-13mm |
Thickness of printing plate(mm) |
7.2mm |
Machine wall thickness |
60mm |
Overprint accuracy |
±:0. 5mm |
Main motor powder |
22Kw |
Details:
Functions and features
1 PLC control, convenient and reliable.
2 All drive rollers are high grade steel, plate with the hard chromium, abrade outside.
3 Drive gear adopt 40 Cr high grade alloy steel to grind but becomes and goes through 50 degree of heat treatment Rockwell hardness.
4 The whole machine unit electrical separation, pneumatic locking, pneumatic general locking, sustained bell warning during moving, ensures operation personnel safe.
5 Different start and stop warning rings.
6 Start the machine by both hands, ensures that handling person safe.
7 In front, middle and the end, there are emergency stop buttons.
8 There are different guiding lights for switching-on, standby, moving and abnormal (three-color guiding lights of LED).
9 There are emergency stop buttons in each unit which can stop the moving of the unit inside to ensure the operators safe.
10 Adopting int’l famous brands electric fittings for the whole machine. The complete machine zeroes without exception , wipe printing plate memory and preset function, printing and die-cutting phases zero, pre-adjustment and accurate adjustment, phase adjustment, all above make the whole machine with high accuracy.
11 Upper vacuum suction delivery in printing section makes high accuracy paperboard delivery and no impression on paperboards.
1) feeding section
2)Pringting press roller:
3)
Working Video Available: Feel free to contact us
Finished Machine:
Our Warehouse:
We also sell:
Package and Shipping:
Our Company:
G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.
