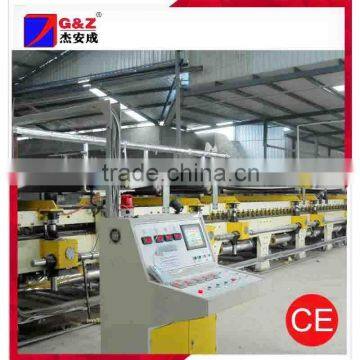

Production Line for Paperboard
Specialist: Equipment List:
No. |
Machine name |
Specification |
Qty |
|
|
1 |
RS-1500HA Hydraulic mill roll stand |
Adopt expand clamp type, single side max load weight: 3000kg, diameter of paper reel: 1500mm |
5sets
|
|
|
2 |
Railing and pulley |
Each Mill roll stand install two railing and pulley, railing length: 6m |
10set |
|
|
3 |
SF-320S Single facer |
Fingerless type, corrugating roll: Φ320mm, made in Beijing package group, the largest corrugating roll manufacturer in north of China. Digital adjust gluing thickness, corrugating roll and pressing roll’s bearing adopt NSK, Japan, Motorized control gluing width, transducer adopt Delta brand, Taiwan. |
2 sets |
|
|
4 |
SD-900 Pre-heater |
Pre-heating roll cylinder diameter: 900mm, Electro motion angle wrapping, wrapping angle: 60—220 degree |
2 sets |
|
|
5 |
SH-900 Pre-conditioner |
Pre-heating roll cylinder diameter: 900mm, Electro motion angle wrapping, wrapping angle: 60—220 degree |
2 set |
|
|
6 |
SH-900 Triplex- pre-heater |
Pre-heating roll cylinder diameter: 900mm, Electro motion angle wrapping, wrapping angle: 60—220 degree |
1 set |
|
|
7 |
BS-T Bridge Conveyor |
Adopt adsorption type, high pressure suction motor automatic correct error running position. |
1 set |
|
|
8 |
GA-288D Double Layer Gluing machine |
Pressing rolls type, gluing roll diameter: 288mm, independent frequency control |
1 set |
|
|
9 |
DF-768 Double Facer |
Adopt round worm gear box type, heating shoes: 12pcs, heating plants surface grinding type, heating plants: 520mm x 18pcs, cotton belt made in Shenyang Fuli |
1 set |
|
|
10 |
Main drive |
Main drive two sides wall plate adopt heavy duty cast wallboard, could be see inner details, oblique gears, long work life. Easy to add lubricate, main drive roll adopt steel type, cast high quality V type rubber, diameter 745mm, low noisy in high speed work. |
1set |
|
|
11 |
Glue making system |
Automatic circle supply glue, save glue. Include main, carrier, storage pot each 1 set, 1set glue station pump and 3 single facer pump, 1 gluing machine pump, Pipeline provided by buyer |
1 set |
|
|
12 |
Electric system |
Whole production line electric part adopt imported product, brand include Simons or Schneider or Omron. Whole line electric voltage: 380V, 50Hz. |
1 set |
|
|
13 |
Pneumatic system |
Made in Airtac, Taiwan |
1 set |
|
|
14 |
Steam system
|
Drain valves made in China. Buyer supply pipelines from boiler to main machine. |
1 set |
|
|
15 |
SJBDY-1600 Slitter scorer |
Adopt 5 blades 8 scorers, whole machine could be do 90mm left-right move, 1mm tungsten carbide alloy steel, long work life, |
1 set |
|
|
16 |
NC-180N Cutoff |
Helix blade type, cut blade made in Jeefeng, Taiwan, computer system could storage many different cutting orders, computer system made in Taiwan. Main bearing made in NSK, Japan, whole machine cutting length: 500-9999mm, cutting precision ±1mm in steady speed, Germany design AC servo motor, Germany Kobe driver, inner spry lubricate oil for gears, low noisy in high speed, two sides with windows could see inner running. |
1 set |
|
|
17 |
CF-150 Sheet delivery |
Single layer type, two section transport carton sheets. Max speed 150m/min type |
1 set |
|
|
Main Technical Parameter of Production Line
Main technical data:
1. Model: WJ150-1600 5ply corrugated carton production line
2. Max work Speed: 150 m/min.
Normal work speed: 120-130m/min
3. Manufacture Width: 1600 mm
b. Surface roll width: 1650mm
4. a. Flute Type: UV type.
b. Flute height:A flute 4.3mm, B flute 2.65mm, C flute 3.65mm, E flute: 1.8mm
5. Steam Pressure: Max 1.6Mpa, normal about 1.2-1.3MPa
6. Steam Consumption: 2900 -3200kg/h (suggest use 4T boiler)
7. Voltage: 380V, 50Hz.
8. (Corrugated paperboard: 150-180g/m2, Corrugated paper: 150--180g/m2, liner paper: 150-180g/m2)
Notes: Quality accords with national B grade above standard, Paper water containing rate: 11%±1.
8. Total installed power: 300KW, normal work use: about 240kw
9. Area that machine requires: 72m×10m x 3.8m(length x width x height)
Some Details:
1) Hydraulic mill roll stand:
2)Single facer
3) Bridge conveyer:
4):Sheet Delivery:
5) Gluing Machine:
6) Double Facer:
Working Video Available: Feel free to contact us
Our Warehouse:
We also sell:
Package and Shipping:
Our Company:
G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.
