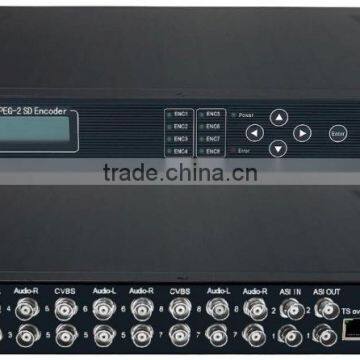

4in1 MPEG-2 Encoder (4AV+ASI in,ASI out)

Input

ASI

TS, DVB standard (multiplexer), BNC interface

Video

4×CVBS, BNC interface

Audio

4 pairs of unbalanced audio, BNC interface

Video

Standard

comply with CCIR601 standard, support 1/2D1, 2/3D1, 3/4D1

Encoding

ISO13818 (MPEG-2)

MPEG-2 coding adopt MP@ML (4:2:0)

MPEG-2 Adaptive Field Frame (AFF)

MPEG-2 Field-Based (FB)

rate control

CBR/VBR

Format

PAL,NTSC

Bitrate

1.0~15Mbps continuously adjustable per channel

Audio

Sampling

32KHz, 44.1KHz, 48KHz

bitrate

64, 128, 192, 256, 384Kbps

Property

comply with ISO11172,MPEG-1 Layer2, 1×stereo or dual-channel

Output

2×ASI

DVB standard, BNC interface

Total Bitrate

1-80mbps

Edit

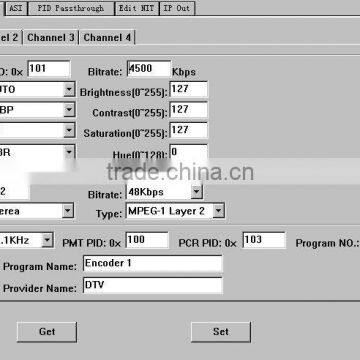

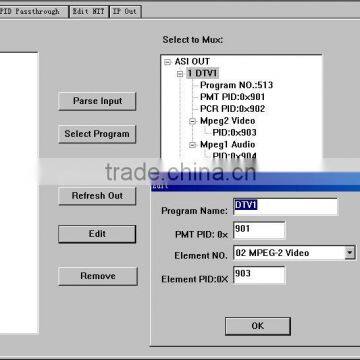

PID value, program name,program number

Control

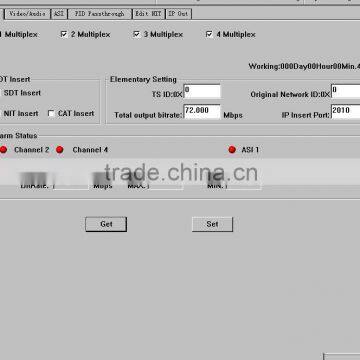

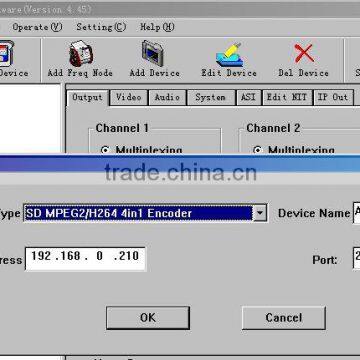

NMS (Ethernet Port), Keyboard + LCD

General Features

Size

482mm×280mm×44mm

Temperature

0~45°C (Operation); -20~80°C (Storage)

Power

220VAC (±10%), 50Hz, 25W
