sc3101 sc-3101 asi scrambler(ASI in and ASI out)
in:asi;out:asi 70mbps
Support 4 DVB SimulCrypt CAS/SMS
4 sets ECMG,EMMG
64 programs encrypted

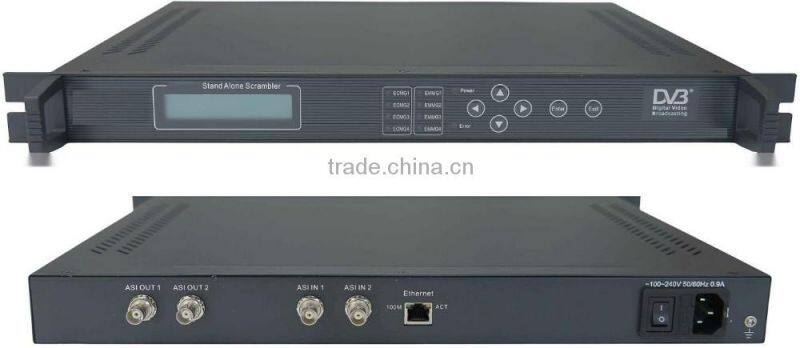

ASI Stand Alone Scrambler
Overview
ASI/TS Stand Alone Scrambler can encrypt input TS stream, and the embedded control word generator can transmit constant or variable control word and scramble the input transport streams. In-built simulcrypt synchronous controller of the scrambler can send control word and access condition to exchange message with ECMG. The scrambler can control CP (crypto period) reasonably when working with CAS (conditional access system), which makes the decoder decrypt control word and descramble transport stream easily and properly.
Technical Specification
Input |
ASI |
DVB standard, BNC interface |
Output |
ASI |
DVB standard, BNC interface |
Bitrate |
1~70Mbps |
|
CAS/SMS |
support 4×CAS/SMS DVB Simulcrypt |
|
Multiplexer |
delete/change programs PCR re-adjustment and correction |
|
Control |
IP remote |
NMS (Ethernet Port, RJ-45) , 10/100m base-TX, |
Front panel |
Keyboard + LCD |
|
|
General Features |
Size |
410mm×280mm×44mm |
Temperature |
0-45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
Order Guide
3101 |
ASI Scrambler (ASI in, ASI out) |
3106 |

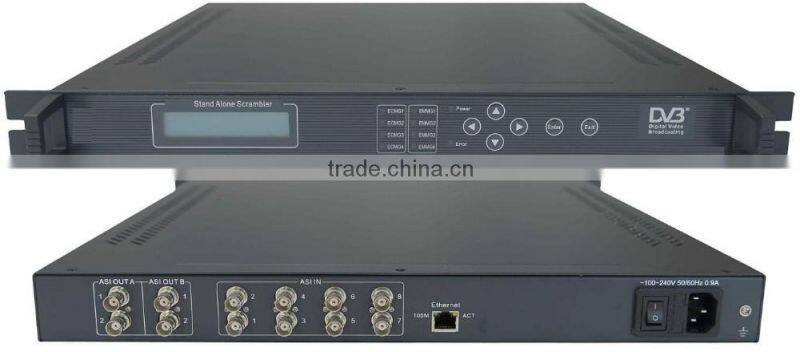

ASI Scrambler Multiplexer(8*ASI in,ASI out)
|

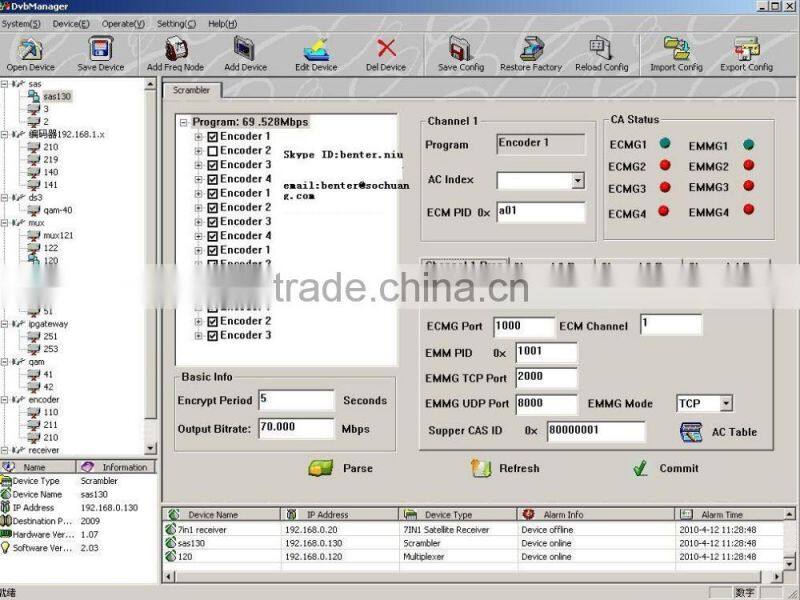

Network Management Software
scrambler(cas ecmg,emmg) setting:
PID passthrough:
Developing :
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
Send Inquiry to This Supplier
