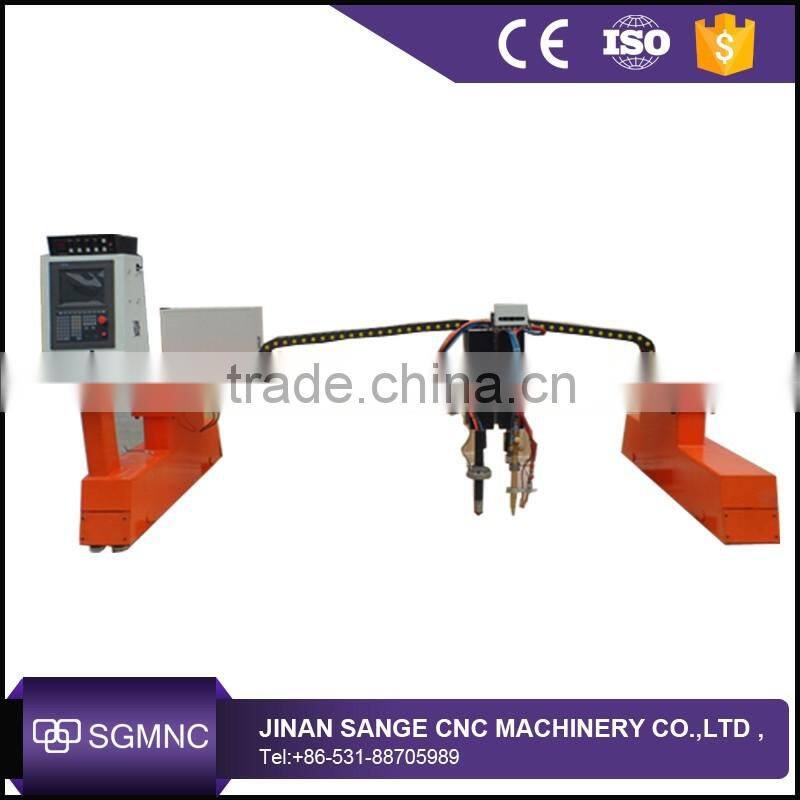

gantry plasma cutting machine /cutting machine plasma prices
Feature:
1.Independent intellectual property control system.
2.The cutting effect has arrived the national level.
3.Super-stability and anti interference ability.
4.Humanized man machine interface, stupid keyboard operation.
5.Flexible USB data transmission interface.
6.Job to run a smooth machine, control and high precision.
Applications
The machine is widely used in steel structure industry. In front of the machine can be equipped with
2pcs flame torch to cut complex drawings, and at the back can be equipped with vertical torch to
cutting straight line on the plate . The structure of the machine is strong and durable multi-function and easy to operate. The machine working performance is very steady,
and with high accuracy
Parameters:
item |
gantry plasma cutting machine |
Size of the machine |
3000*8000(mm) |
Effecttive cutting area |
2000*6000(mm) |
Cutting thickness |
flame: 6~200 (mm). |
Support software |
Type3/Artcut6/Caxa/Auto CAD/Art CAM/Inter GNPS |
Power supply |
AC220V/380V -50HZ |
Cutting accuracy |
±0.5 mm |
Screen |
Chinese /English |
transfer |
USB/SD/RS232 |
Cut seam compensation |
Automatically/Sets up |
Cutting gas |
Oxygen, acetylene, propane, etc |
Cutting torch height adjustment(mm) |
1-150mm |
Flame cutting speed |
50~700mm/min |
Cutting torch lifting distance |
≤200mm |
Linear repeat precision |
±0.5mm/10m |
Environment temperature |
-5~45°C |
Relative humidity |
<95%Without condensation |
Peripheral environment |
Ventilated, no big impact |
Hypertherm 100A plasma power supply |
optional |
optional configurations:
1.Japan Panasonic servo motor and driver
2. START control system with torch height controler
3. air compressor
4. HYPERTHERM or THERMADYNE plasma power supply

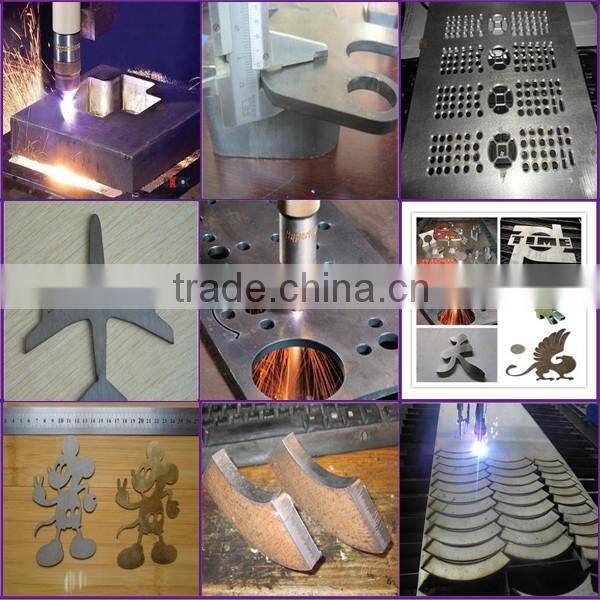

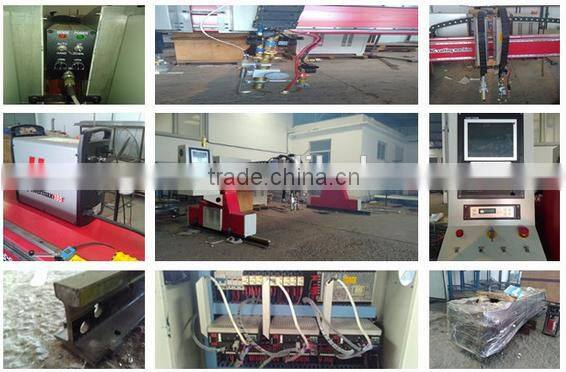

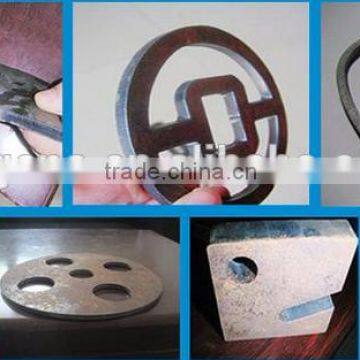

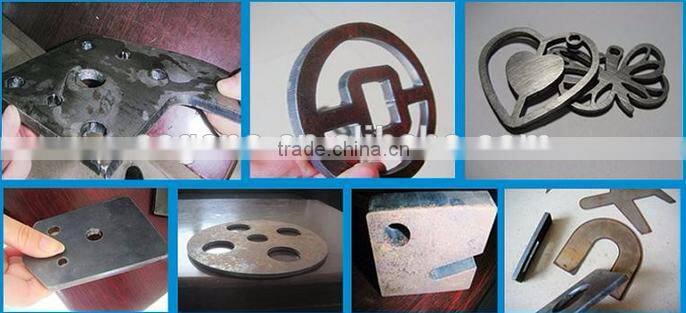

Machine and sample show
