Overview
DVB-C HD Set-Top-Box adopts national chip hardware platform and integrates SoChuang CAS (Conditional Access System). It fully meets DVB-C MPEG-2/MPEG-4 AVC/H.264 standard, supporting over air and serial port upgrade and multiple program-searching, including NIT. It can support maximum 1920×1080p video format. EPG, Channel Management, Smart Work Time Setting and other applications can work on the hardware platform with safety, reliability, speediness and effectiveness. Besides it provides USB electronic photo album and PVR video recording, and built-in lots of puzzle games to make you enjoy a better entertainment life.

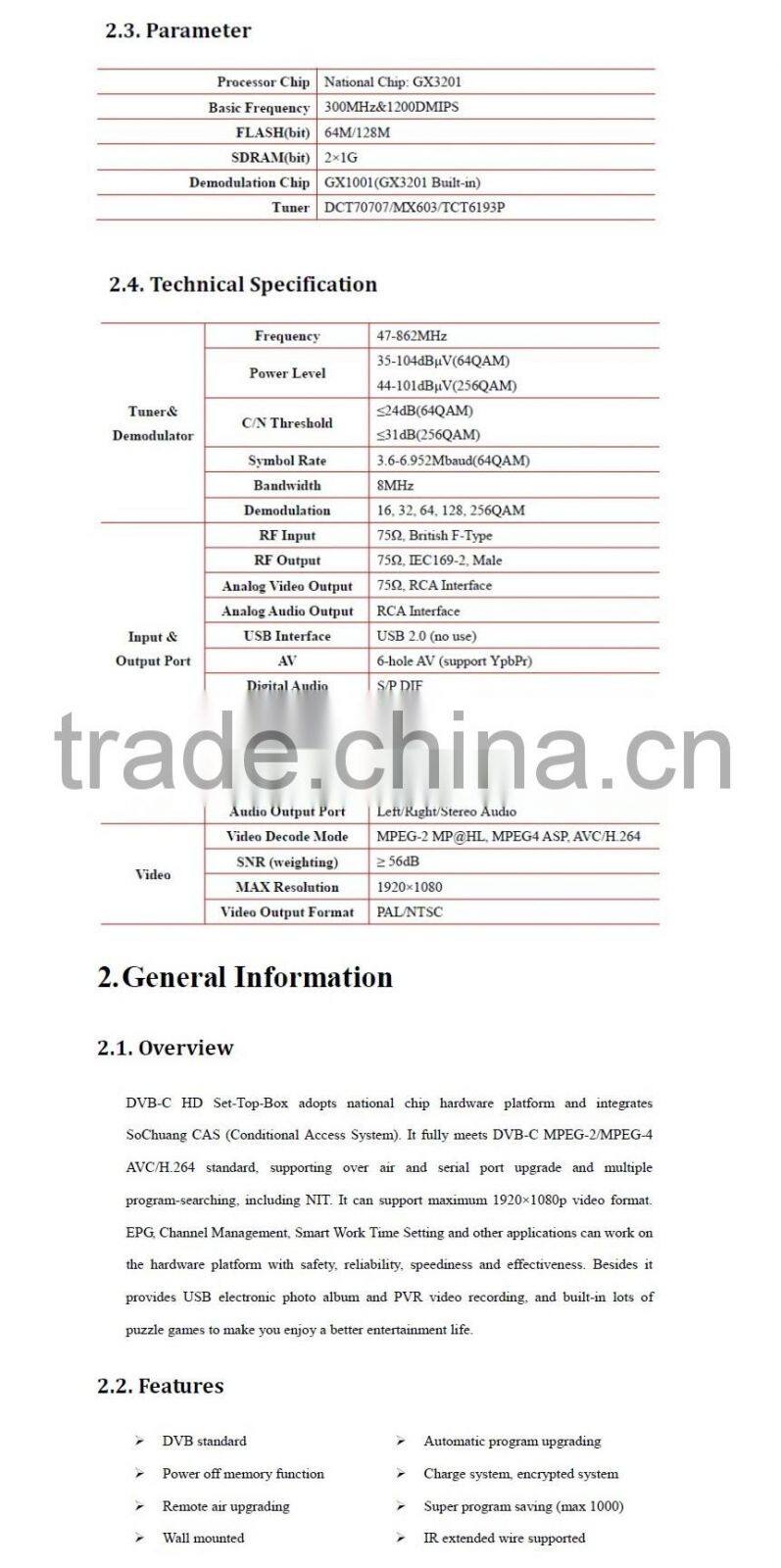

Parameter Configuration
Processor Chip | National Chip: GX3201 |
Basic Frequency | 300MHz&1200DMIPS |
FLASH(bit) | 64M/128M |
SDRAM(bit) | 2×1G |
Demodulation Chip | GX1001(GX3201 Built-in) |
Tuner | DCT70707/MX603/TCT6193P |
Technical Specification
Tuner& Demodulator | Frequency | 47-862MHz |
Power Level | 35-104dBμV(64QAM) 44-101dBμV(256QAM) | |
C/N Threshold | ≤24dB(64QAM) ≤31dB(256QAM) | |
Symbol Rate | 3.6-6.952Mbaud(64QAM) | |
Bandwidth | 8MHz | |
Demodulation | 16, 32, 64, 128, 256QAM | |
Input & Output Port | RF Input | 75Ω, British F-Type |
RF Output | 75Ω, IEC169-2, Male | |
Analog Video Output | 75Ω, RCA Interface | |
Analog Audio Output | RCA Interface | |
USB Interface | USB 2.0 (no use) | |
AV | 6-hole AV (support YpbPr) | |
Digital Audio | S/P DIF | |
HDMI Output | Support HDCP | |
RS232 Serial Port | DB-9, Female | |
Other Input Port | RJ45 Network Interface (no use) | |
Audio | Audio Decode Mode | MPEG L1/L2, HE-AAC V1 Dolby-AC3 |
Audio Output Port | Left/Right/Stereo Audio | |
Video | Video Decode Mode | MPEG-2 MP@HL, MPEG4 ASP, AVC/H.264 |
SNR (weighting) | ≥ 56dB | |
MAX Resolution | 1920×1080 | |
Video Output Format | PAL/NTSC |
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
