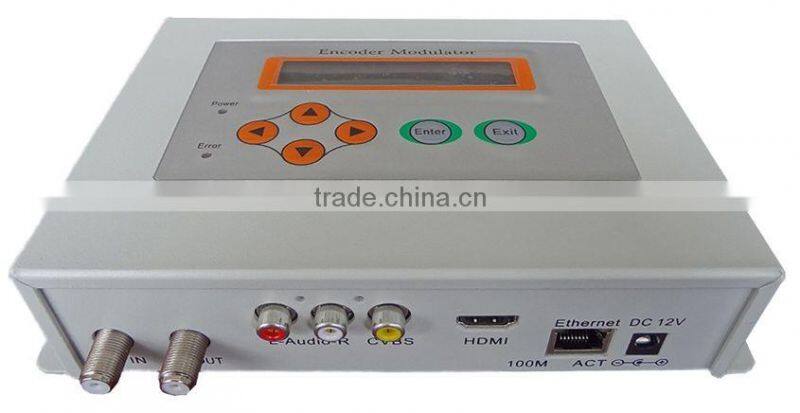

HDMI HD DVB-C Modulator
Overview
HD DVB-C Modulator supports 1×CVBS, 1 pair of unbalanced audio and 1×HDMI input and 1×RF output. After coded and modulated, the input signal can be directly output or mixed output with original TV signal.
Technical Specification
Video | HDMI: HDMI 1.3, support 1080p | CVBS: RCA interface |
Bit Rate:1.0~15Mbps | Video Code: MPEG-4 AVC/H.264 | |
Resolution | HD: 1920×1080-60/50-P/I, 1280×720-60/50P, | |
SD: 720x576 (PAL), 720x480 (NTSC) | ||
Audio | Audio Code: MPEG-1 Layer 2 | Sampling: 32KHz, 44.1KHz, 48KHz |
Bit Rate: 64, 128, 192, 256, 384Kbps | ||
Audio: analog stereo/mono (RCA interface) and HDMI embedded audio | ||
DVB-C Modulation | Standard: DVB-C (J.83A) | Frequency Range: 47~870Mhz |
Output Level: 85~105dB | Symbol Rate: 5~9Mbaud/s | |
MER: ≥40dB | BER: 0 | |
Constellation: 16, 32, 64, 128, 256 QAM | Level Attenuation Range: 0~30dB (0.5dB step) | |
General Features | Size | 210mm×135mm×45mm |
Temperature Range | 0~45°C (Operation); -20~80°C (Storage) | |
Power | 100-240VAC, 50Hz, 25W | |
Order Guide
4141 | HD H.264 Encoder modulator(AV/HDMI IN,DVB-C RF out) |
4204 | 4IN1 H.264 HDMI encoder DVB-C Modulator(4HDMI in,DVB-C out) |
4217 | 8AV MPEG-2 DVB-C Modulator with scrambler(8AV+IP in,DVB-C out) |
Network Management Software

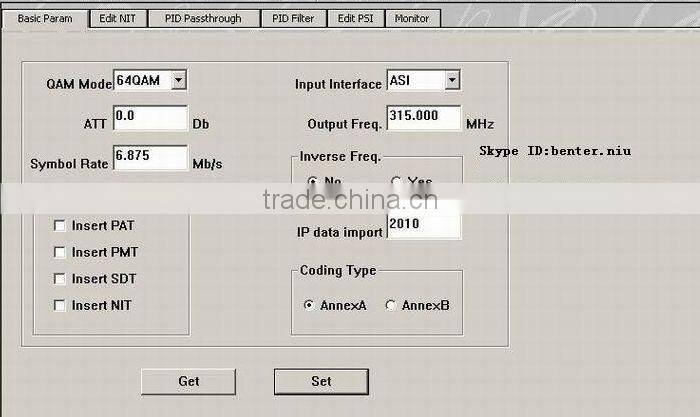

DVB-c qam modulator :

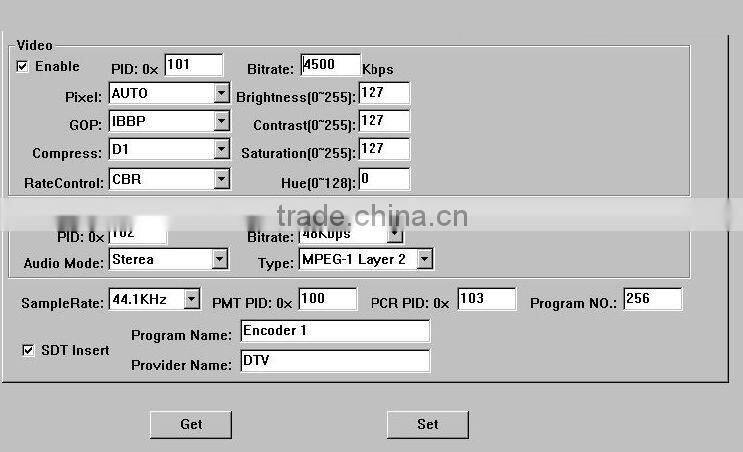

Encoding setting:

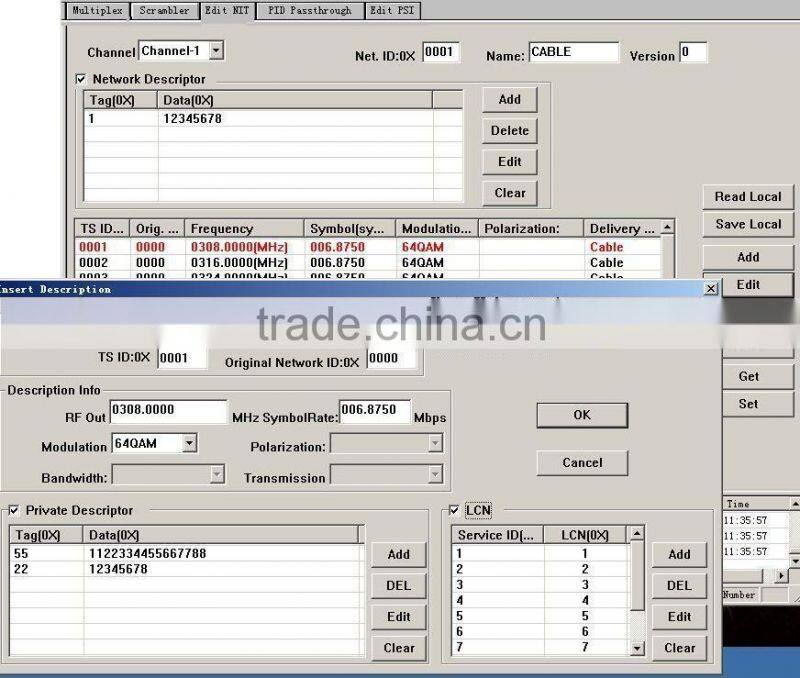

NIT setting(LCN):
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
