4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out)

Chengdu Sochuang Electronics Co., Ltd.
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) thumbnail-1
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) thumbnail-2
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) thumbnail-3
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) thumbnail-4
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) thumbnail-5
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) thumbnail-6
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) photo-1
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) photo-2
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) photo-3
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) photo-4
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) photo-5
4in1 Dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF In,4 CI,4 ASI+IP 32 SPTS Multicast UDP Out) photo-6
US$ 1 - 680 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
SoChuang
Model Number:
SC5219
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name SoChuang
Model Number SC5219

4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)
in:4 DVB-S/S2 RF
out:4 ASI+32SPTS
4 CI slot CAM(smit,powercam,scm,smardtv)









4in1 DVB-S/S2 to ASI/IP IRD with 4*CI

4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)

Overview

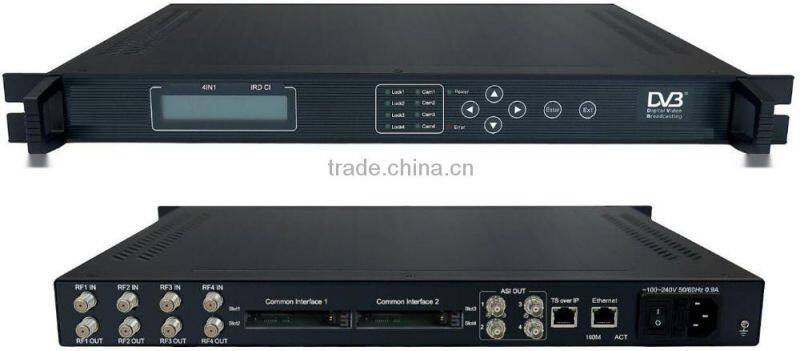

DVB-S/S2 4in1 IRD with CI supports 4xDVB-S/S2 RF input. It has 4×CI interfaces and supports multi-type of CAM cards. It can output 4×ASI and IP (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling.

Technical Specification

Input

F-head

4xDVB-S/S2(950-2150MHz) Tuners

CI

4*CI Slot, CAM card per Tuner

Output

4×ASI

DVB standard, 4xBNC interface

IP(TS over UDP)

5217: 4xMPTS Multicast,7xTS,

1000M/gigabit IP port

5219: 32*SPTS Multicast,7xTS,

1000M/gigabit IP port

Control

IP remote

NMS (Ethernet Port, RJ-45),

10/100m base-TX,

Front panel

Keyboard + LCD

General Features

Size

482mm×410mm×44mm

Temperature

0~45°C(Operation); -20~80°C(Storage)

Power

100-240VAC, 50Hz, 25W

Order Guide

5217

4in1 DVB-S/S2 MPTS CI IRD(DisEqc/22KHz,

4 DVB-S/S2 RF in,4*CI,4 ASI+IP/4*MPTS out)

5219

4in1 DVB-S/S2 SPTS CI IRD(DisEqc/22KHz,

4 DVB-S/S2 RF in,4*CI,4 ASI+IP/32*SPTS out)










Network Management Software

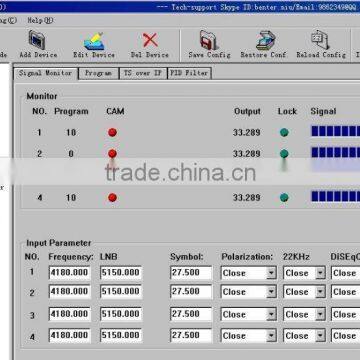

Satellite frequency input:

4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)

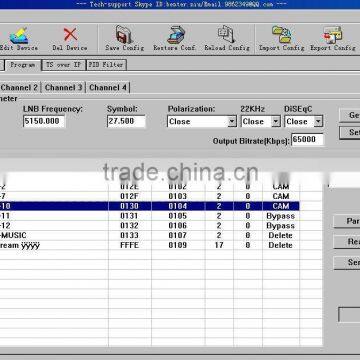

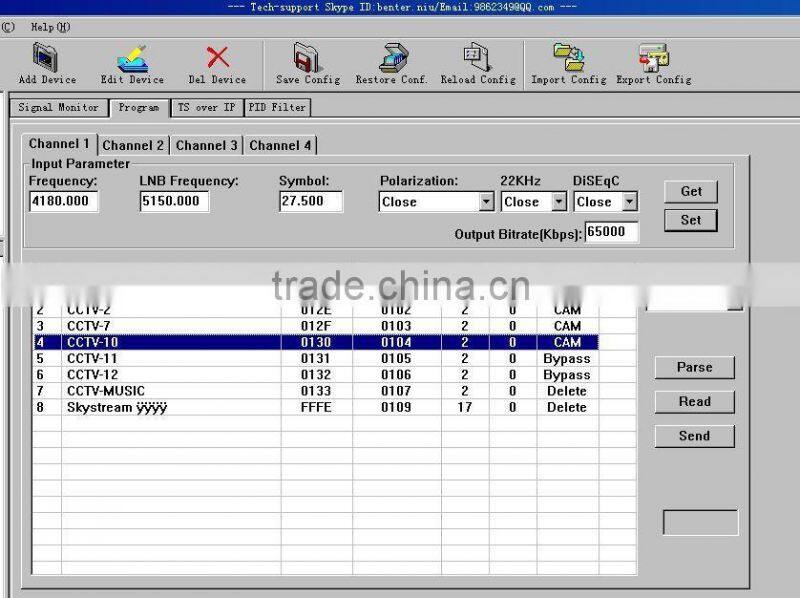

channels output setting:

4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)

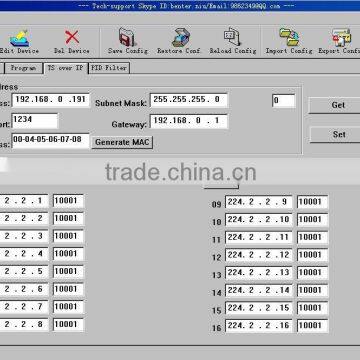

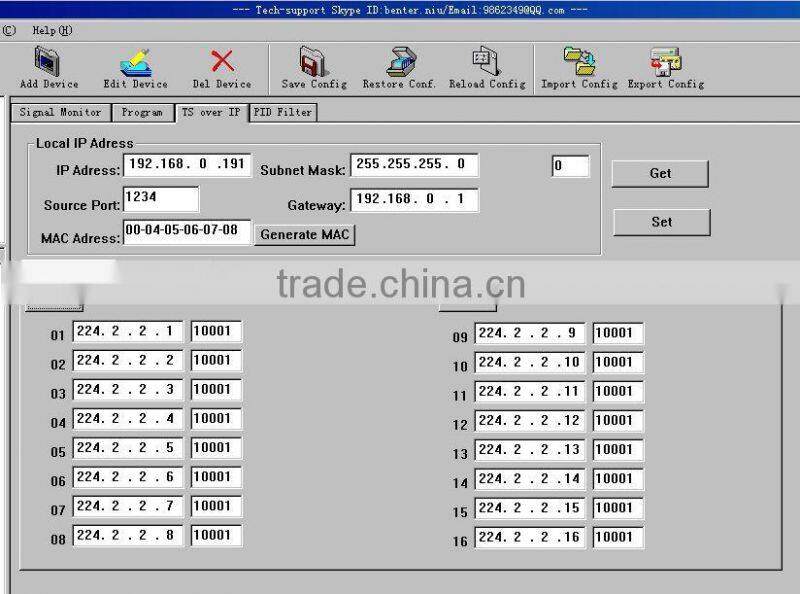

ts over ip output setting:

4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)

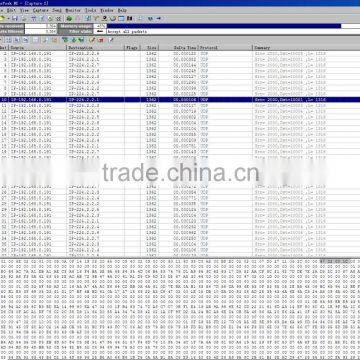

TS over UDP:

4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)








Assembling :

4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)



  Packing:



4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)





Stocking:

4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)





Company information:                                                   4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)



 4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)





Certificate&Exhibition:

4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)



 4in1 dvb s2 CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)
