4in1 dvb s CI SPTS IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)
in:4 DVB-S/S2 RF
out:4 ASI+32SPTS
4 CI slot CAM(smit,powercam,scm,smardtv)
4in1 DVB-S/S2 to ASI/IP IRD with 4*CI
Overview
DVB-S/S2 4in1 IRD with CI supports 4xDVB-S/S2 RF input. It has 4×CI interfaces and supports multi-type of CAM cards. It can output 4×ASI and IP (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling.
Technical Specification
Input |
F-head |
4xDVB-S/S2(950-2150MHz) Tuners |
CI |
4*CI Slot, CAM card per Tuner |
|
Output |
4×ASI |
DVB standard, 4xBNC interface |
IP(TS over UDP) |
5217: 4xMPTS Multicast,7xTS, 1000M/gigabit IP port |
|
|
5219: 32*SPTS Multicast,7xTS, 1000M/gigabit IP port | ||
Control |
IP remote |
NMS (Ethernet Port, RJ-45), 10/100m base-TX, |
Front panel |
Keyboard + LCD |
|
General Features |
Size |
482mm×410mm×44mm |
Temperature |
0~45°C(Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
Order Guide
5217 |
4in1 DVB-S/S2 MPTS CI IRD(DisEqc/22KHz, 4 DVB-S/S2 RF in,4*CI,4 ASI+IP/4*MPTS out) |
5219 |
4in1 DVB-S/S2 SPTS CI IRD(DisEqc/22KHz, 4 DVB-S/S2 RF in,4*CI,4 ASI+IP/32*SPTS out) |

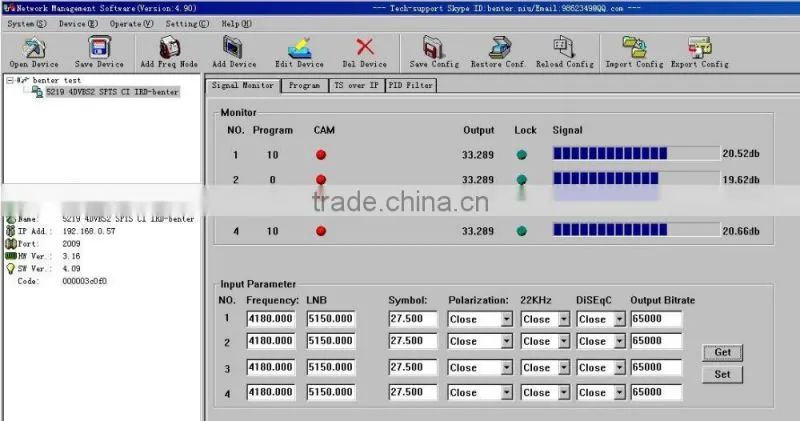

Network Management Software

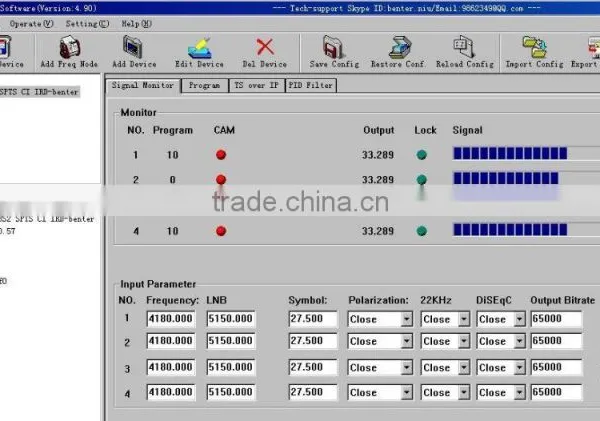

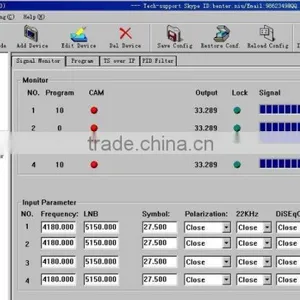

Satellite frequency input:

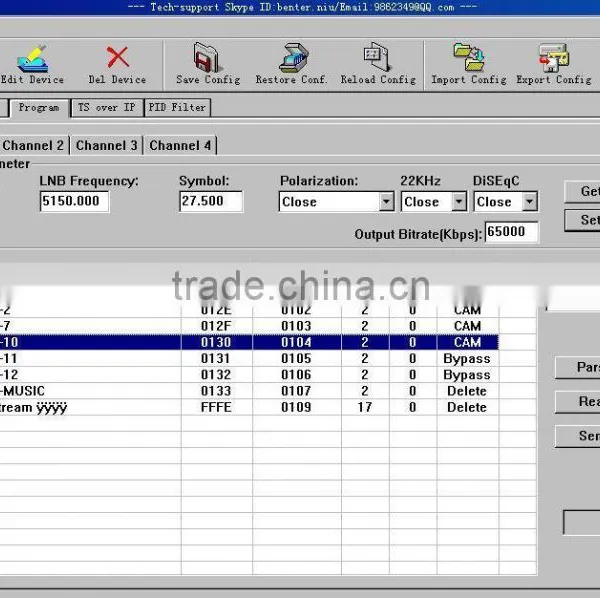

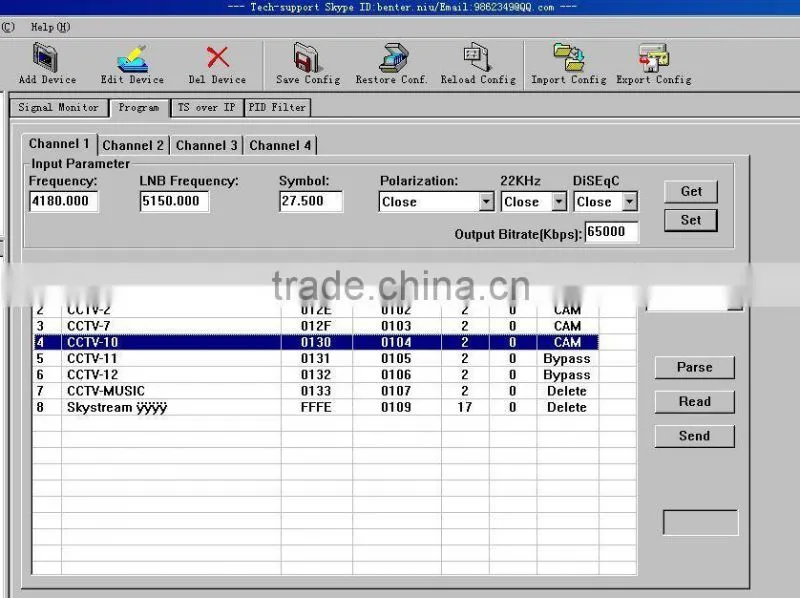

channels output setting:

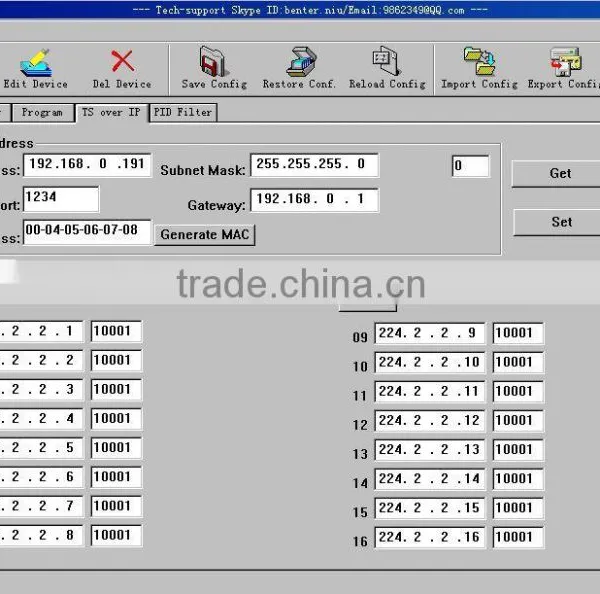

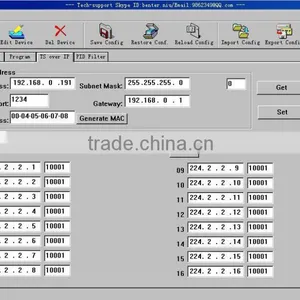

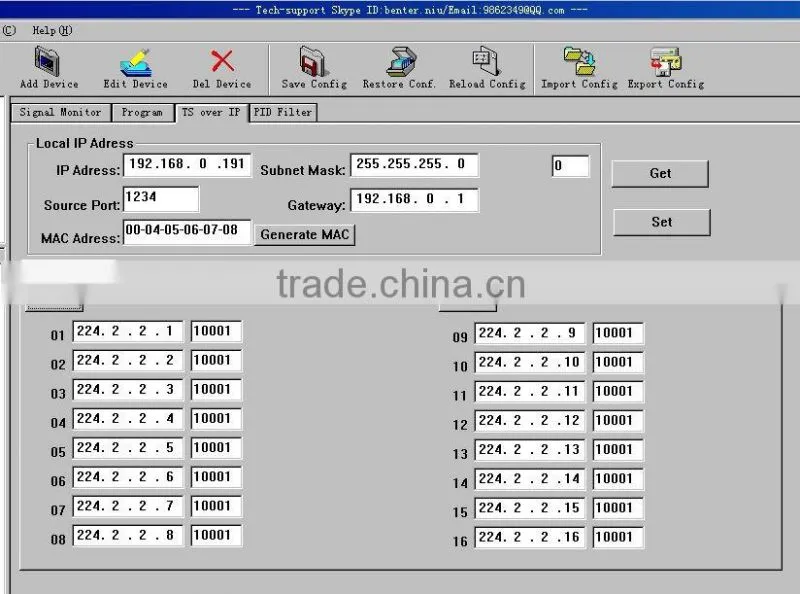

ts over ip output setting:
TS over UDP:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
