TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT)

TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) thumbnail-1
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) thumbnail-2
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) thumbnail-3
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) thumbnail-4
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) thumbnail-5
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) thumbnail-6
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) photo-1
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) photo-2
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) photo-3
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) photo-4
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) photo-5
TS Multipexer 2 Output MPTS (8 ASI IN,2-separate ASI OUT) photo-6
US$ 1 - 530 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Sochuang
Model Number:
SC2102
Contact Supplier Request Quote Chat Now
Chengdu Sochuang Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name Sochuang
Model Number SC2102

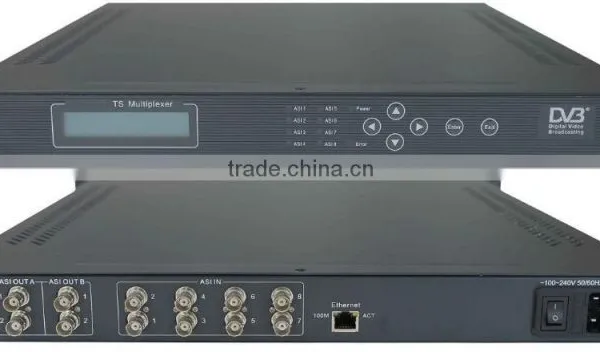

2-OUT 8*ASI TS Multiplexer



Overview

2-OUT 8*ASI multiplexer has 8 ASI input (bitrate can reach up to 270Mbps), 2 pairs of ASI (A&B) output (bitrate can reach up to 108 Mbps), and 1 Ethernet port for network controlling.

Technical Specification

Input

8 ASI

BNC interface

Bandwidth

Backplane 800mbps

Packet Format

188/204, automatic detection

Output

Re-Multiplexing

MPEG-2 transport stream re-multiplexing

PID re-mapping (auto or manual)

PCR Correction

Automatically generate PSI/SI tables

PSI/SI Edit

PID Range

0x0000-0x1FFF

BNC port

2 groups, 2 ASI(1 as mirror) output per group

Control

IP remote

NMS (Ethernet Port, RJ-45)

Front panel

Keyboard + LCD

General Features

Size

482mm×280mm×44mm

Temperature

0~45 (Operation); -20~80 (Storage)

Power

220VAC ±10%, 50Hz, 25W

Order Guide

2101

ASI/TS Multiplexer (8×ASI in, ASI(4 BNC Port) out)

2102

2-Output ASI/TS Multiplexer (8×ASI in, 2×Group (each 2×ASI) out)

3106

ASI Scrambler Multiplexer(8*ASI in,ASI out)

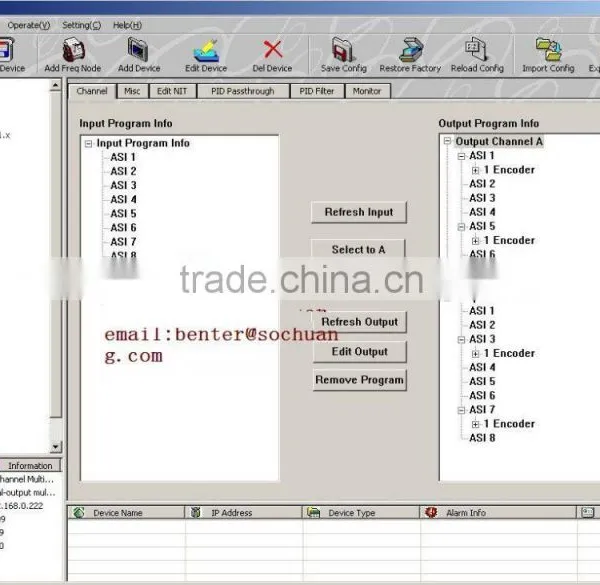

 Network Management Software

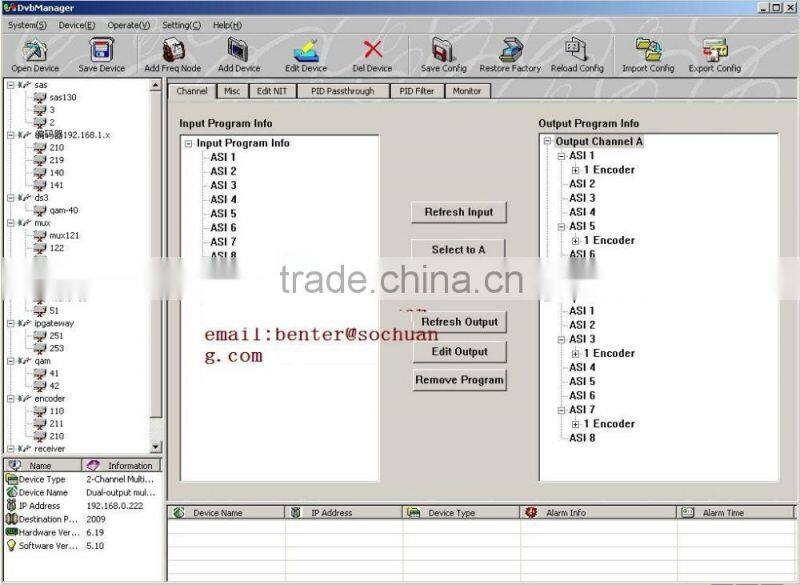

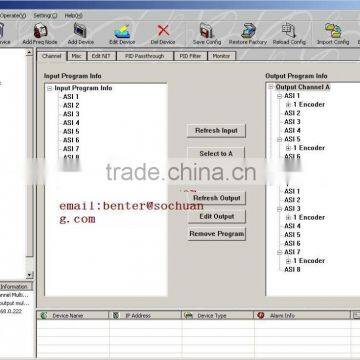

programs multiplexer: TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)

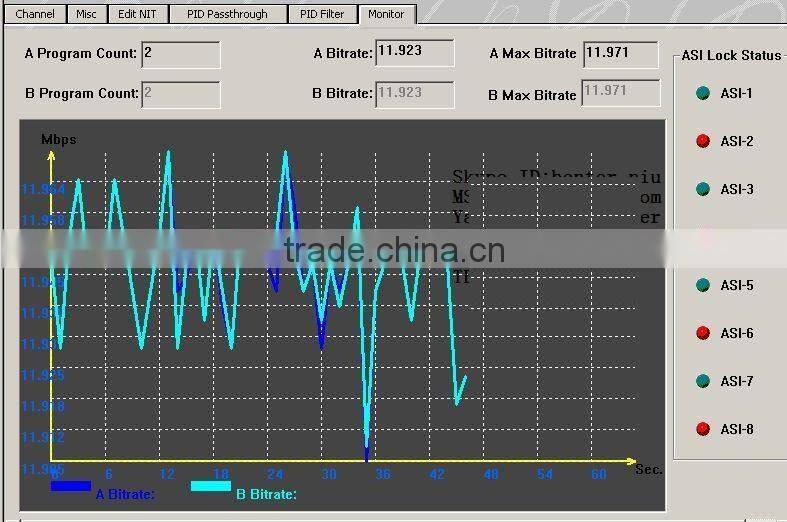

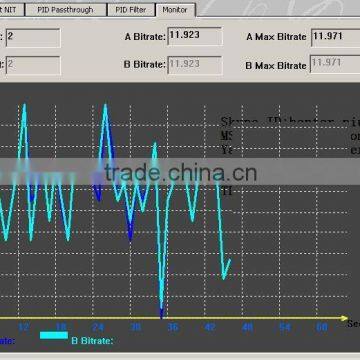

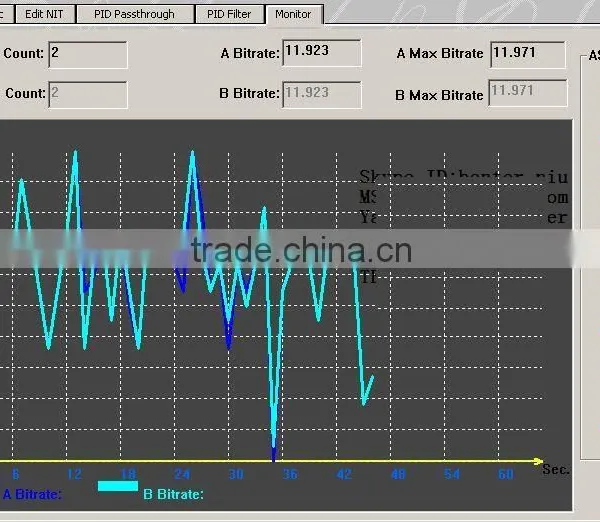

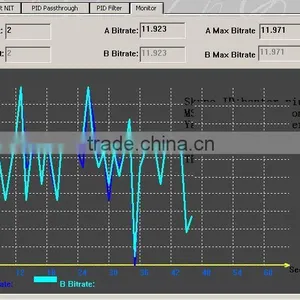

signal monitor:

TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)

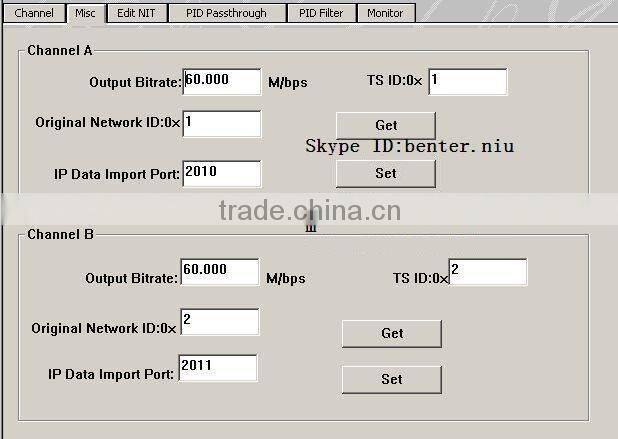

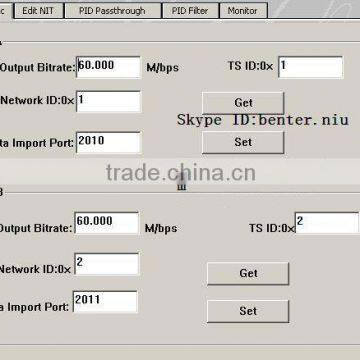

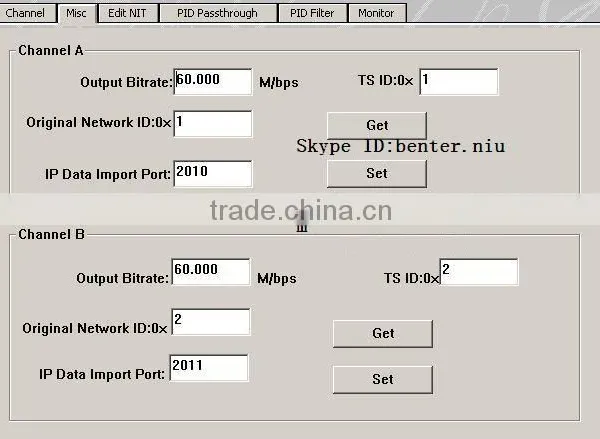

output setting:

TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)

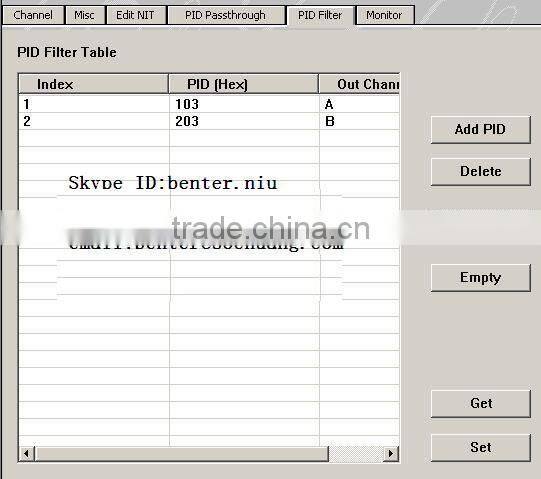

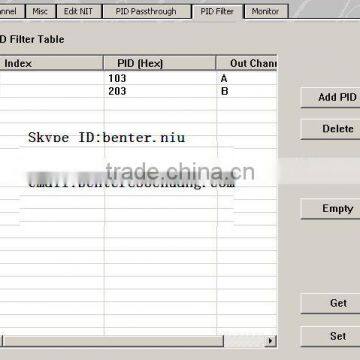

PID filter:

TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)

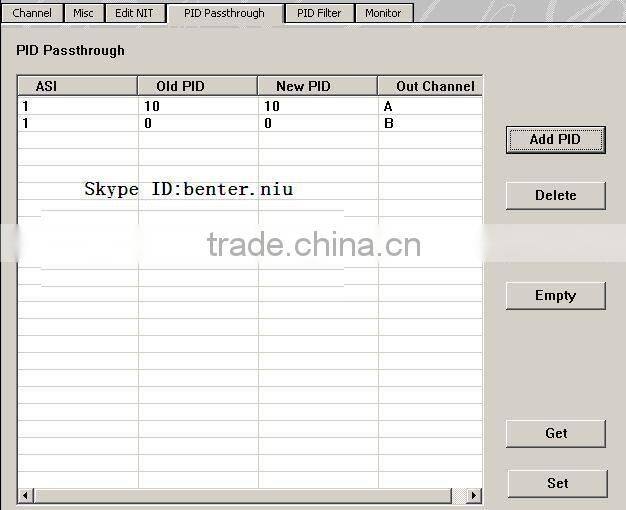

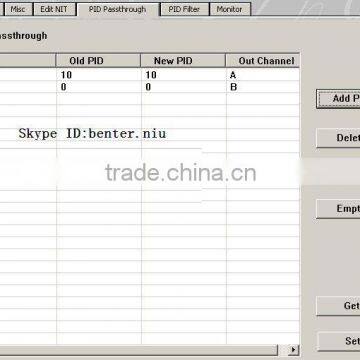

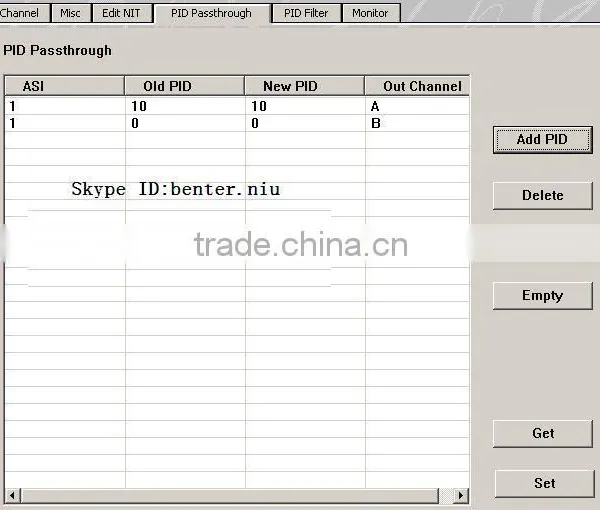

PID passthrough:

 TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)

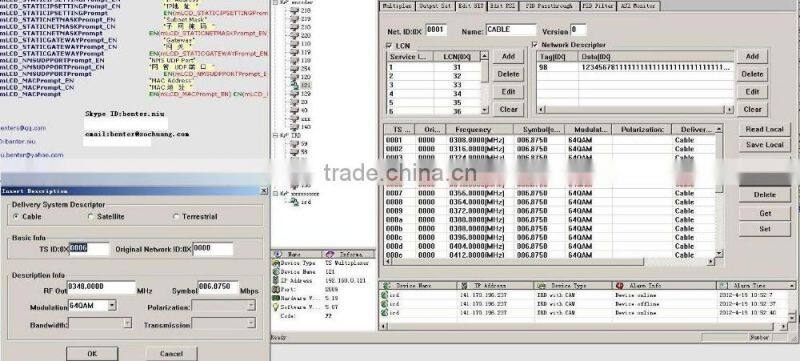

NIT edit:

TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)







Developing :

TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)



Assembling :

TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)



Packing:

TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)





Stocking:

TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)





Company information:                                         TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)



 TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)



Certificate&Exhibition:



TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)



 TS Multipexer 2 output MPTS (8 ASI IN,2-separate ASI OUT)
