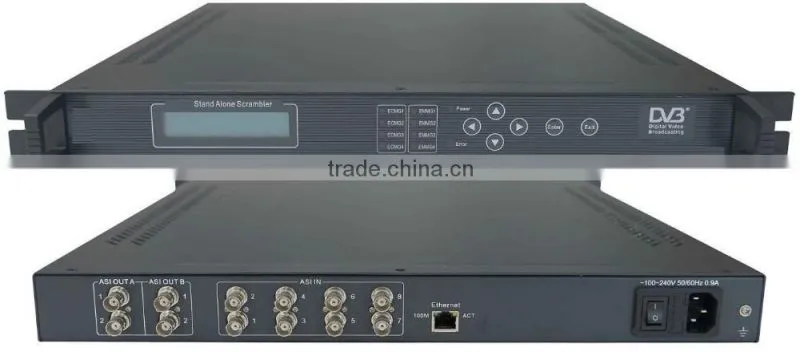

CAS ASI Scrambler Multiplexer(8*ASI in,ASI out)

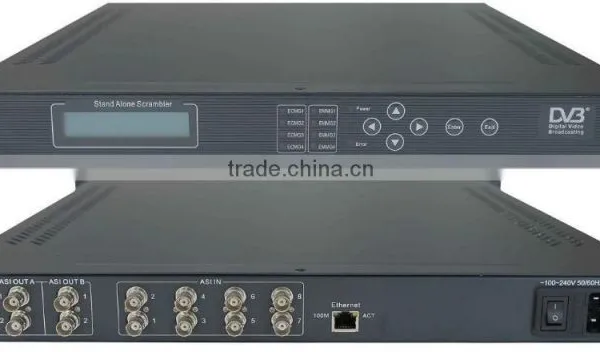

8*ASI Multiplexer Scrambler
Overview
8*ASI Multiplexer Scrambler is a cost effective and high-integrated multiplexer and scrambler, supporting 8*ASI input and ASI output. It supports 4×CAS/SMS simulcrypt. It suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Technical Specifications
Input |
ASI |
8*ASI,BNC Interface |
Output |
ASI |
DVB standard, BNC interface |
Multiplexer |
from the input 8 ASI PID filter and PID re-mapping PSI/SI edit and NIT table inserts PCR re-adjustment and correction |
|
Scrambler |
support 4×CAS/SMS; head-end implementation of DVB simulcrypt (ETSI TS 103 197 V1.4.1) |
|
Control |
IP remote |
NMS (Ethernet Port, RJ-45) , 10/100m base-TX, |
Front panel |
Keyboard + LCD |
|
General Features |
Size |
410mm×280mm×44mm |
Temperature |
0~45°C(Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
Order Guide
3106 |
8*ASI in, ASI out |

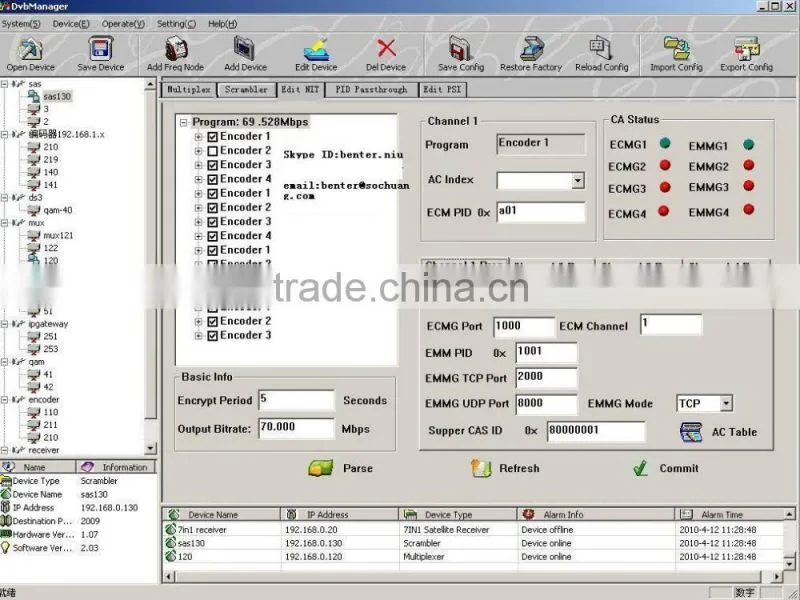

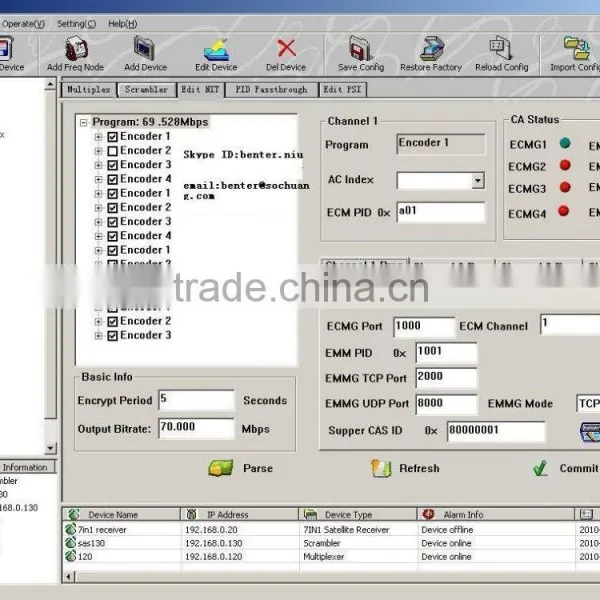

Network Management Software

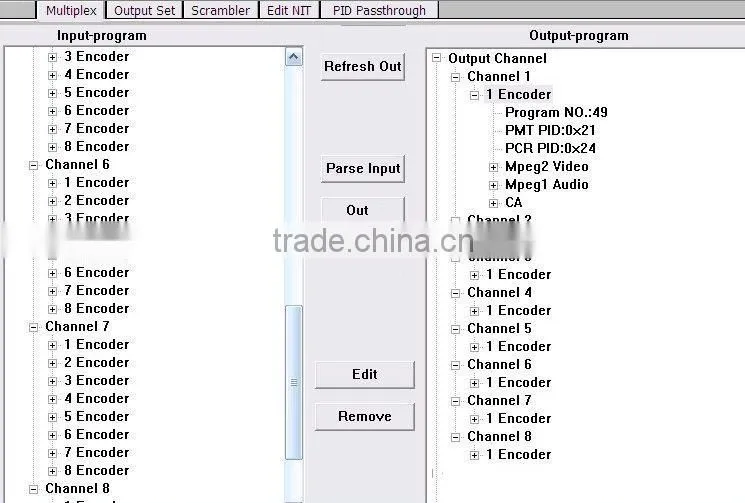

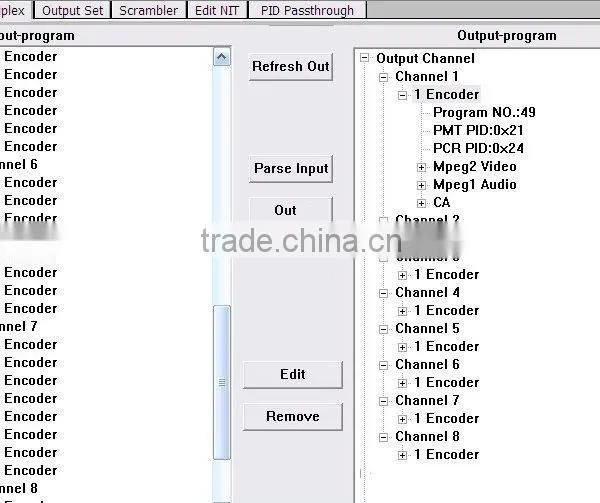

program multiplexer:

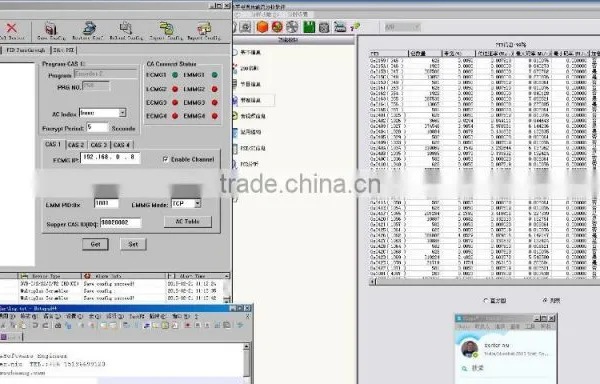

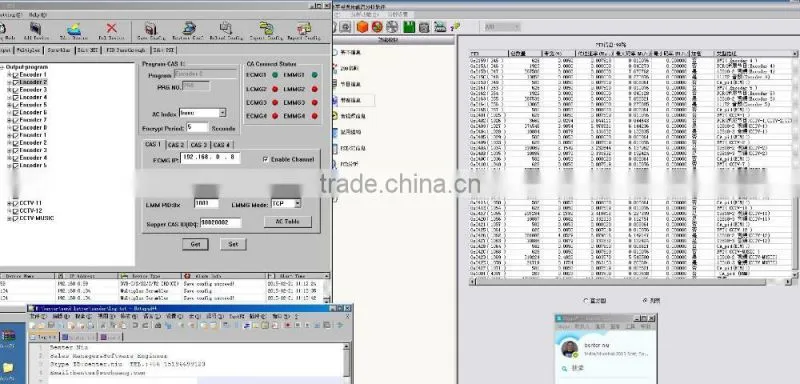

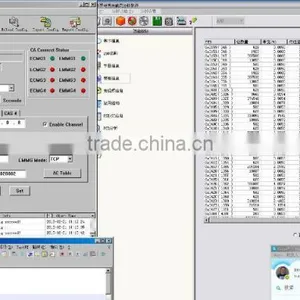

Program scrambler:

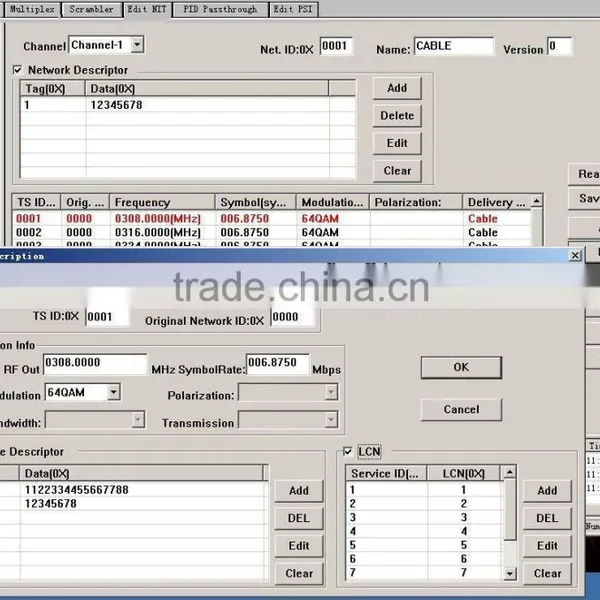

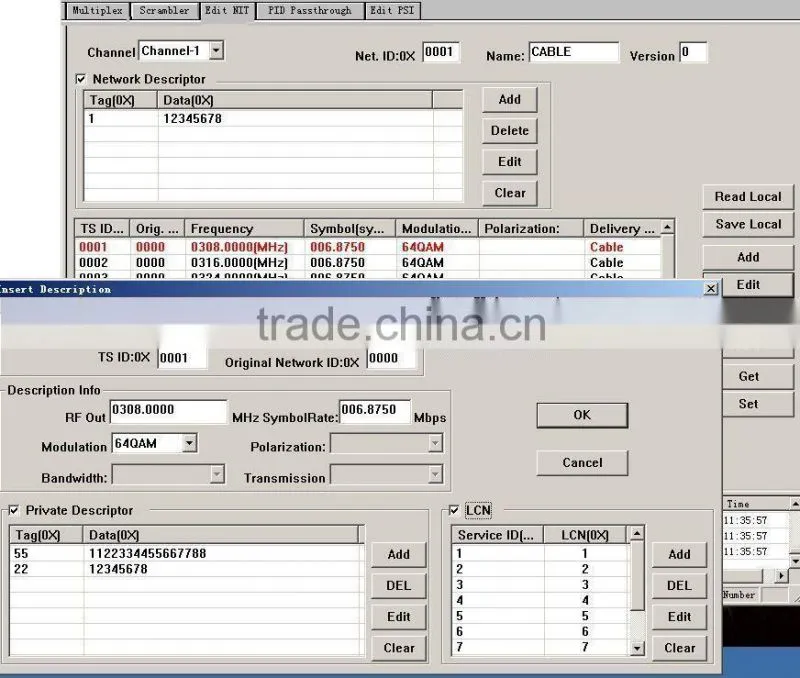

NIT edit/insert :
Developing :
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
