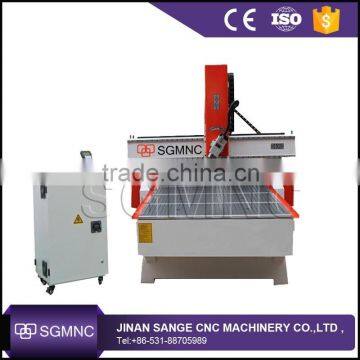

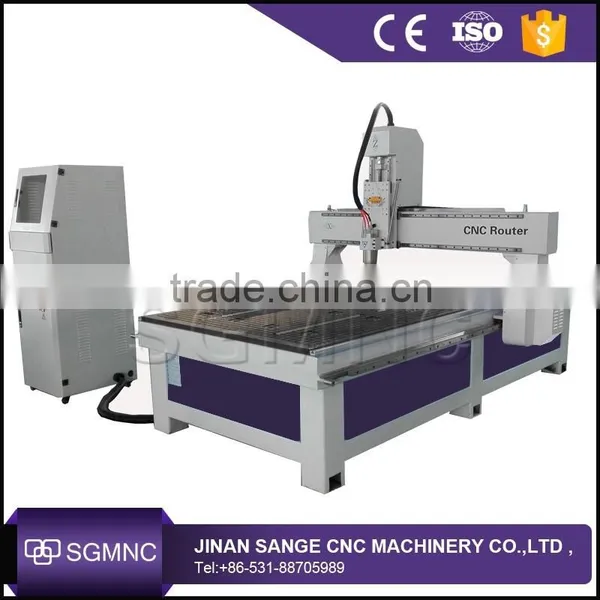

Cnc machines manufacturing automatic woodworking machine stepper motor cnc router
Machine Features :
1,Using the thicker square tube lathe bed, have strong bearing,can carve heavy coffin,have high-speed machine operation,while strong, stable, jitter-free and high precision
2,X, Z-axis adopt dust enclosed structure, effectively keeping imported guide rail and rack cleanliness, reduce mechanical failure rate, improve machine efficiency and precision.
3,Adopting steel gantry, steel stand column, widening the machine head, all steel lathe bed frame, the overall structure is stable and durable.
4,Imported linear square guide rails,double row four columns ball slider,high loading capacity, smooth operation, high precision and long life;high precision imported ball screw, the accurate plunge cut.
5,High-speed servo motor and drive, Y-axis adopt big power twin moter drive, imported high-precision rack drive, the empty load speed is up to 40 m/min or more;hardwood coffin relief processing speed is up to 20 m / min or more.
Parameters | |
Description |
Parameter |
Models |
1325 single head/1325double head/1625 double head 1725 double head/1825 double head/1825 three-heads |
Working Area (X*Y) |
1300*2500mm / 1600*2500mm /1700*2500mm / 1800*2500mm (Other size can be customized) |
Working Area (Z) |
230mm(option:260 mm /300 mm /350 mm) |
Max Moving Speed |
40m/min |
Max Engraving Speed |
20m/min |
Positioning Accuracy |
0.05mm |
Hold mode |
aluminium profile Clamp |
Option system |
Dust collector system, dust cover |
Spindle Speed |
0-6000-18000-24000rpm/min |
Spindle Power |
3.7kw air cooling (option: 2.2/3.2kw water cooling, 3.0kw air cooling) |
Tool Diameter |
2--12.7mm |
Transmission |
X,Y Axis High Precision Rack Gears, Z Axis Ball Screw |
X,Y,Z Guide rail |
Linear Square Guide Rail from Taiwan |
Control System |
Dimensional macro card computer control system (option:DSP controller) |
Driving |
servo motor/stepper motor(Option: Japan Servo Motor) |
Software |
Ucancam/MasterCAM/Type3/UG/AutoCAD /ArtCAM/Pro/E/JDpaint(Origional version) |
Command |
G Code (plt, mmg, uoo, bmp) |
Voltage |
AC380V/220V |
Gross Weight |
1800KG |
Net Weight |
1500KG |

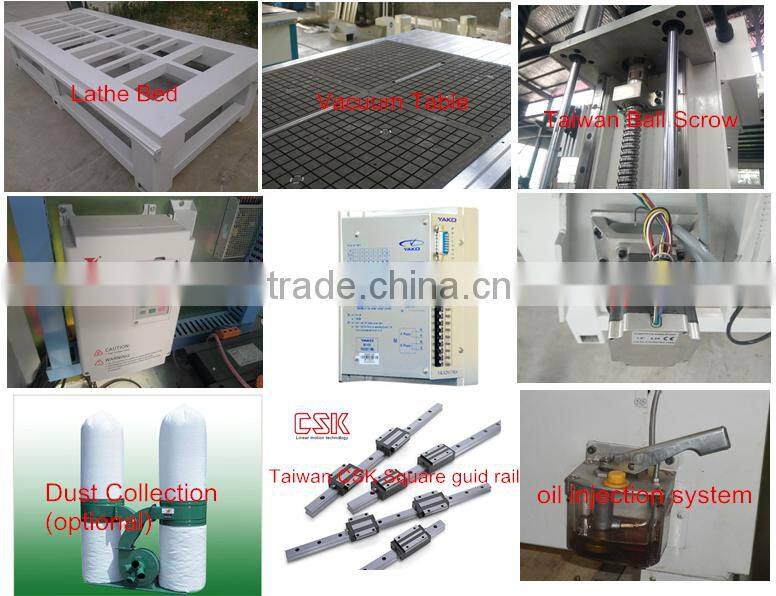

Mahcine accessories:

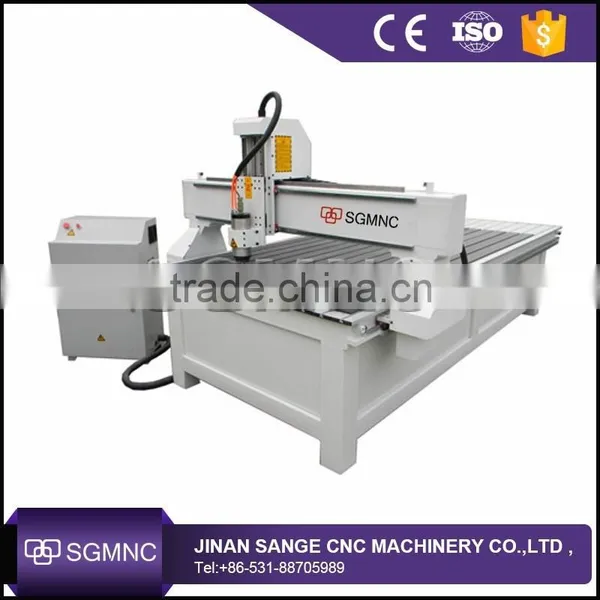

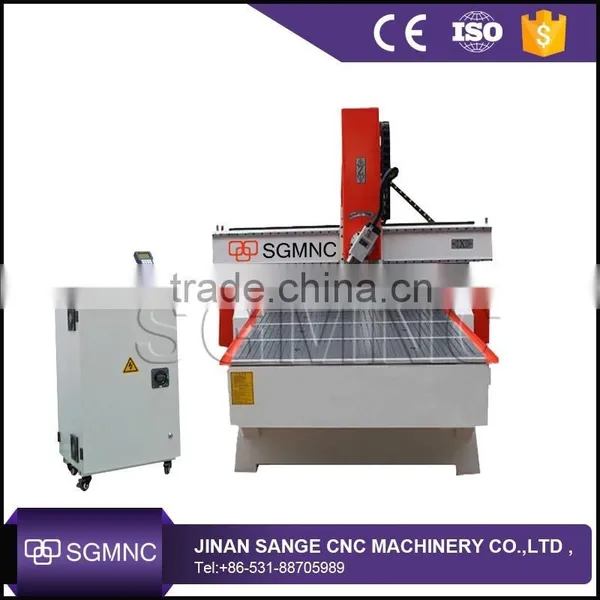

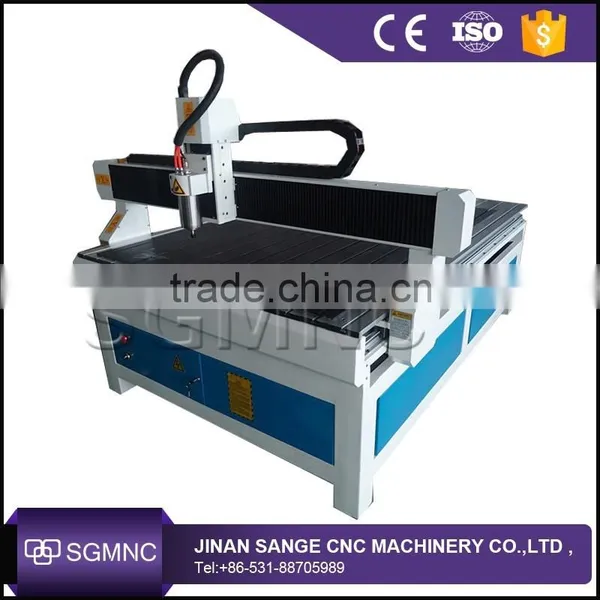

Sample pictures:
Clients' feedbacks:
