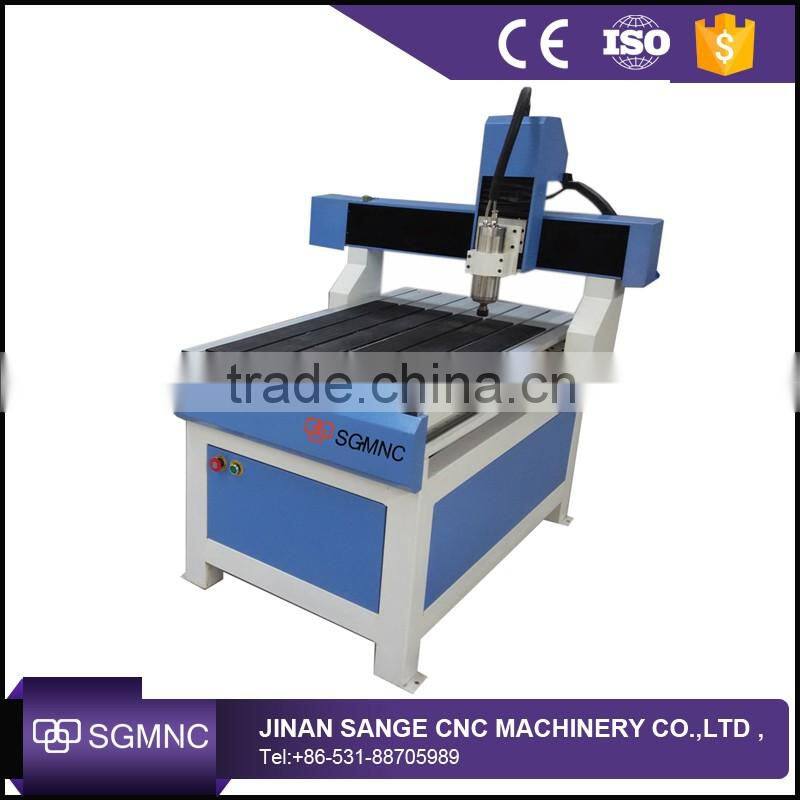

6090 1.5kw spindle cnc engraving machine cnc router kits for sale
Technicial Parameter
Model |
SG-6090 |
X,Y,Z travel( mm) |
600*900*150mm |
Body structure |
Whole iron cast body |
Spindle |
1.5KW HQD water cooling spindle |
Spindle rotation speed |
0-24000RPM |
Max. Rapid Travel Rate |
9000mm/min |
Max. Working Speed |
6000mm/min |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
X,Y,Z Repositioning Accuracy |
±0.01mm |
Table Surface |
T-slot working table |
Transmission |
Taiwan TBI Ball Screw |
X/y axis movement |
Heavy Round guide rail |
Motor drivers |
Stepper motor and drivers |
Inverter |
Fuling inverter |
Controlling system |
Mach3 control |
Software |
Artcam/Type 3/CAD/CAM ect |
Working Voltage |
220/380V as customized |
Main Parts
1. Whole machine is welded with seamless steel structure, with aging treatment.
2.Adopt Taiwan HIWIN high precision linear orbit. X and Y axes adopt rack and pinion transmission, fast working, high efficiency . Z axis adopts Germany and Taiwan ball screw,with high precision and long life time.
3. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
4. The function of re-carving after break point and power failure. Has the function of forecasting process time.
5.Can choose updated DSP / Mach 3 or Original Nc Studio control system.
6. We provide the DSP operating instruction in English, a set of cutters, software, necessary tools and accessories for free.
7. Can process acrylic,copper,PVC,MDF,PCB……
Application
1.Furniture: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc.
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,light-box mold,stamp,mound,etc.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
Our Factory
We are looking forward for the agents all over the world,hope you can be one of us!
