Home > Consumer Electronics > LED Display > Indoor LED Display > Single Blue PC Software and Infrared Keypad Communication Semi-outdoor P7.62-7*50B Dot Matrix Led Display

Single Blue PC Software and Infrared Keypad Communication Semi-outdoor P7.62-7*50B Dot Matrix Led Display

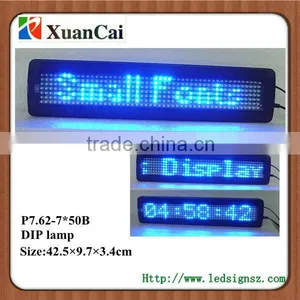

Single Blue PC Software and Infrared Keypad Communication Semi-outdoor P7.62-7*50B Dot Matrix Led Display thumbnail-1
Single Blue PC Software and Infrared Keypad Communication Semi-outdoor P7.62-7*50B Dot Matrix Led Display photo-1
US$ 30 - 50 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
xuancai
Model Number:
P7.62-7*50B
Contact Supplier Request Quote Chat Now
Shenzhen Xuancai Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name xuancai
Model Number P7.62-7*50B
Usage Semi-outdoor
Tube Chip Color Blue
Display Function Other, text, time, animation,symbols etc
Pixels Other, 7.62mm
Screen Dimension 42.5*9.7*3.4cm

Specifications

* Apply to shops etc.(5V) , car&bus (12V/24V)
*Size: 42.5*9.7*3.4cm
* European characters

1. Textual Instruction



 specification:



Pixel 7*50
Pixel pitch 7.62
Color blue
Power 5V 2A
Power consumption 10w
Display size 5.3*38.1cm
Frame size 42.5×9.7×3.4 cm
The material of frame Aluminium
 The color of frame black





Function:



* Europena characters: English and 66 kinds of other European characters, graphic, symbol and simple animations



* Storage: up to 99 messages



* 7 kinds of font which can be displayed as regular, bold and wide modes



*  25 Moving methods: (Cyclic, Scroll up, Scroll down, Open to Center, Open from Right, Open from left etc. )



* Memory space: Approximately 7000 characters



* Built-in timer to auto. turn on/off during the day



* Built-in real time clock with 12-hour or 24-hour display format.



* 8 pcs pre-defined graphs to recall instantly.



* 8 pcs user-defined graphs



* 30 pcs pre-graphic symbols such as phone, car, clock, rocket, etc.



* 8 pcs pre-defined phrases and animations such as MERRY CHRISTMAS



* Setting a displayed list, display these messages in sequence.



* Time-Alarm setting



* 8speeds



* 8 grades of pause periods from 2-60 seconds



* 3 kinds of buzz sounds which can be inserted into editing message randomly.



* Interface of the managing software support multiple languages



* Password protection

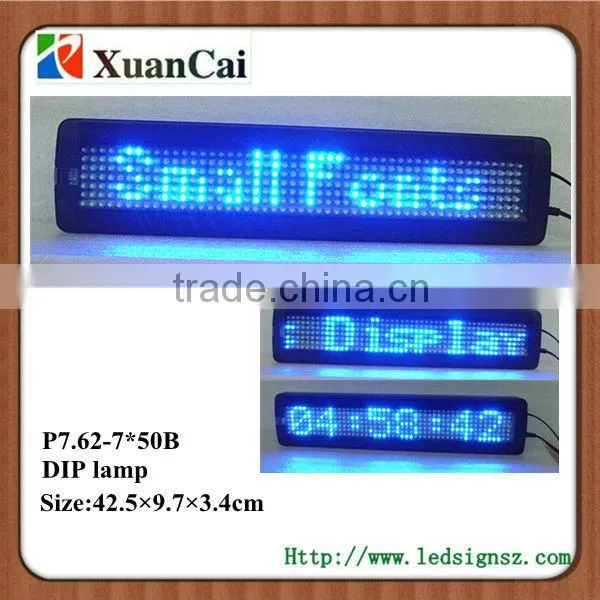

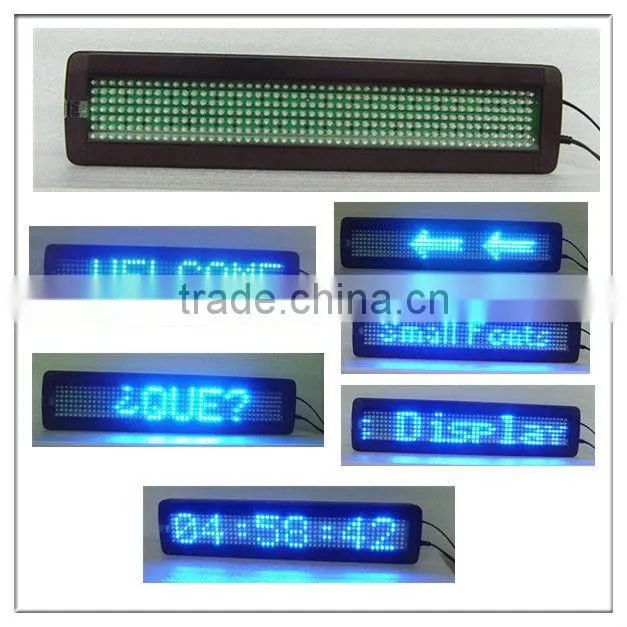

 2. Photo Instruction





  Single blue PC software and Infrared Keypad Communication semi-outdoor P7.62-7*50B dot matrix led display                         Single blue PC software and Infrared Keypad Communication semi-outdoor P7.62-7*50B dot matrix led display







Single blue PC software and Infrared Keypad Communication semi-outdoor P7.62-7*50B dot matrix led display



Single blue PC software and Infrared Keypad Communication semi-outdoor P7.62-7*50B dot matrix led display





3. Real Product Photo show



 Single blue PC software and Infrared Keypad Communication semi-outdoor P7.62-7*50B dot matrix led display

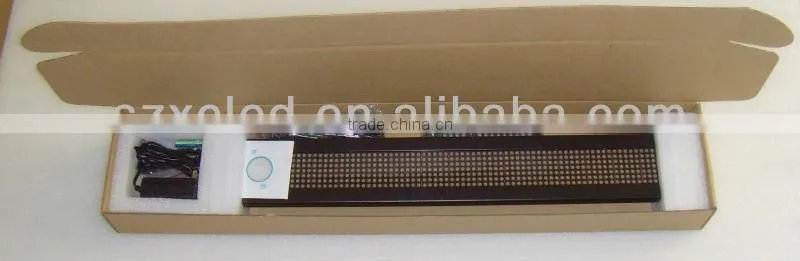

4. Package in Neutral



individual package

Accessories:

*CD(software/manuel)

*communication cable

*remote control

*brackets

*power supply

Single blue PC software and Infrared Keypad Communication semi-outdoor P7.62-7*50B dot matrix led display





5. Installation

  Single blue PC software and Infrared Keypad Communication semi-outdoor P7.62-7*50B dot matrix led display
