asi to dvb-t converter modulator (ASI IN,DVB-T RF out)

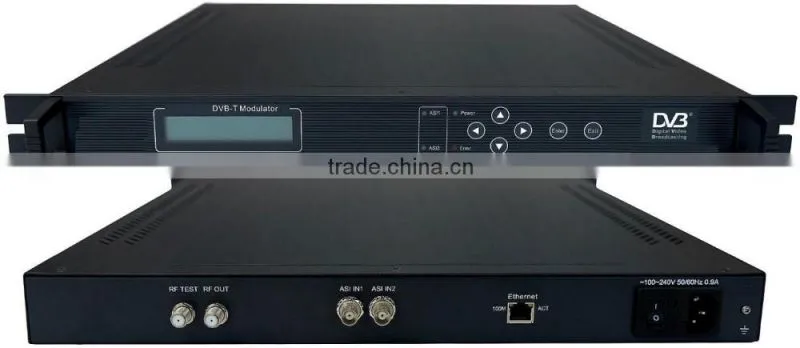

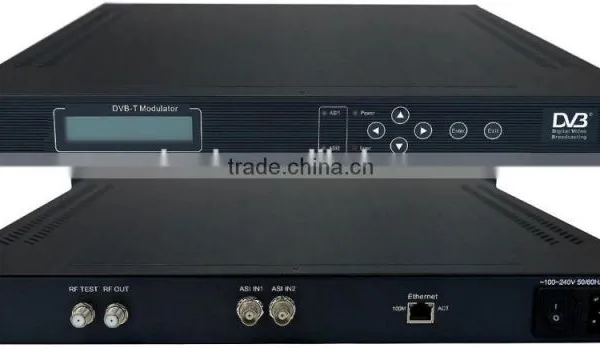

ASI DVB-T Modulator
| 4106 | DVB-T Modulator(ASI IN,DVB-T RF out) |

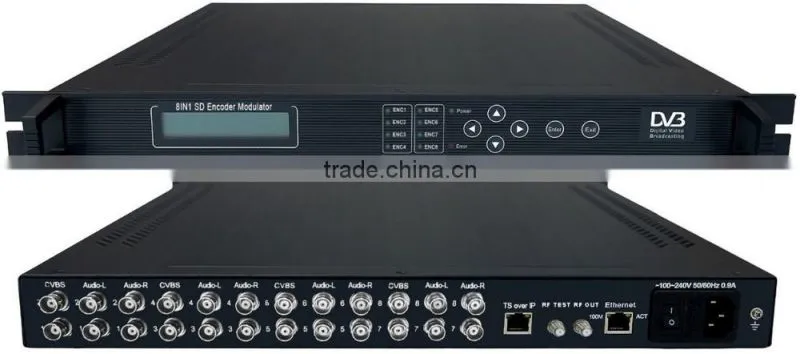

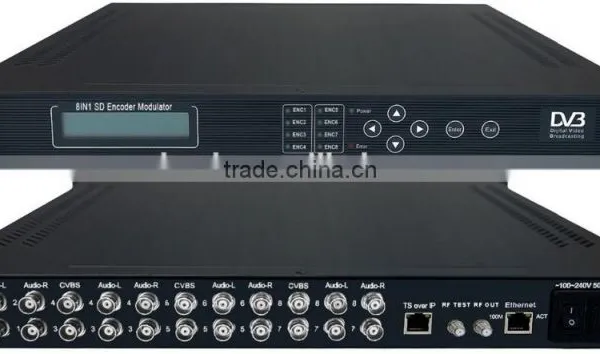

| 4208 | 8IN1 MPEG-2 AV DVB-T Modulator(8AV in,DVB-T out) |

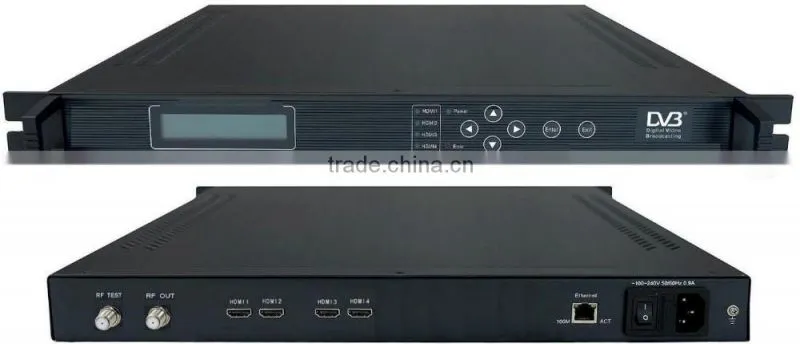

| 4202 | 4IN1 H.264 HDMI DVB-T Modulator(4HDMI in,DVB-T out) |
Overview
ASI DVB-T Modulator supports all DVB-T standard channel coding and modulation parameters. It meets DVB-T and EN300744 standards, supporting FEC and RS correction and encoding.
Technical Specification
Input | ASI | DVB standard, BNC interface |
Modulation | Standard | DVB-T (EN300744) |
Transmode | 2k, 8k | |
Bandwidth | 6M, 7M, 8M | |
Constellation | QPSK, 16QAM, 64QAM | |
Protection Interval | 1/4, 1/8, 1/16, 1/32 | |
Baudrate | 1/2, 2/3, 3/4, 5/6, 7/8 | |
shoulder distance | >50, (Agilent, HP 8594E) | |
Output | Interface | RF, F-head |
Impedance | 75Ω | |
Level Attenuation | -26dbm~+3dbm (0.1db step) | |
Frequency | 30~960MHz, 1khz step | |
MER | ≥ 42db | |
Control | IP remote | NMS (Ethernet Port, RJ-45), 10/100m base-TX, |
Front panel | Keyboard + LCD | |
General Features | Size | 482mm×280mm×44mm |
Temperature | 0~45°C (Operation); -20~80°C (Storage) | |
Power | 100-240VAC, 50Hz, 25W |
Order Guide
4106 | ASI in, DVB-T RF out |
4208 | 8×AV in, DVB-T RF out |
Network Management Software

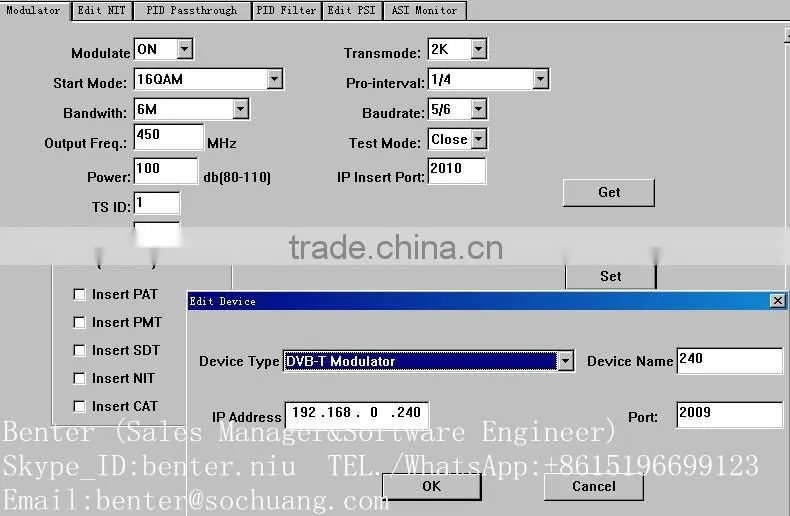

Modulator setting:
NIT edit(support LCN):

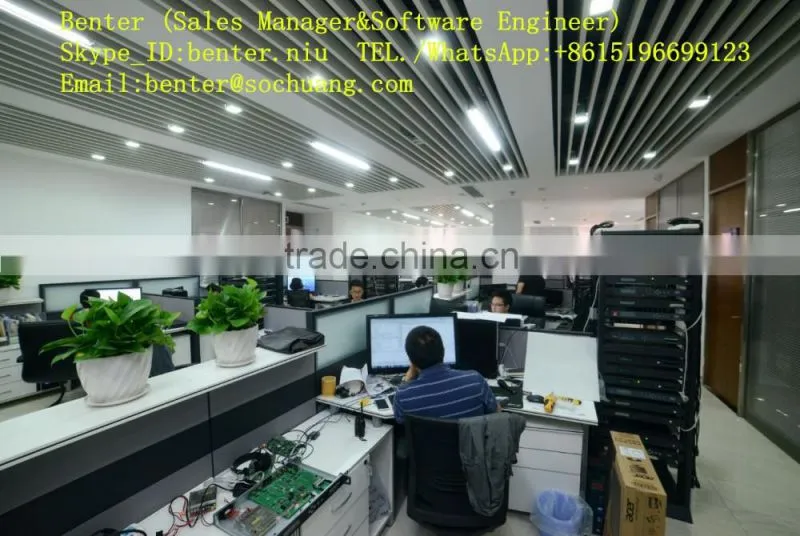

Developing :

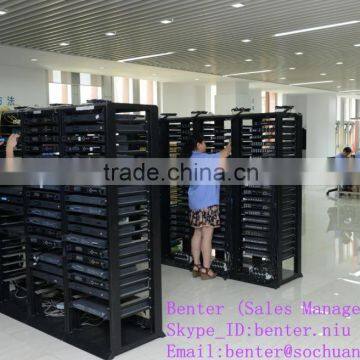

Assembling :
Packing:

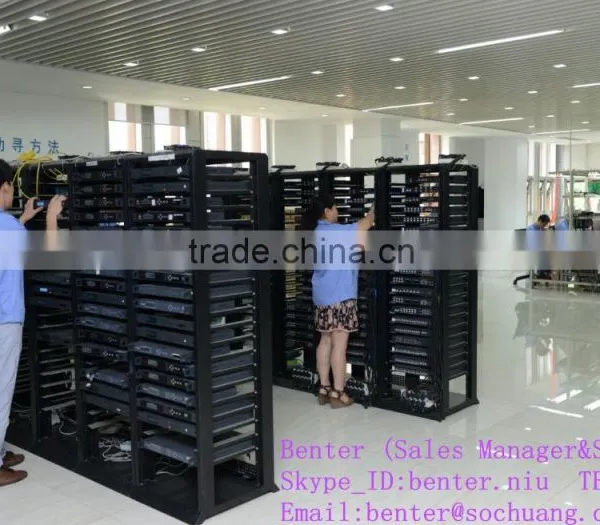

Stocking:
Company information:
Certificate&Exhibition:
