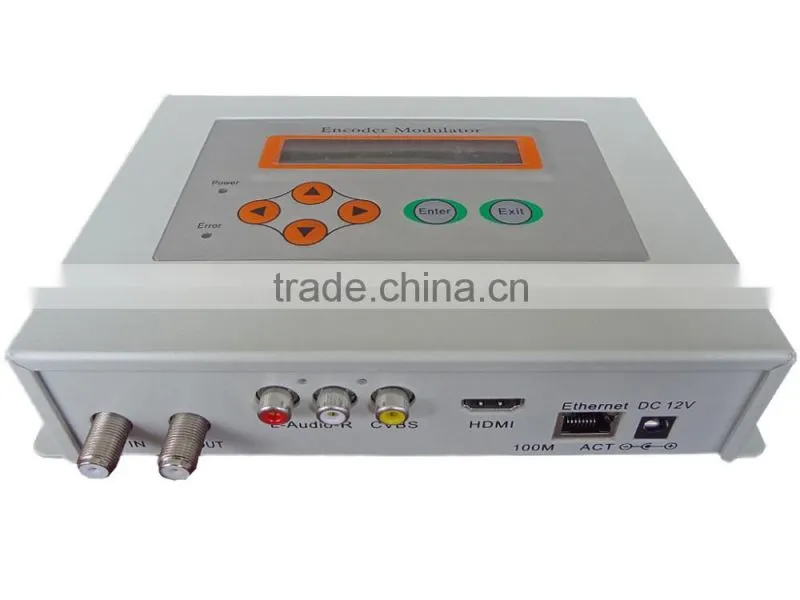

SC-4161 DVB-T COFDM Modulator / dvb-t encode modulator

Video

HDMI: HDMI 1.3, support 1080p

CVBS: RCA interface

Bit Rate:1.0~15Mbps

Video Code: MPEG-4 AVC/H.264

Resolution

HD: 1920×1080-60/50-P/I, 1280×720-60/50P,

SD: 720x576 (PAL), 720x480 (NTSC)

Audio

Audio Code: MPEG-1 Layer 2

Sampling: 32KHz, 44.1KHz, 48KHz

Bit Rate: 64, 128, 192, 256, 384Kbps

Audio: analog stereo/mono (RCA interface) and HDMI embedded audio

DVB-T Modulation

Frequency Range: 30~960MHz, 1KHz step

Output Level: 85~105dB

Constellation: QPSK, 16 QAM, 64 QAM

Bandwidth: 6M, 7M, 8M

Baudrate: 1/2, 2/3, 3/4, 5/6, 7/8

Transmode: 2K, 8K

Protection Interval: 1/32, 1/16, 1/8, 1/4

MER: ≥42dB

Level Attenuation Range: 0~20dB (0.5dB step)

General Features

Size

153mm×238mm×50mm

Temperature Range

0~45°C (Operation); -20~80°C (Storage)

Power

100-240VAC, 50Hz, 25W
