sdi to spts iptv sd hd encoderr (Embedded audio,4 SD/HD SDI in,ASI+IP/4*SPTS out)
in:4 sd hd sdi signal
Out:asi,IP/UDP/multicast,TS over IP
Control:LCD+keypad,NMS
OEM/ODM

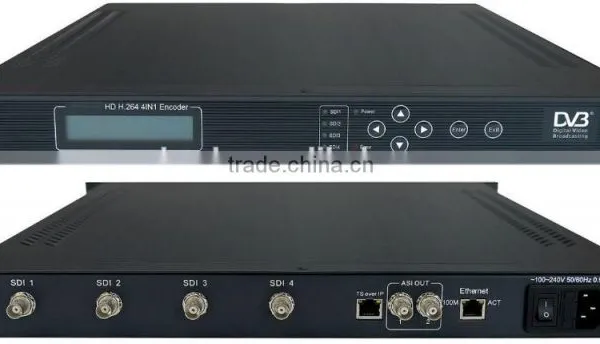

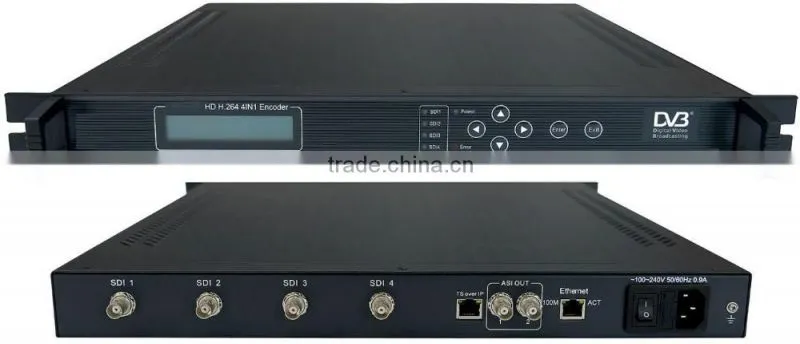

4IN1 SDI H.264 MPTS/SPTS IP Encoder
Overview
4IN1 HD-SDI H.264 IP Encoder has 4 SDI input and generates DVB transport stream (TS/ASI) and MPTS/SPTS (TS over IP, Multicast and Unicast) output. It supports multiple HD formats including 1080i(don’t support 1980p) and 720p. It suit 1U rack and provides LCD operation and NMS (Network Management Software) controlling.
Technical Specification
Input |
4×SDI |
BNC interface |
Video |
Encoding |
4:2:0 encoding H.264 HP@L4 MP@L3 H.264 Adaptive Field Frame (AFF) H.264 Field-Based (FB) |
Formart |
full HD: 1920×1080×60/50i(don’t support 1980p),1280×720×60p/50p,720×480×60i (NTSC),720×576×50i (PAL) |
|
Standard |
ISO/IEC14496-10 (H.264/MPEG-4 AVC) |
|
bitrate |
1 to 15Mbps (4:2:0) per channel |
|
Audio |
Bitrate |
128, 160, 192, 224, 256, 320, 384Kbps |
Property |
MPEG-1, Layer2 |
|
Sample Bitrate |
32k, 44.1k, 48k |
|
Output |
2×ASI |
DVB standard, BNC interface |
IP(1135) |
IP/UDP (TS over IP), 1*MPTS/Unicast/Multicast |
|
IP(1145) |
IP/UDP (TS over IP), 4*SPTS /Unicast/Multicast |
|
Total bitrate |
1 to 80Mbps |
|
Control |
NMS (Ethernet Port), Keyboard + LCD |
|
|
General Features |
Size |
482mm×410mm×44mm |
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC (±10%), 50Hz, 25W |
|
Order Guide
1135 |
4×SD/HD SDI in, ASI+IP/MPTS/Multicast/Unicast out |
1145 |
4×SD/HD SDI in, IP/4*SPTS/Multicast out |
1105 |

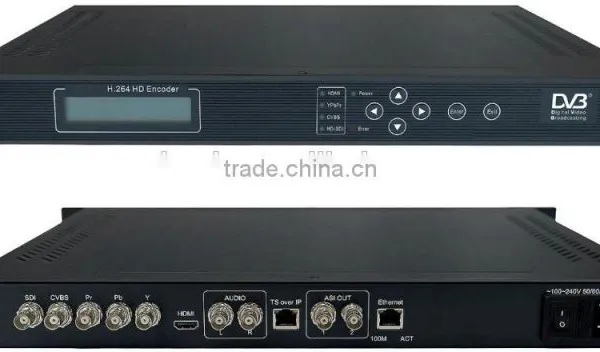

SD/HD H.264 Encoder(HDMI+SDI+YPbPr+CVBS/AUDIO in and ASI+IP out) |
Network Management Software

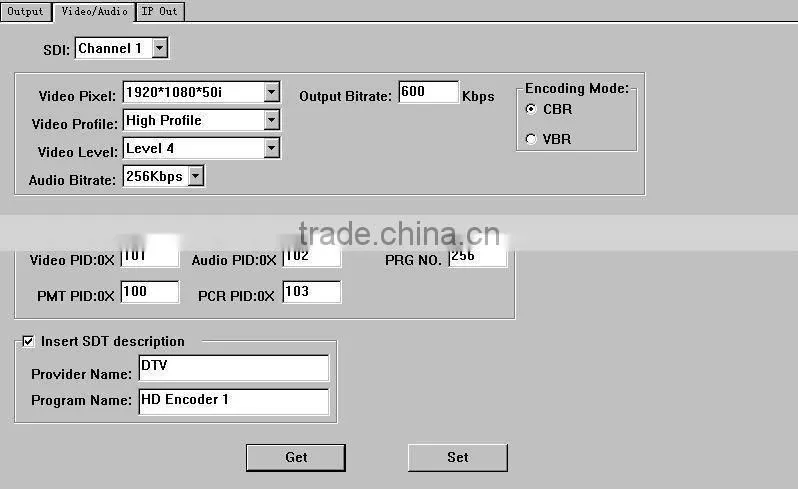

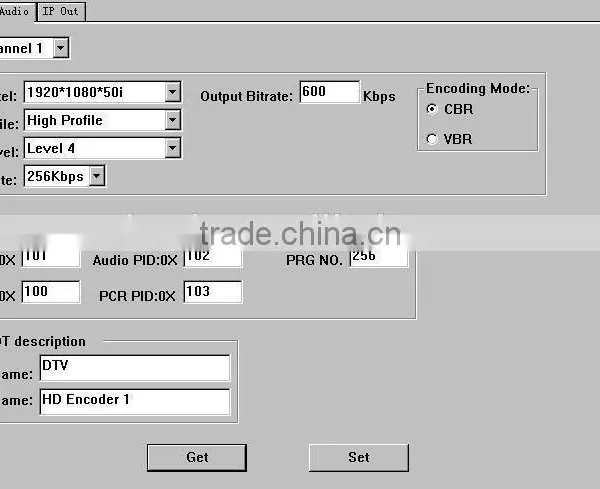

Video and audio setting:

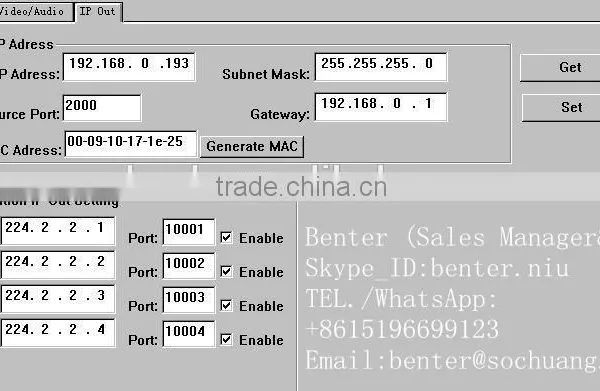

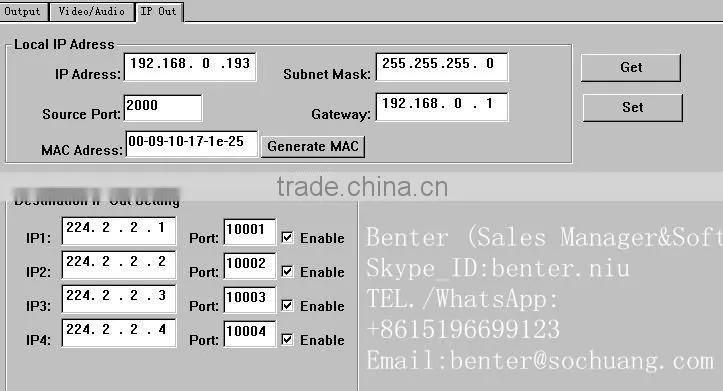

TS SPTS MULTICAST UDP out:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
