ip set top box stb system
ip in:ts over udp multicast
AV out:SD RCA
hdmi out:hd 1920*1080p
video:mpeg-2/4/h.264;audio:mpeg-1/aac
LAN IPTV Multicast Set-Top-Box (STB)

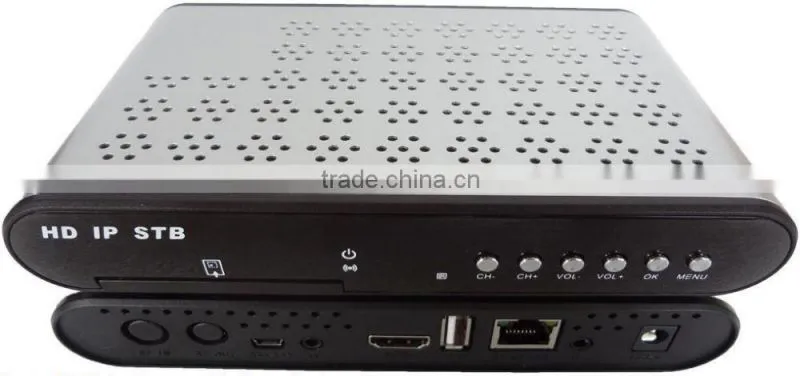

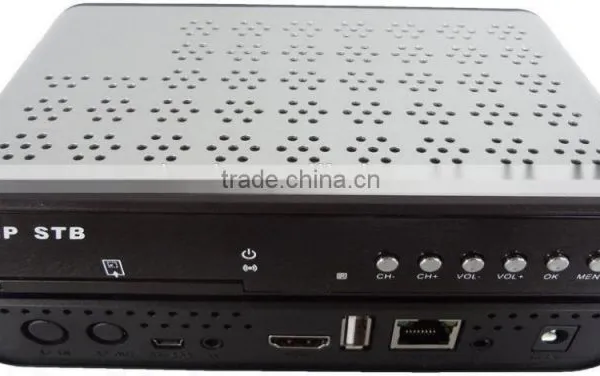

Appearance
Outline
This IPTV STB adopts National Chip hardware platform. It supports main current data broadcasting, online upgrade. It classifies HD and SD to manage the programs, and supports multiple fonts display. The microprocessor chip with high definition can support maximum 1920*1080p video play.
Technical Specifications
Processor Chip |
National GX3201 |
|
Flash(bit) |
8Mbit |
|
SDRAM(bit) |
1024Mbit |
|
RS232 Serial Port |
DB-9, Female |
|
Input |
IP Port |
RJ45 Network Interface |
Output Interface |
Analog Video |
75Ω, RCA |
Analog Audio |
RCA |
|
HDMI |
Support HDCP |
|
Audio decoder |
Decode Mode |
MPEG L1/L2, Dolby Digital/Digital Plus, DTS/DTSHD Core, DRA |
Output Mode |
Left/Right/Stereo Audio |
|
Video decoder |
Decode |
MPEG-2/-4, H.264, ASP, AVS, Divx4~6 |
SNR (weighting) |
≥ 56dB |
|
MAX Resolution |
1920×1080p |
|
Output Format |
PAL/NTSC |
|
Order Guide
8204 |
LAN IPTV HD STB(TS over UDP/multicast IN,HDMI/AV OUT) |
8214 |
LAN IPTV HD STB(TS over UDP/multicast IN,HDMI/AV OUT with Dolby) |
IPTV headend products:
8 Channels SD AV IPTV Encoder:
4 channels HD IPTV encoder:

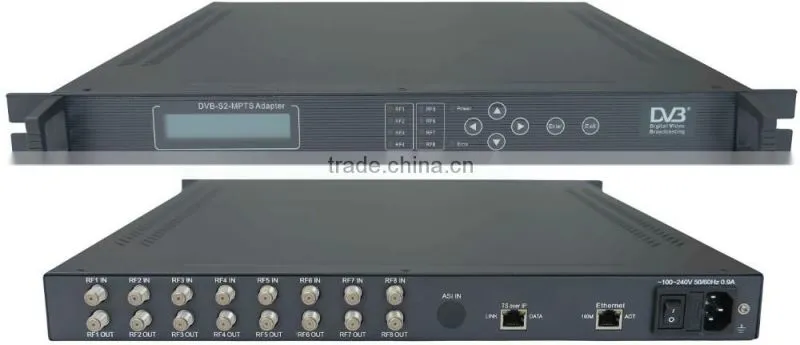

8 transponders dvb-s/s2 to IPTV gateway:
IPTV programs list software:

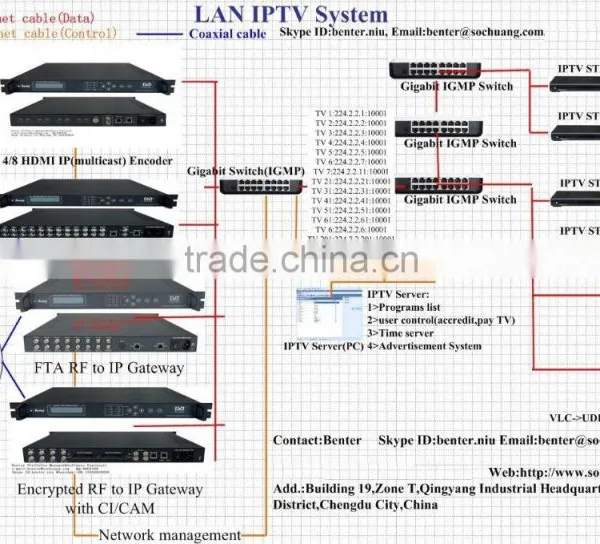

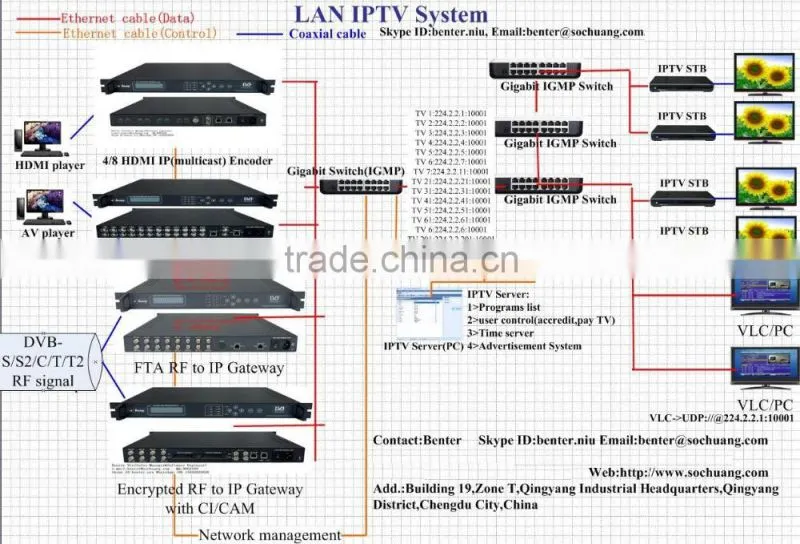

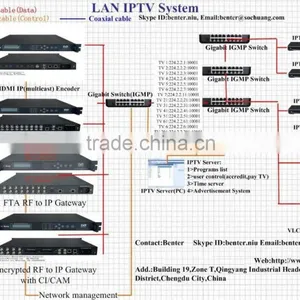

IPTV diagram 1 (SWITCH):

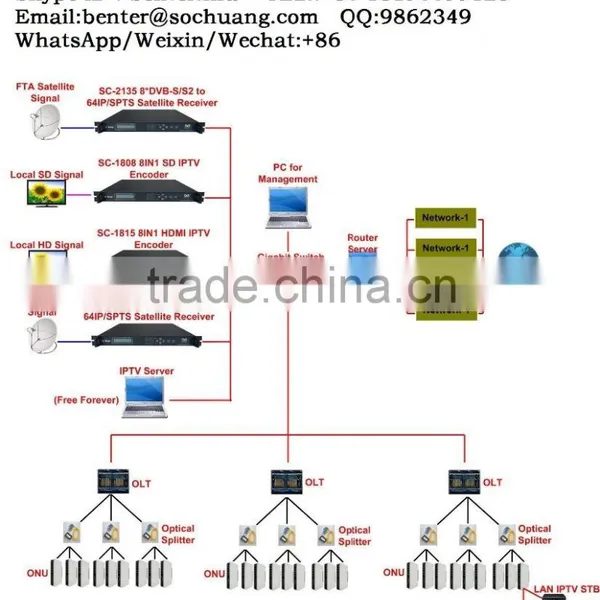

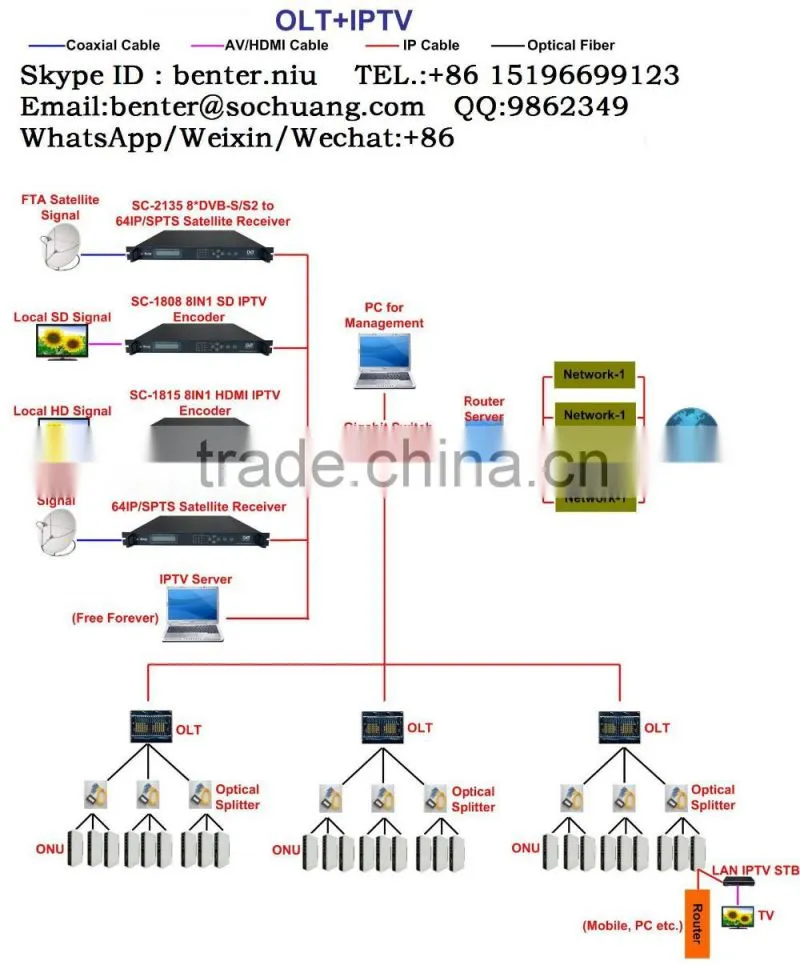

IPTV diagram 2 (OLT fiber):
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Assembling :
Packing:

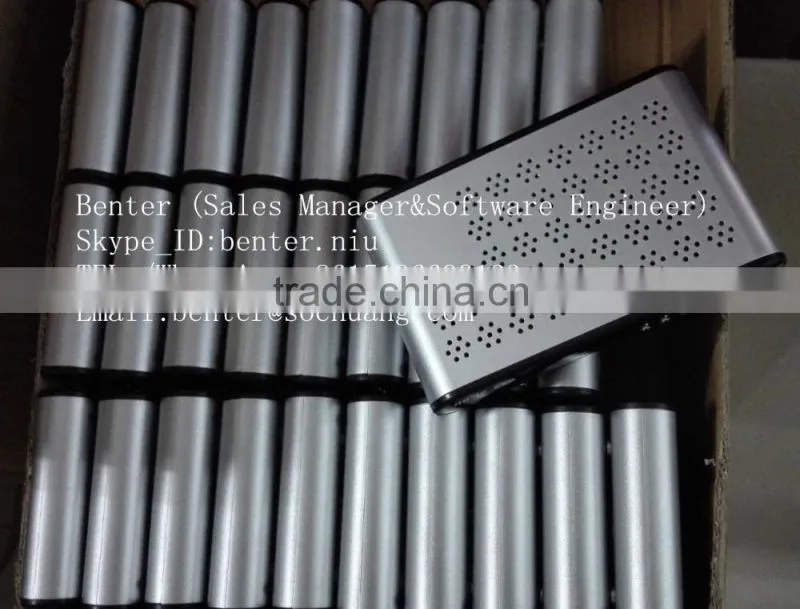

Stocking:
Company information:
Certificate&Exhibition:
