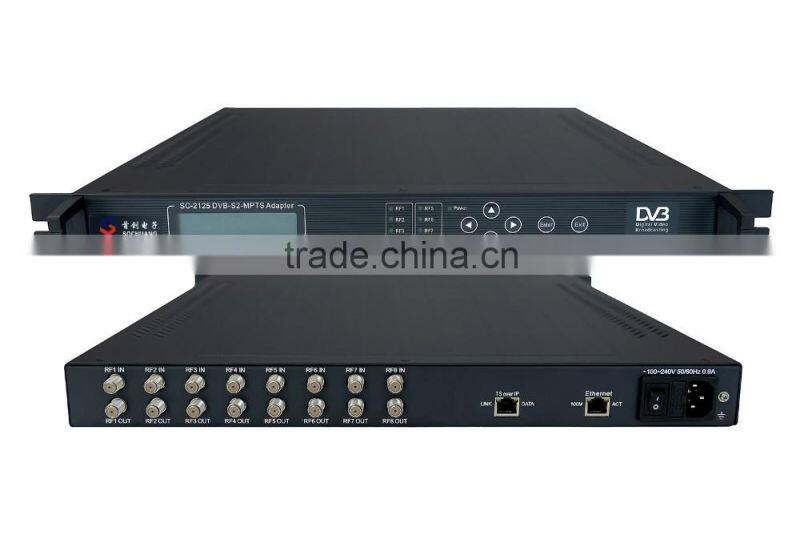

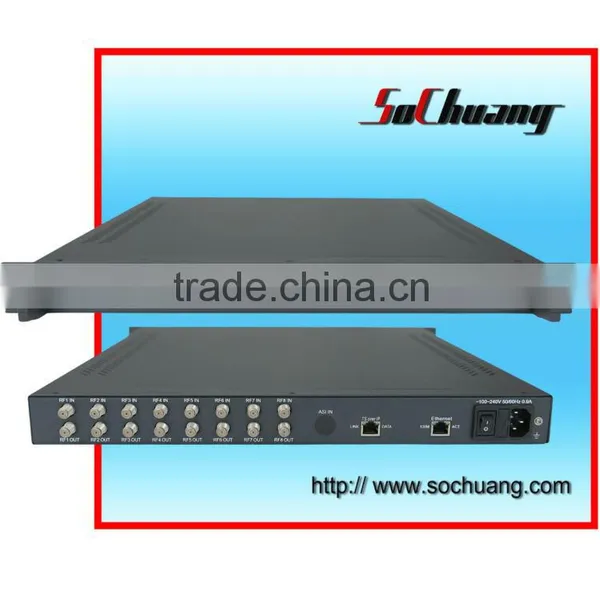

SC-2125 dvb-s2 to ip gateway mpts
Overview
8-in-1 DVB-S/S2 IP receiver(IRD ), is one of the main equipment of cable digital head-end, to receive 8 channels DVB-S/S2 signal(RF)transponder and output 8 MPTS IP transport stream.Mainly used in the satellite radio signal broadcast .Can be directly interconnected and the IP reuse scrambling modulator.
Features
- Support - S ,- S2 ( optional ) interface input ( 8-way RF input )
- Support 8 Channel programs demultiplexing to 8M PTS ;
- Support IP output UDP / RTP protocol(Gigabit, MPTS/Unicast,)
- Support maximum 188 * 7package
- LCD display in Chinese and English, easy and flexible to operate;
- Local and remote management;
- High reliability design, stable operation;
Technical Specification
Input | 8×RF | F-head |
Demodulation Mode | DVB-S/S2, QPSK/8PSK | |
Symbol Rate | 1~45 Mbaud/s | |
Frequency Range | 950MHz~2150MHz | |
Error Correction Coding | RS coding 188/204 | |
Output | IP | 8×MPTS/Unicast/1000BASE-T, TS over IP/UDP |
Control | NMS (Ethernet port, RJ-45), Keyboard + LCD | |
General Features | Size | 482mm×410mm×44mm |
Temperature Range | 0~45°C(Operation); -20~80°C(Storage) | |
Power | 100-240VAC, 50Hz, 25W | |
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
