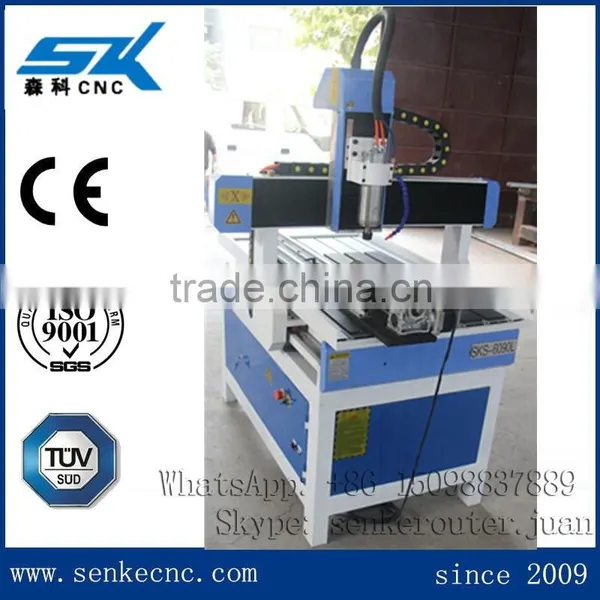

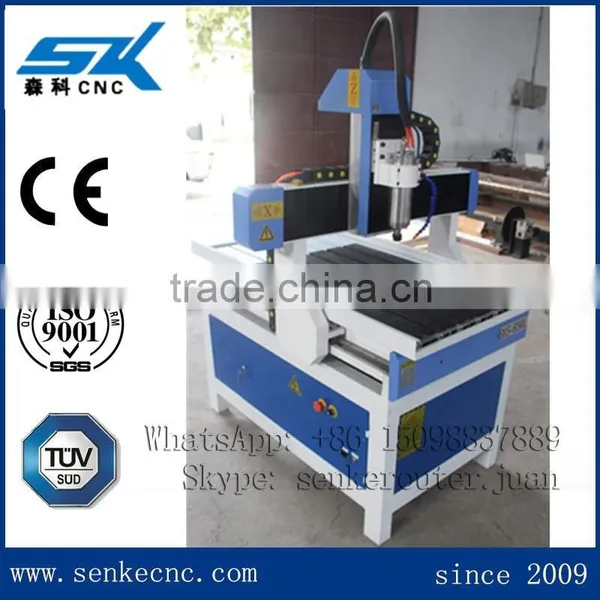

Rotary axis with small metal engraving machine cnc router 6090 for aluminum
We pay attention to any detail of our Every set CNC Router Machine,
we provide the best Abroad Service for Every Customer !
Techinical parameters:
Discription |
Parameter |
|||
SKA-4040L |
SKA-6090L |
SKA-1212L |
Option |
|
Working Area (X*Y*Zmm) |
400*400*80mm |
600*900*150mm |
1200*1200*150mm |
Sizes customized |
Body structure |
welding |
|||
X, Y Structure |
Round rail |
|||
Z Structure |
Germany ballscrew |
|||
X, Y Resolution |
<0.01mm |
|||
Max Moving Speed |
35000mm/min |
|||
Max Engraving Speed |
18000mm/min |
|||
XYZ traveling positioning accuracy |
±0.03/300mm |
|||
XYZ repositioning accuracy |
±0.03mm |
|||
Spindle power |
2.2KW/3.0KW//4.5KW/7KW(can be choices) |
|||
Spindle Speed |
0-24,000rpmrpm |
|||
Table style |
T-slot |
|||
Dust collection |
optional |
|||
Voltage |
380V/50Hz/60HZ or can be customzied |
|||
Drive type |
Stepper/Option:servo |
|||
Working Dictate |
G Code |
|||
Operating system |
DSP control Or NC Studio |
|||
Interface |
USB |
|||
Flash memory |
128M(U Disk) |
|||
Machinery parts shows:

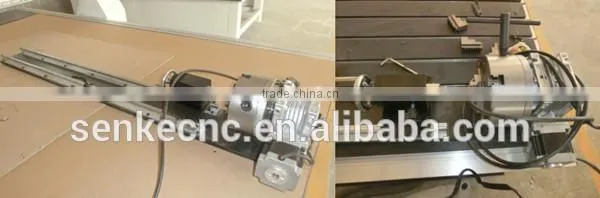

Can add rotary axis in this machine
All necessary accessories included
Features:
1.Integrally cast lathe bed,solid and stable,high rigidity and long service time.
2. Imported high accuracy ball screw ensures more stable movement and high accuracy.
3. Aluminum decorated appearance,beautiful shape and magnificent looking.
4. Water-cooling brushless spindle/ air cooling spindle,low noise,vigorous cutting strength and long time mass processing

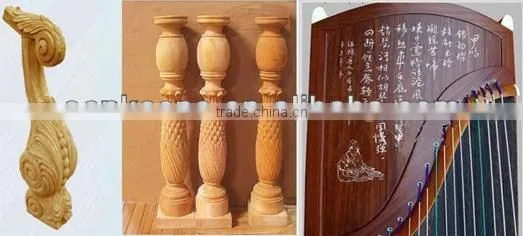

Applicable industry:
Advesting industry,artcraft industry,various types of man-made plate,LED,light box,building modes,rulers badges,department cards etc
Appllicable materials:
wood,pvc board,MDF board,PCB board,aluminum industry,3D technology,breastplate,indoor&outdoor decoration etc
Double paking of protective film and fumigation-free wooden case:
Service:
1 We will provide the user a CD to study the machine installation and commissioning.
2 Our technicists can give user online guide.
3 The user can by call or email us any problems at any time.
4 After-sales service.
Two year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
Questions and answers:
1,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 10 to 15 days.
3,Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How is the packing?
Waterroof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading.
Our factory and work team:
Certificate:
thanks for your interest in our machine, please contact me directly as following:
Jinan Senke CNC Machine Co.,Ltd.
Web:
Wechat/WhatApp/Line: +86 15098837889
Tel: +86 531 88099059
Fax: +86 531 88099059
Skype: senkerouter.juan
