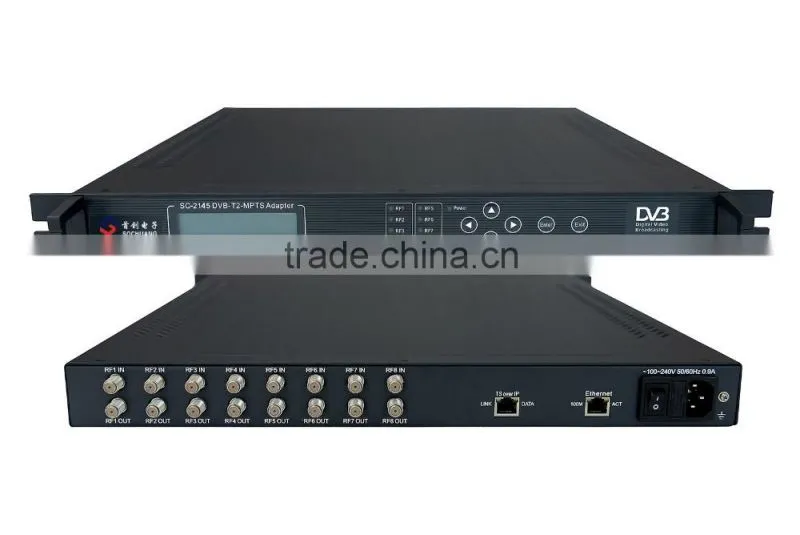

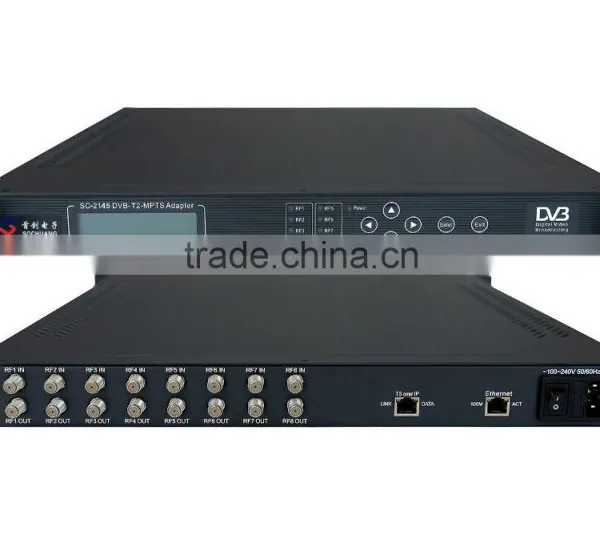

SC-2145 HD/SD DVB-T Receiver
Overview
SC-2145 8×DVB-T/T2 to 8×MPTS IP Gateway can receive 8×DVB-T/T2 signal (RF) transponders and output 8×MPTS IP transport stream (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
Features
u 8×DVB-T or 8×DVB-T2 (optional) input
u 8×MPTS (Gigabit/Unicast/TS over IP/UDP) output
u Support max 188×7 package
u LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input |
8×RF |
F-head |
Demodulation Mode |
DVB-T/T2 |
|
Frequency Range |
30MHz~900MHz |
|
Output |
IP |
8×MPTS/Unicast/1000BASE-T, TS over IP/UDP |
Control |
NMS (Ethernet port, RJ-45), Keyboard + LCD |
|
General Features |
Size |
482mm×410mm×44mm |
Temperature Range |
0~45°C(Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
