hd encoder modulator/DVB-C HDMI Encoder Modulator (4HDMI in,DVB-C out)
4IN1 H.264 HDMI DVB-T(DVB-C)(DTMB) Modulator
Overview

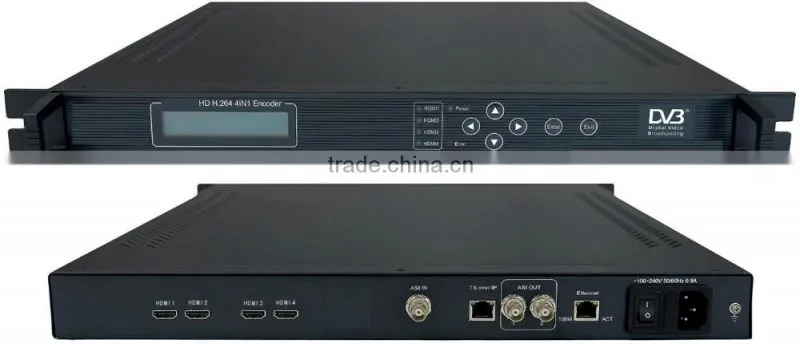

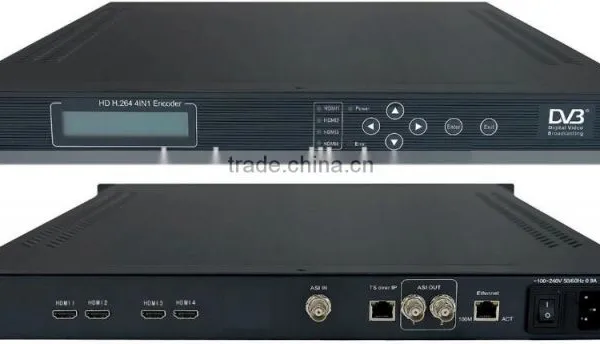

4IN1 H.264 HD DVB-C Modulator supports 4×HDMI input and 1×RF DVB-C output. It integrates encoder and modulator. After coded and modulated, the input signal can be directly output or mixed output with original TV signal. It suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Technical Specification
Input |
4×HDMI 1.3, support 1080p |
|
Encoding |
Video |
4:2:0 encoding H.264 HP@L4 MP@L3 |
H.264 Adaptive Field Frame (AFF) | ||
H.264 Field-Based (FB) | ||
|
full HD:1920×1080×60/50i/p,1280×720×60p/50p; SD:720*576i(PAL),720*480i(NTSC) | ||
Standard: ISO/IEC14496-10 (H.264/MPEG-4 AVC) | ||
bitrate :1.0~15Mbps continuously adjustable per channel | ||
Audio |
HDMI:embedded audio |
|
Sampling:32KHz, 44.1KHz, 48KHz | ||
Code Rate:64, 128, 192, 256, 384Kbps | ||
DVB-C |
Interface |
RF, F-head |
Frequency |
47MHz~870MHz (1khz step) |
|
Symbol Rate |
5~9 Msps |
|
Constellation |
16, 32, 64, 128, 256 QAM |
|
Error-Correcting |
RS code 188/204 |
|
MER |
≥40dB |
|
BER |
0 |
|
Output Level |
≥115dBmV |
|
Level Attenuation |
0~20dB (0.5dB step) |
|
Impedance |
75Ω |
|
Control |
IP remote |
NMS (Ethernet Port, RJ-45), 10/100m base-TX, |
Front panel |
Keyboard + LCD |
|
General Features |
Size |
482mm×280mm×44mm |
Temperature |
0~45°C (operation); -20~80°C (storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
Order Guide
4204 |
4IN1 H.264 HDMI encoder DVB-C Modulator(4HDMI in,DVB-C out) |
4141 |
HD H.264 Encoder modulator(AV/HDMI IN,DVB-C RF out) |
4207 |
8AV MPEG-2 encoder DVB-C Modulator with scrambler(8AV in,DVB-C out) |
Network management software
