Overview

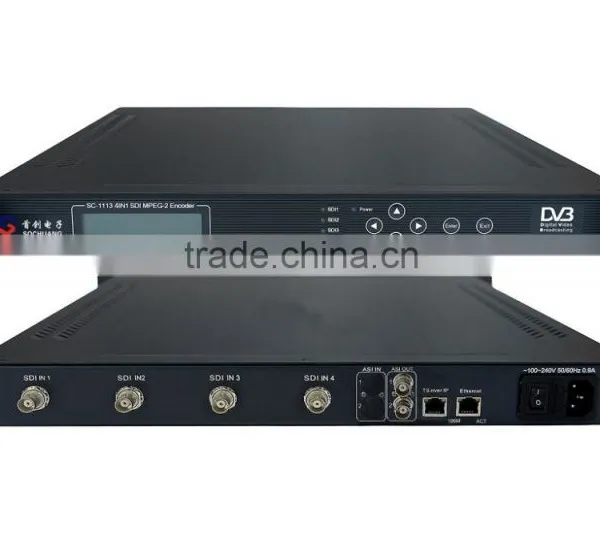

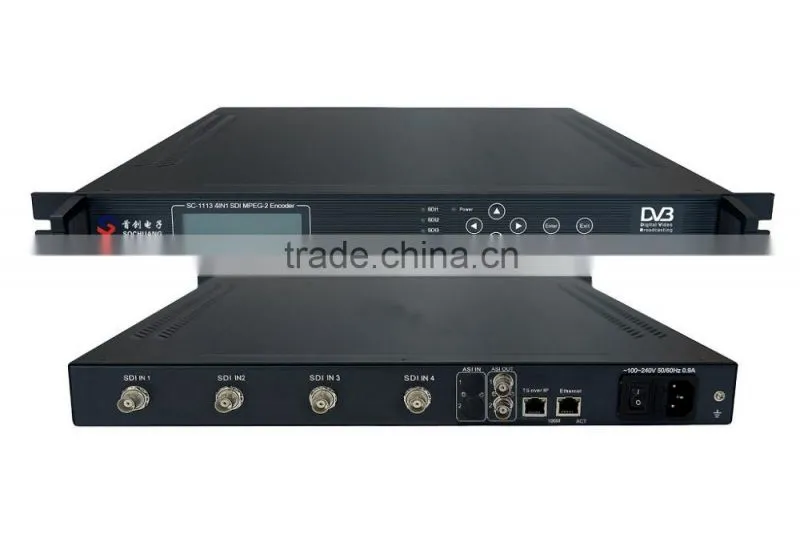

SDI MPEG-2 4in1 Encoder is a multiplexer encoder, supporting MPEG-2 video and MPEG-1 audio encoding. It has 4×SDI input to generate DVB transport stream (TS/ASI) and IP (UDP, MPTS/SPTS) out. The encoder suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Feature
u MPEG-2 video and MPEG-1 audio encoding
u 4×SDI (embedded audio) input
u PID, program name and program number edit
u Support PAL and NTSC video formats
u Bit-rate setting and monitoring
u LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input |
4×SDI, BNC interface, Level 1.0Vp-p |
|
Video Coding |
comply with ISO13818 (MPEG-2) |
|
MPEG-2 coding adopt MP@ML (4:2:0) | ||
MPEG-2 Adaptive Field Frame (AFF) | ||
MPEG-2 Field-Based (FB) | ||
Resolution |
Standard |
comply with CCIR601 standard, support 1/2D1, 2/3D1, 3/4D1 |
PAL |
720×576, 704×576, 640×576, 544×576, 480×576, 384×576, 352×576 |
|
NTSC |
720×480, 704×480, 640×480, 544×480, 480×480, 384×480, 352×480 |
|
Audio Coding (embedded) |
Sampling |
32KHz, 44.1KHz, 48KHz |
Code Rate |
64, 96, 128, 256, 384 Kbps |
|
Property |
MPEG-1 Layer2, 1×stereo or dual-channel |
|
Bit Rate |
1.0~15Mbps continuously adjustable per channel |
|
Output |
2×ASI (1 asi mirror), DVB standard, BNC interface |
|
IP, UDP (MPTS/SPTS), 100M RJ45 | ||
General Features |
Size |
482mm×410mm×44mm |
Temperature Range |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|

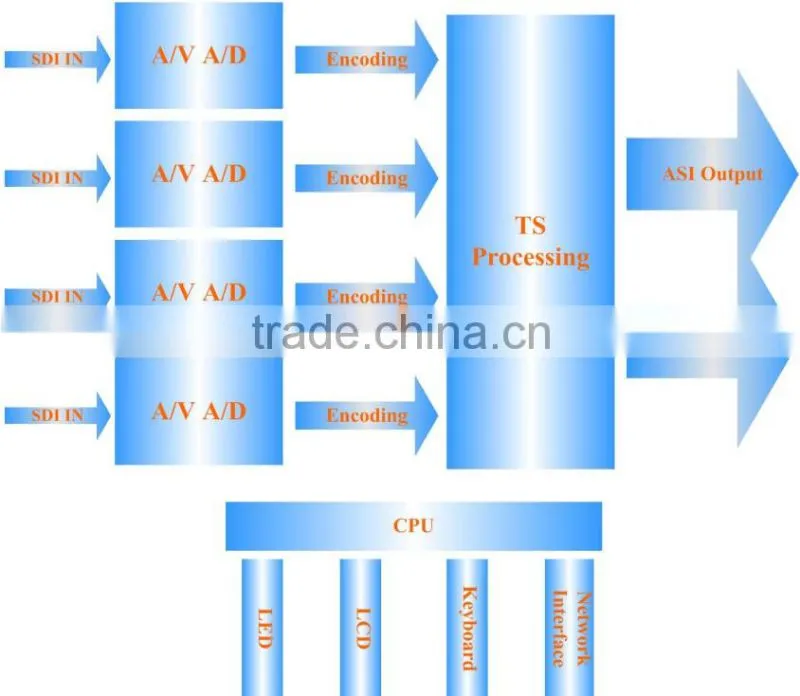

Operating Principle

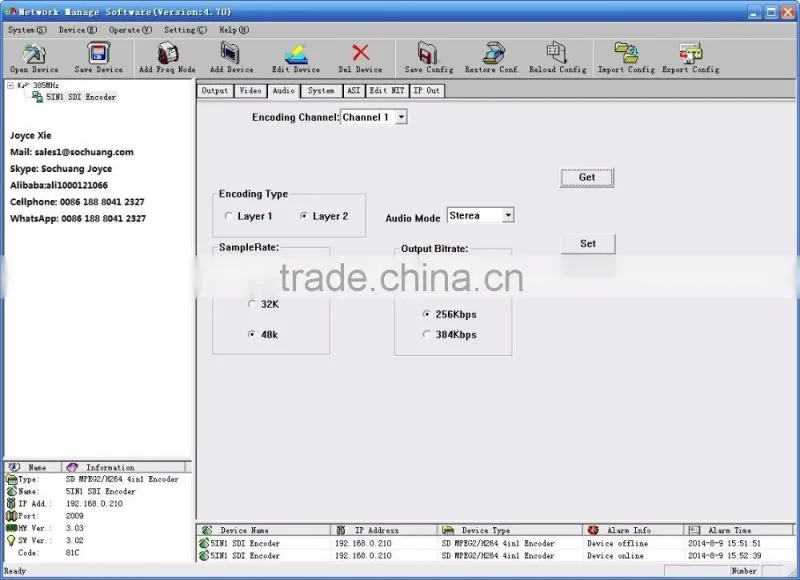

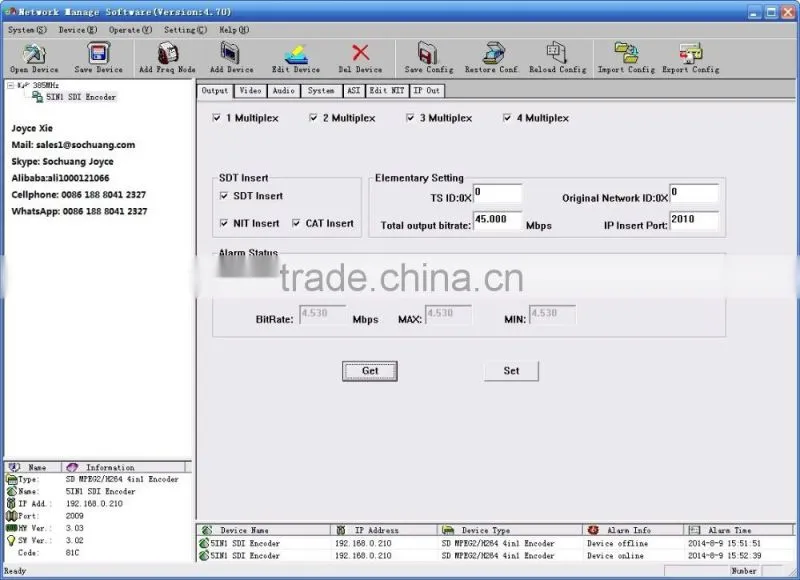

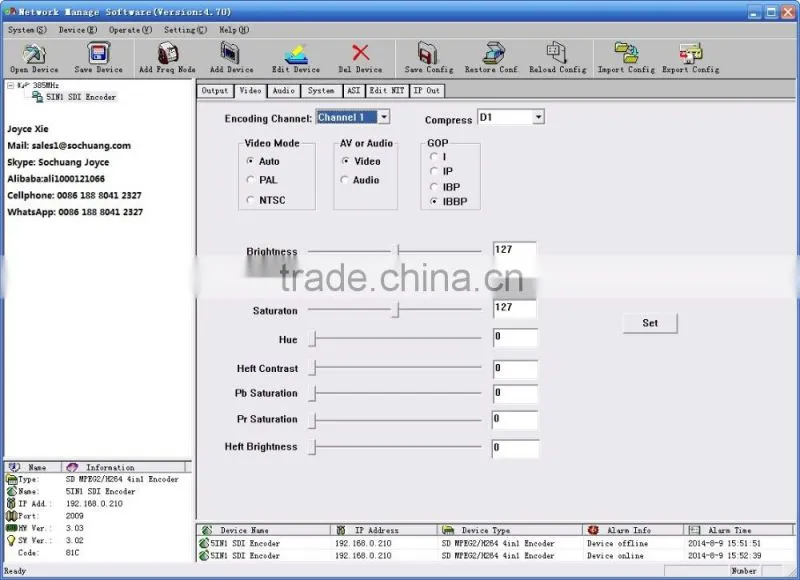

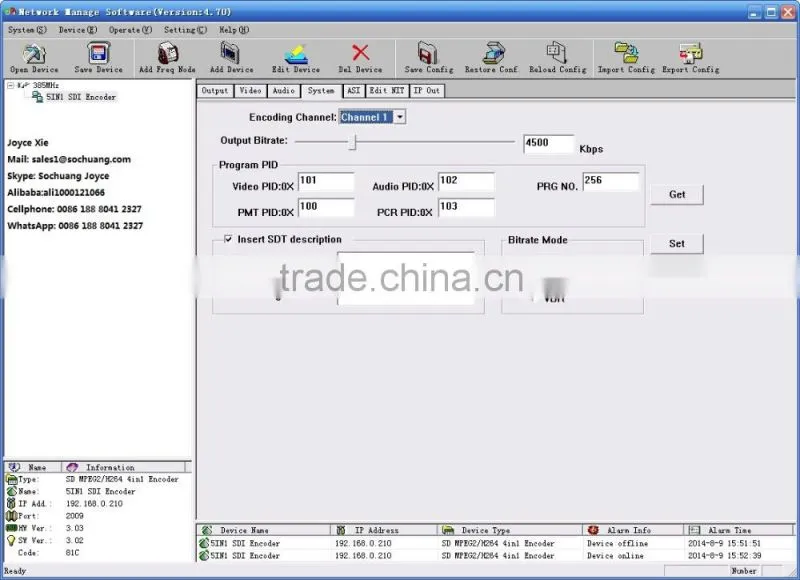

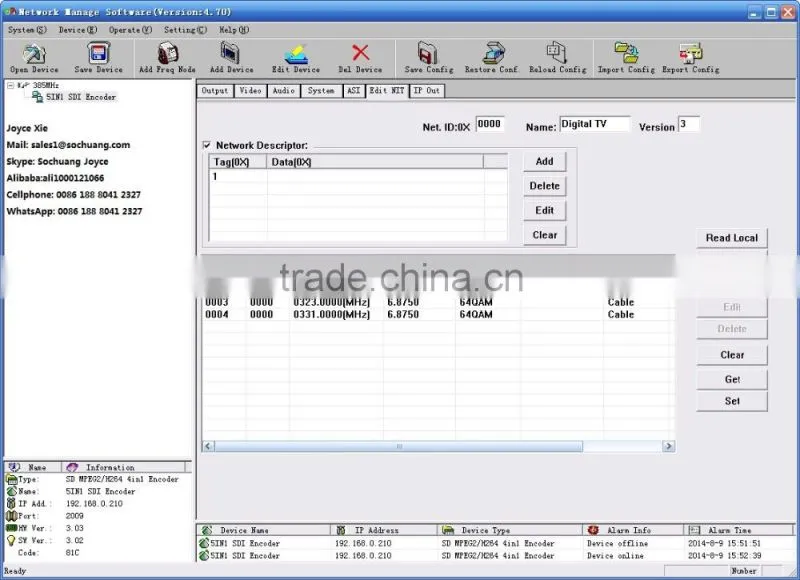

Network Management Software
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
