SC-1115 4HDMI to IP digital mpeg-4 encoder/MPTS
support:HDCP/Audio volume edit
in:4HDMI+ASI
out:ASI+IP,UDP,spts/mpts,unicast/multicast
4IN1 HD/SD HDMI H.264 IP Encoder
Overview
4IN1 MPEG-4 AVC/H.264 HD (High Definition) Encoder (with IP output) supports 4×HDMI input, and generates DVB transport stream (TS/ASI) and MPTS (TS over IP) output. It suits 1U rack and supports1080i/p, 720p and HDCP. Besides, SC-1115 can be operated by both LCD/Keyboard and NMS (Network Management Software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Features
u H.264/AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding
u 4×HDMI input
u Support HDCP
u Support multiple HD formats including 1080i/p and 720p
u LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input |
4*HDMI interface, support HDCP |
|
Output |
ASI |
DVB standard, 2*BNC interface |
IP |
IP/UDP (TS over UDP), 1*MPTS/4*SPTS,Unicast/Multicast |
|
Video |
4:2:0 encoding H.264 HP@L4 MP@L3 |
|
H.264 Adaptive Field Frame (AFF) | ||
H.264 Field-Based (FB) | ||
full HD: 1920×1080×60/50i/p, 1280×720×60p/50p | ||
Bit rate :1 to 20Mbps (4:2:0) per channel | ||
CBR/VBR | ||
ISO/IEC14496-10 (H.264/MPEG-4 AVC) | ||
Audio |
Bitrate |
128, 160, 192, 224, 256, 320, 384Kbps |
Volume |
Volume range 0~31 |
|
Property |
MPEG-1 Layer 2 |
|
Sampling |
32khz, 44.1khz, 48khz,etc. |
|
Control |
NMS (Ethernet Port), Keyboard + LCD |
|
General Features |
Size |
482mm×280mm×44mm |
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC (±10%), 50Hz, 25W |
|
Order Guide
1115 |
4×HDMI+1xASI in, ASI+IP(1*MPTS/4*SPTS, Multicast/Unicast) out |
1815 |
8×HDMI+1xASI in, ASI+IP(1*MPTS/8*SPTS, Multicast/Unicast) out |
Network management software

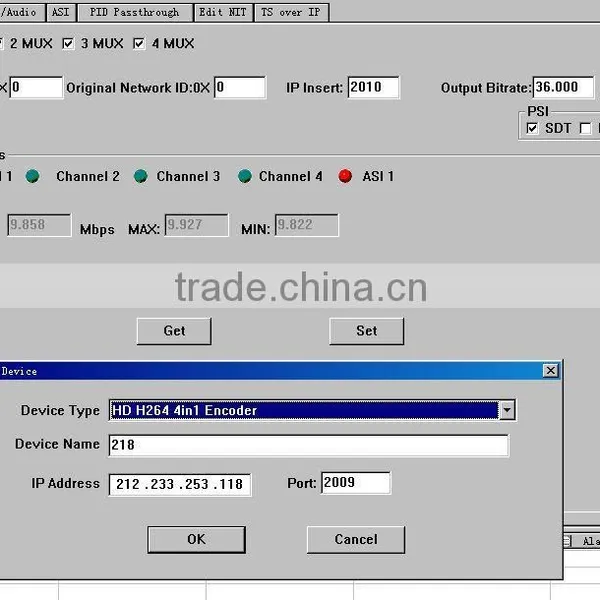

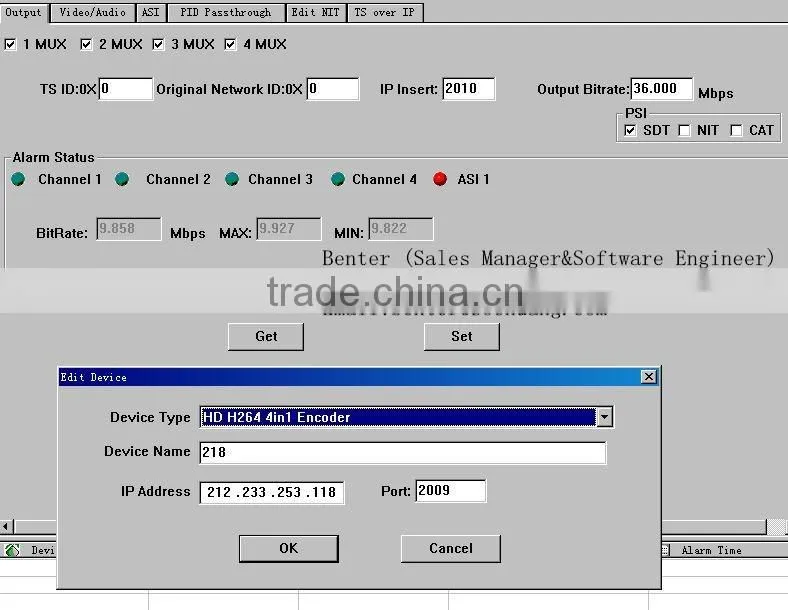

1>multiplexer output setting:

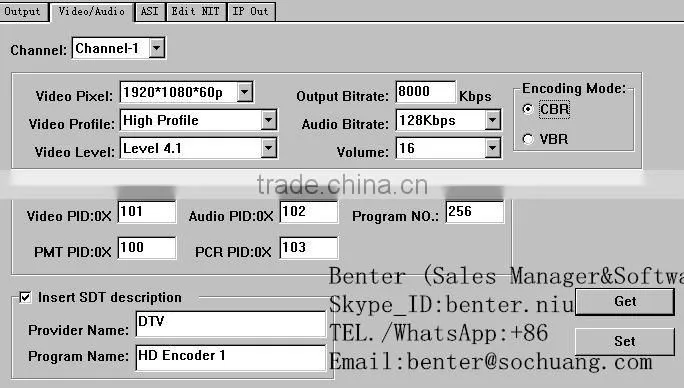

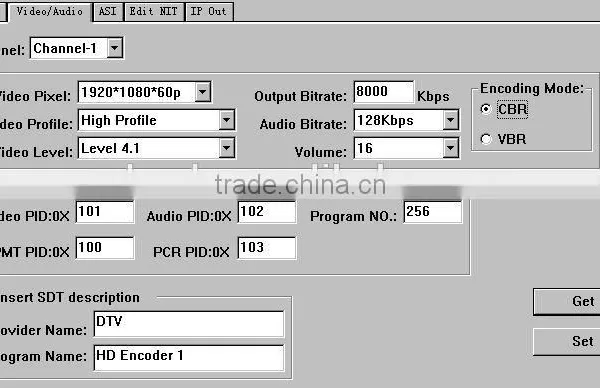

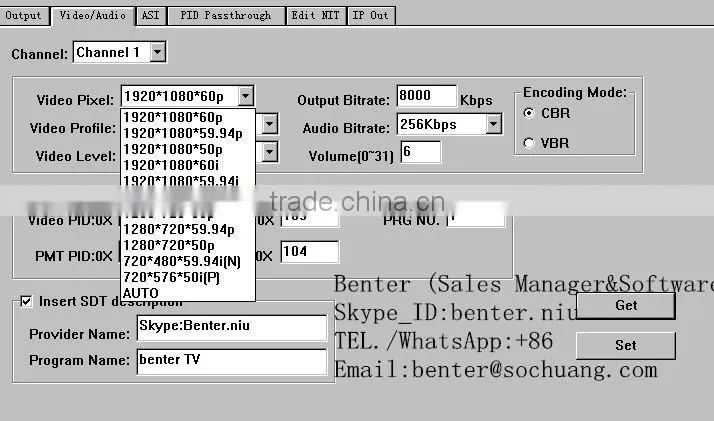

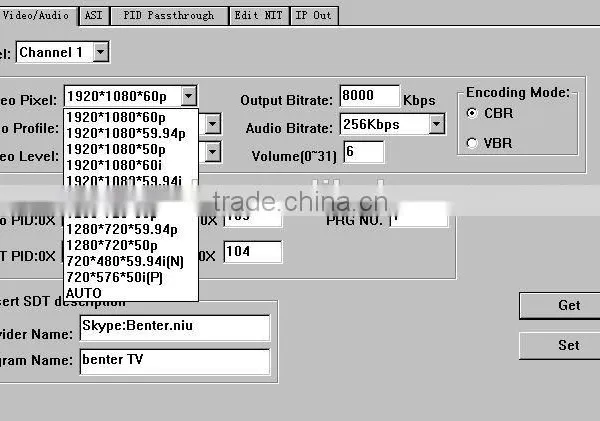

2>video audio setting:
NIT edit and insert:

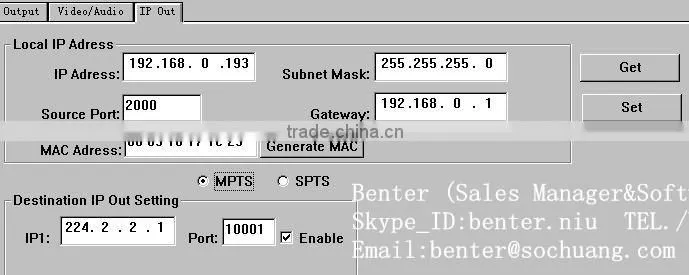

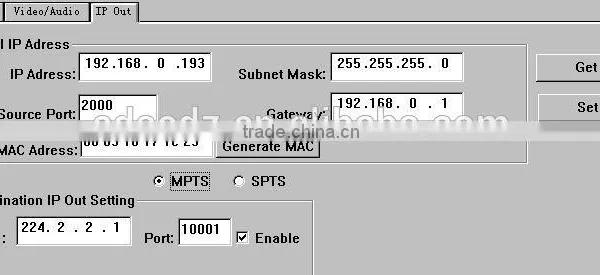

3>IP 1*MPTS output setting:

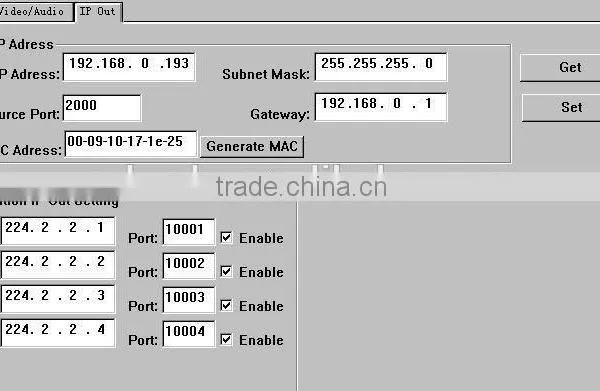

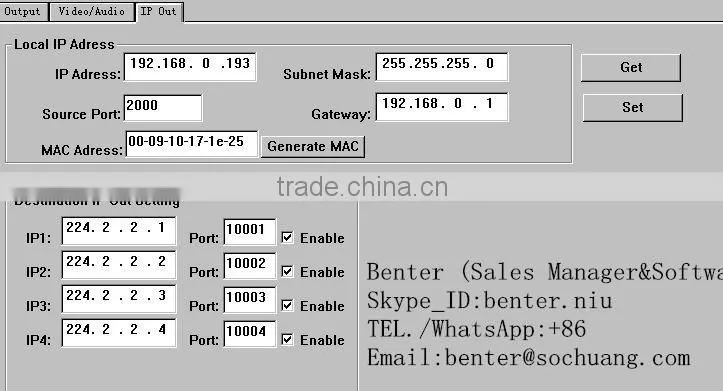

4>IP 4*SPTS output setting:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
