Product Details
Brand Name: | SC | Model Number: | SC1401 |
Product Description
8in1 IP ASI MPEG-2 H.264 Transcoder(8*ASI in,ASI+IP(1*MPTS/8*SPTS) out)

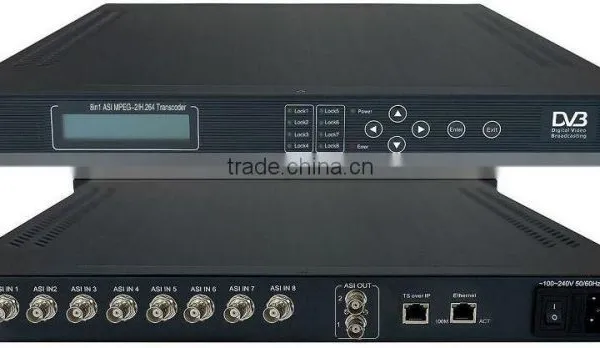

8IN1 SD/HD ASI Transcoder
Overview
8IN1 SD/HD ASI Transcoder supports MPEG-2 to MPEG-4/H.264,MPEG-2 to MPEG-2, MPEG-4/H.264 to MPEG-2, MPEG-4/H.264 to MPEG-4/H.264. It has 8xASI input interfaces, and 1xASI and IP (TS over UDP) output. The encoder suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Technical Specification
Input | ASI | 8 BNC interface, TS, DVB standard |
Video | Transocde | MPEG-2 to MPEG-4/H.264, MPEG-2 to MPEG-2, MPEG-4/H.264 to MPEG-2, MPEG-4/H.264 to MPEG-4/H.264 |
Output BitRate | 1.0~10Mbps continuously adjustable per channel | |
Audio |
| Bypass |
Output | 2×ASI | 1 as mirror, DVB standard, BNC interface |
IP(1401 model) | 100mbps RJ45, TS over IP/UDP/1*MPTS/8*SPTS | |
Control | NMS (Ethernet port, RJ-45), Keyboard + LCD | |
General Features | Size | 280mm×410mm×44mm |
Temperature Range | 0~45°C(Operation); -20~80°C (Storage) | |
Power | 100-240VAC, 50Hz, 25W |
Order Guide
1401 | 8in1 ASI MPEG-2/H.264 Transcoder(ASI in,ASI+IP out) |
Network Management Software
mpeg-2 to mpeg-2/mpeg-4 transcoding:
mpeg-4 to mpeg-2/mpeg-4 transcoding:monitor transcoding:

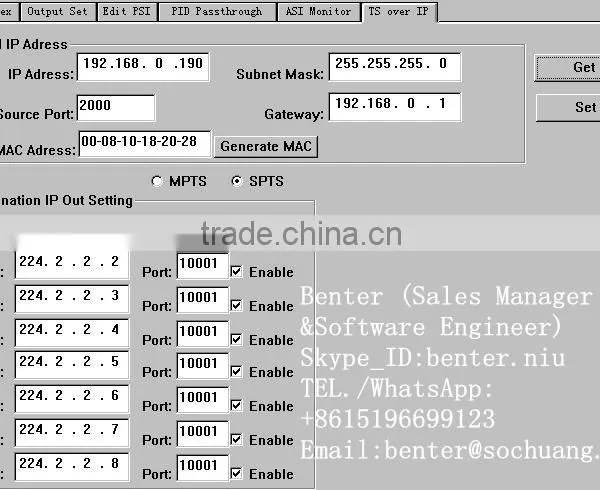

SPTS ip out:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
