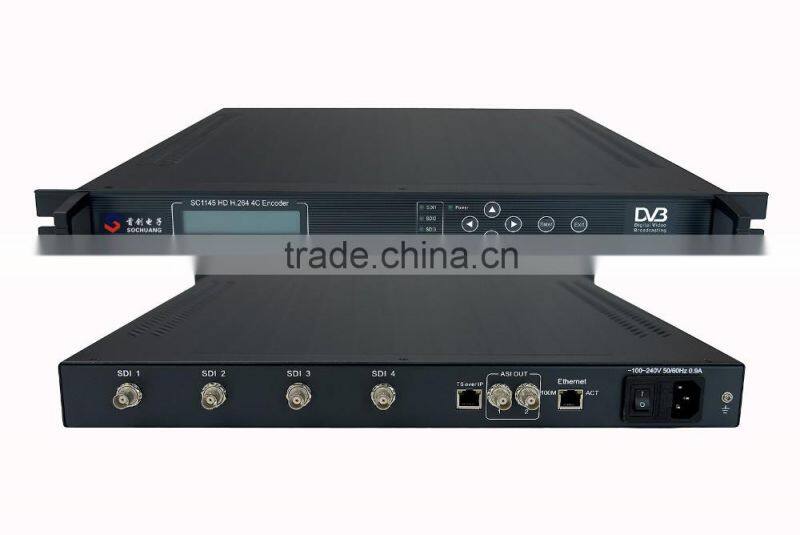

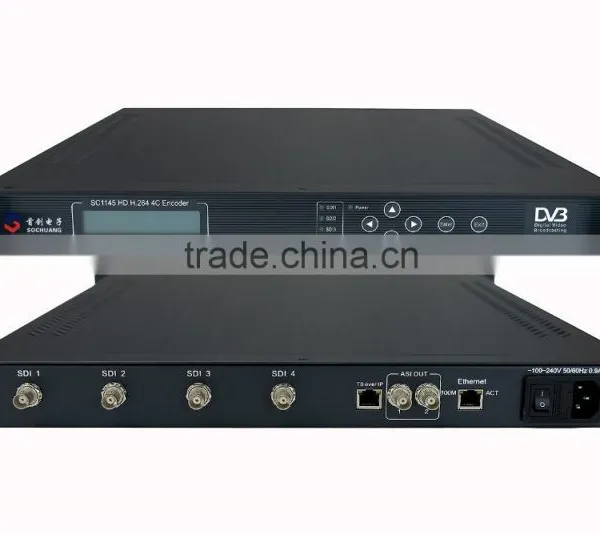

SC-1145 HD SDI to Ethernet /4-channel iptv system h264/avc hd sdi mpeg4 encoder
Overview
IPTV Headend Solution Equipment MPEG4/H264 4 Channel Encoder HD SDI is a user-friendly, powerful encoder with multi-service capability, flexibly delivering multiple full and low resolution services to a range of devices. It supports multiple HD formats including 1080i/p, 720p. Besides it supports TS (UDP) over IP output, combined with 4 HD-SDI inputs. Definitely, it conforms to the H.264 standard from the ITU.
Features
u Low Bit Rate
u H.264 compression
u 100M IP output
u 4 SDI inputs
u Support HDCP
u Real-time encoding and generate four SPTS /Multicast
u Support multiple HD formats including 1080i, 720p

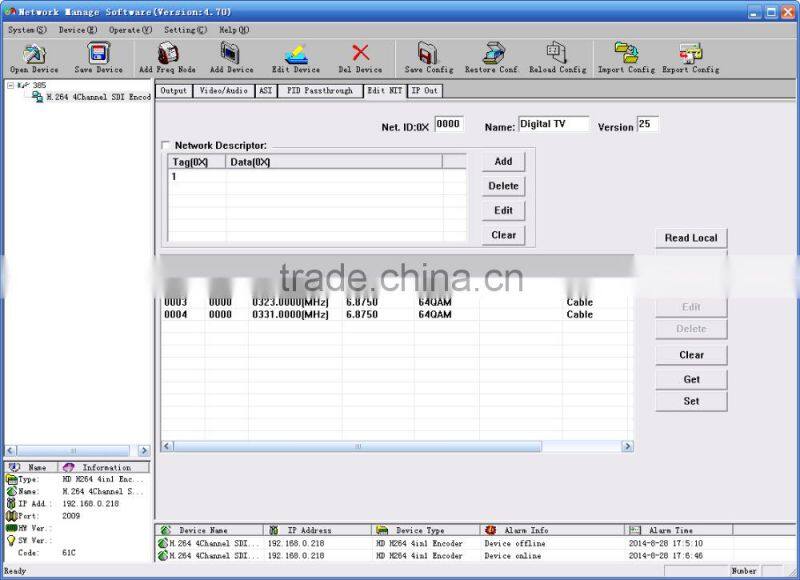

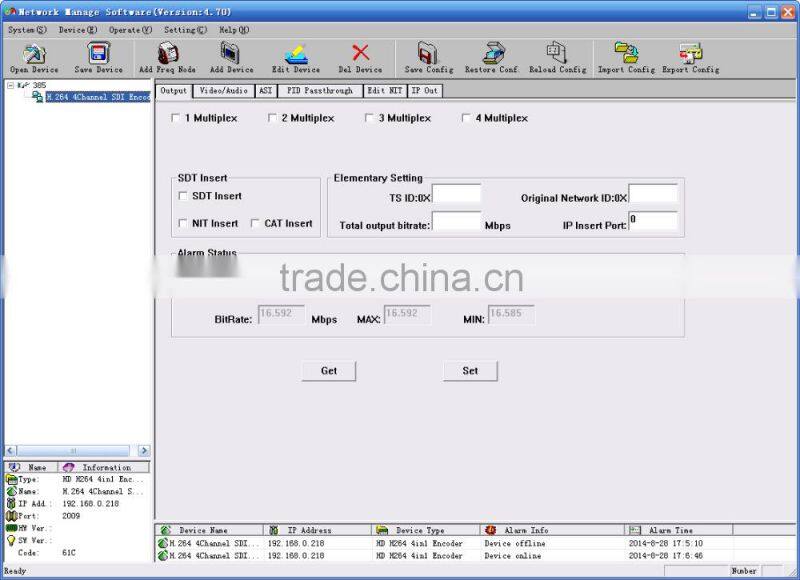

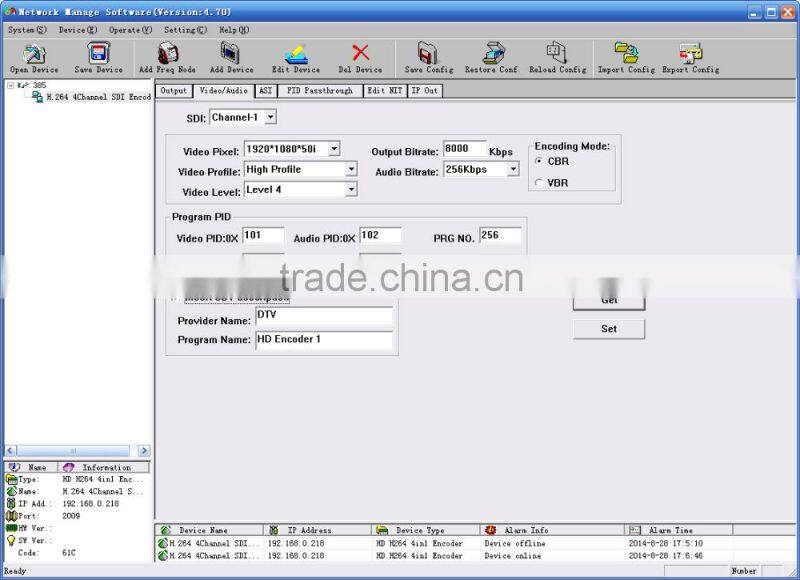

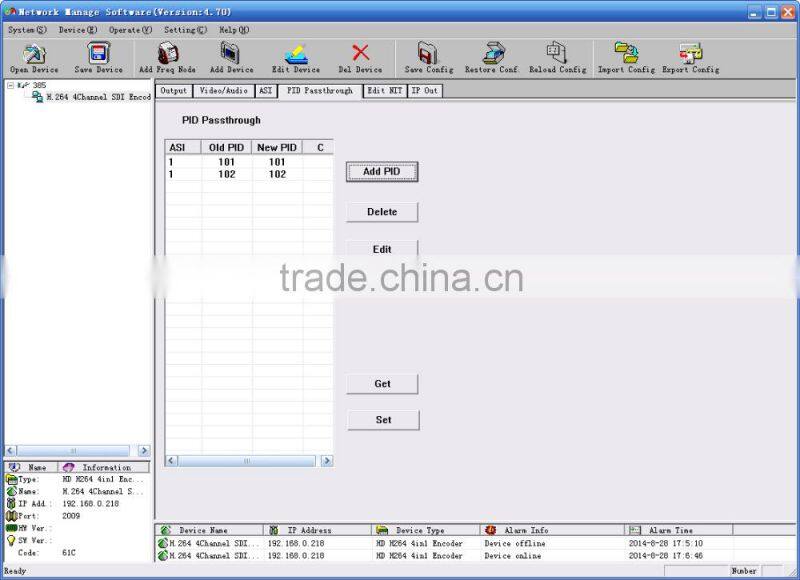

u LCD/NMS management
u H.264/AVC High Profile Level 4.0 video encoding support, advanced video pretreatment algorithm
Technical Specification
Input |
4×SDI |
BNC interface |
Video Coding |
4:2:0 encoding H.264 HP@L4 MP@L3 |
|
H.264 Adaptive Field Frame (AFF) | ||
H.264 Field-Based (FB) | ||
full HD: 1920×1080×60/50i/p,1280×720×60p/50p,720×480×60i (NTSC),720×576×50i (PAL) | ||
Standard |
ISO/IEC14496-10 (H.264/MPEG-4 AVC) |
|
Audio Coding |
Bitrate |
128, 160, 192, 224, 256, 320, 384Kbps |
Property |
MPEG-1 Layer2 |
|
Sample Bitrate |
32KHz, 44.1KHz, 48KHz |
|
Output |
2×ASI |
DVB standard, BNC interface |
IP |
IP/UDP (TS over IP), SPTS/Unicast/Multicast |
|
Output Bitrate |
1 to 20Mbps (4:2:0) per channel |
|
Control |
NMS (Ethernet port, RJ-45), Keyboard + LCD |
|
General Features |
Size |
482mm×410mm×44mm |
Temperature Range |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
