digital AES/EBU audio ip encoder (4 AES/EBU+ASI in,ASI out)
in:4 aes/ebu
out:2 X ASI
mpeg-1 layer 1/2 audio

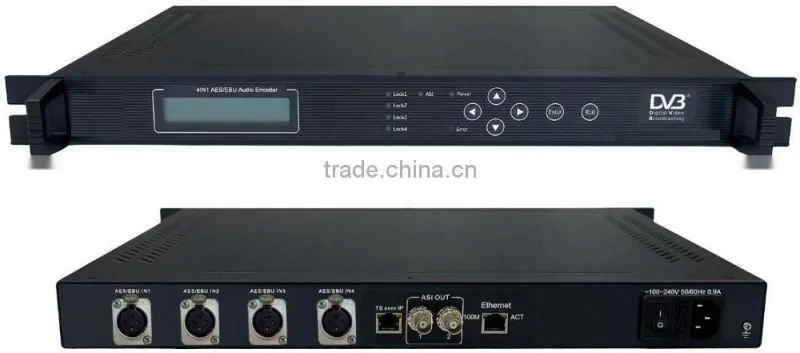

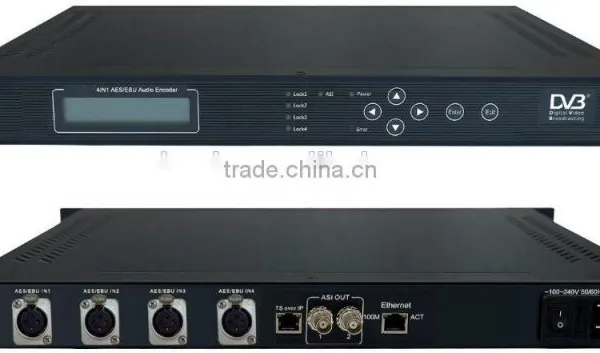

AES/EBU4in1 Digital Audio Encoder
Overview
AES/EBU4in1 Digital Audio Encoder supports MPEG-1 audio encoding. It has 4 digital audio (AES/EBU) and 1×ASI (BNC (MUX)) input interfaces, and can multiplex the input signal (TS) to generate DVB transport stream (TS/ASI) output. It suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Technical Specification
Input |
4 digital audio (AES/EBU) |
|
Audio |
Sampling |
32KHz, 44.1KHz, 48KHz |
Code Rate |
64, 128, 192, 256, 384Kbps |
|
Property |
MPEG-1 Layer2, 1×stereo or dual-channel |
|
|
|
Edit PID, program name and program number |
Output |
ASI |
2×ASI, DVB standard, BNC interface |
IP |
TS over UDP |
|
General Features |
Size |
482mm×280mm×44mm |
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
Network management software
program name,PID,number setting:
IP output setting:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
