SC-1107 1 channels catv sd mpeg 4 h 264 avc ip encoder
Overview
According to the market needs, our company R&D a new broadcast video audio encoding equipment, which named H.264 SD Encoder. Combined our company advanced video audio pretreatment technology, and the most advanced H.264 video encoding algorithm and various audio encoding algorithm, this encoder can achieve high quality audio and video encoding and transmission with low bit rate. It definitely provides users perfect digital video encoding solutions.
Features
H.264 High Profile Level 3.0 SD video encoding, Advance video pretreatment algorithm
MPEG-1 Audio Layer 2;
MPEG-TS over UDP etc various media transport protocol;

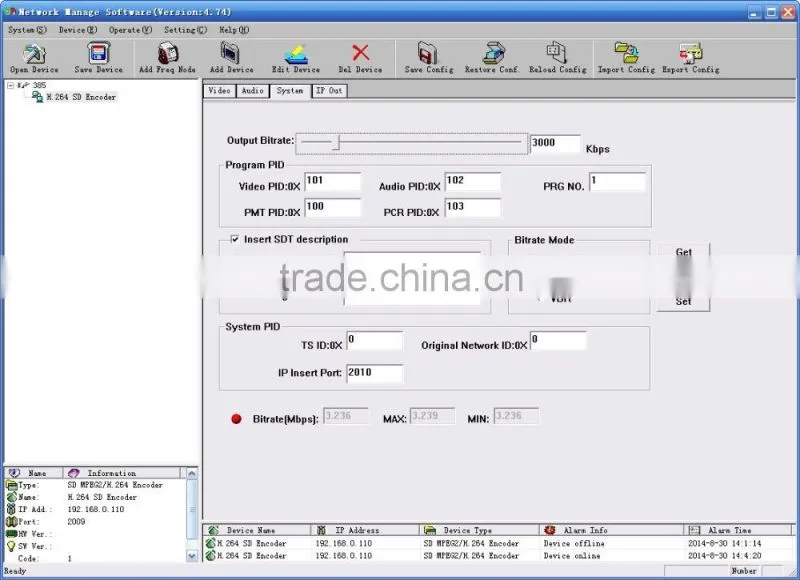

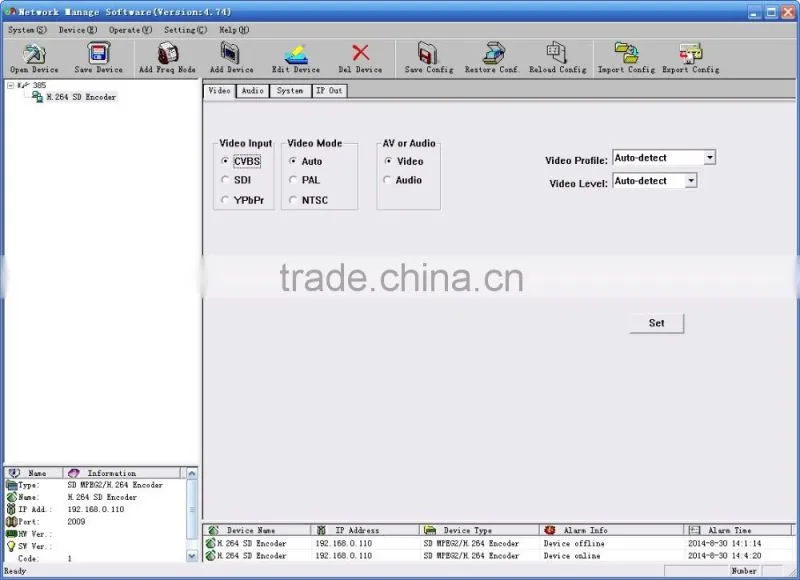

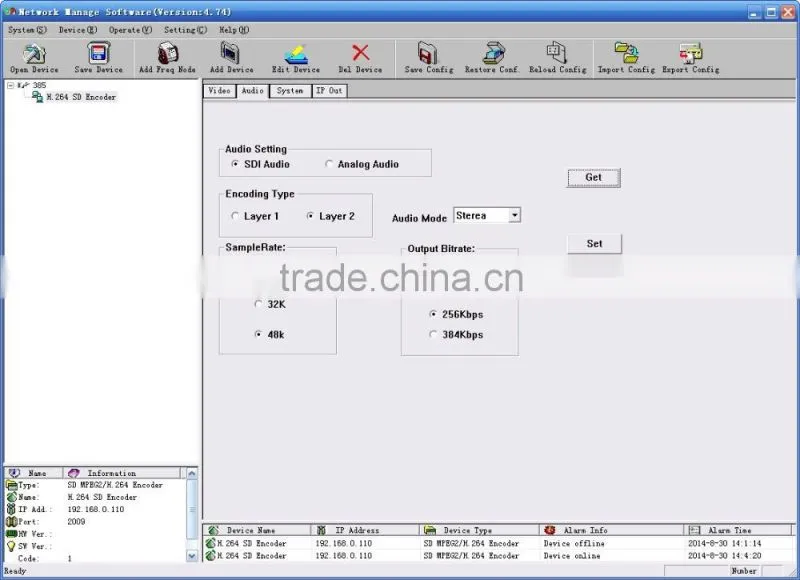

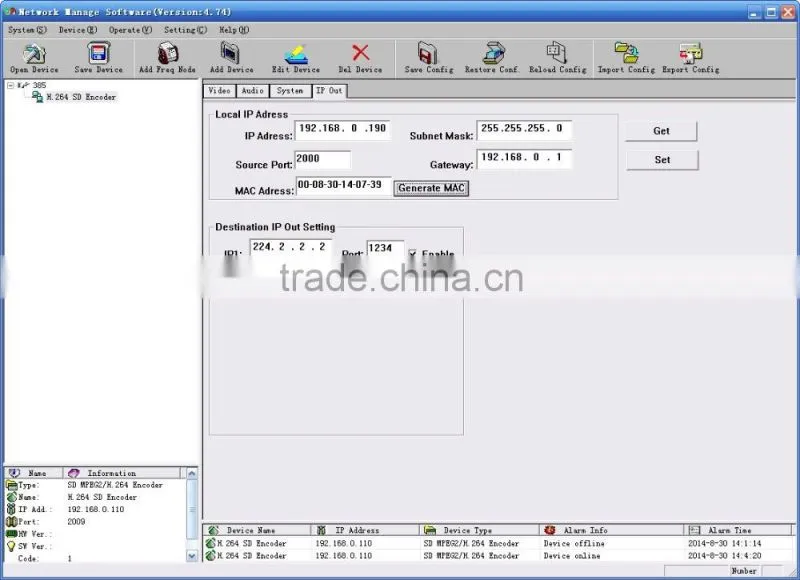

Management: LCD/keyboard, Network management software;
Technical Specification
Input |
1×CVBS input, BNC interface |
|
1 pair of unbalanced audio, BNC interface | ||
1×SDI input, BNC interface | ||
Video Coding |
H.264 High Profile Level 3.0 |
|
resolution: 720×480 NTSC/720×576 PAL | ||
single encoding code rate: 800Kb/s~20Mb/s | ||
advanced pretreatment: noise reduction sharpen | ||
Audio Coding |
MPEG-1 Layer 2 |
|
sampling frequency: 32KHz, 44.1KHz, 48KHz | ||
code rate: 128, 256, 384Kbps | ||
Output |
2×TS/ASI stream output, BNC interface |
|
IP/UDP (TS over IP), Unicast/Multicast,188bytes TS packets | ||
Standard |
ISO/IEC14496-10 (H.264/MPEG-4 AVC) |
|
Control |
LCD/keyboard, network management |
|
Ethernet software upgrade (10/100M Base-T Ethernet port) | ||
General Features |
Size |
482mm×280mm×44mm |
Temperature Range |
0~45°C(Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
