Help CenterMPEG-2 4IN1 SD SDI ts ip Video Encoder (Embedded Audio,4SDI In,ASI+IP/UDP Out)
Related Products
MPEG-2 4IN1 SD SDI ts ip video encoder (Embedded audio,4SDI in,ASI+IP/UDP out)
in:4 sd sdi,embedded audio
out:asi
edit psi/si,program name,number

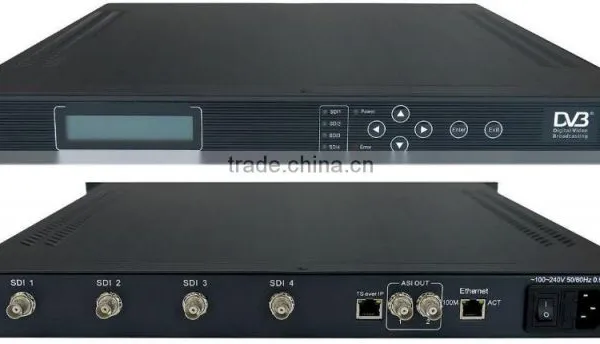

4*SD SDI MPEG-2 Encoder
Overview
4*SD SDI MPEG-2 Encoder is a MPEG-2 video and MPEG-1 audio encoder. It has 4×SDI input and IP/UDP+ASI out. The encoder suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Technical Specification
Input |
4×SDI(embedded audio), BNC interface, Level 1.0Vp-p |
||
Video |
Standard |
comply with CCIR601 standard, support 1/2D1, 2/3D1, 3/4D1 |
|
Resolution |
PAL,NTSC |
||
Encoding |
MPEG-2 coding adopt MP@ML (4:2:0) MPEG-2 Adaptive Field Frame (AFF) MPEG-2 Field-Based (FB) |
||
bitrate |
1.0~15Mbps continuously adjustable |
||
Audio |
Sampling |
32KHz, 44.1KHz, 48KHz |
|
Input |
1*SDI embedded audio |
||
Bitrate |
64, 128, 192, 256, 384Kbps |
||
Property |
MPEG-1 Layer2, 1×stereo or dual-channel |
||
Output |
ASI |
DVB standard, BNC interface |
|
IP |
RJ45 100mbps port, TS over UDP,SPTS/MPTS |
||
Total bitrate |
1-60mbps |
||
General Features |
Size |
482mm×280mm×44mm |
|
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
||
Power |
100-240VAC, 50Hz, 25W |
||
Order Guide
1113 |
MPEG-2 4IN1 SD SDI encoder(4SD SDI in,ASI+IP/UDP out) |
1104 |
MPEG-2 IP Encoder(SDI/AV in,ASI+IP/UDP out) |
1105 |
SD/HD H.264 Encoder(HDMI+SDI+YPbPr+CVBS/AUDIO in,ASI+IP out) |
1135 |
SD/HD H.264 4SDI Encoder(4 SD/HD SDI in,ASI+IP(UDP)/MPTS out) |

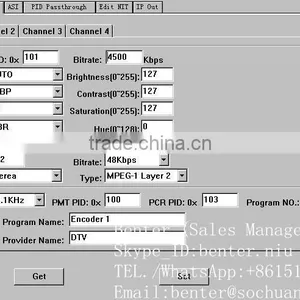

Network Management Software

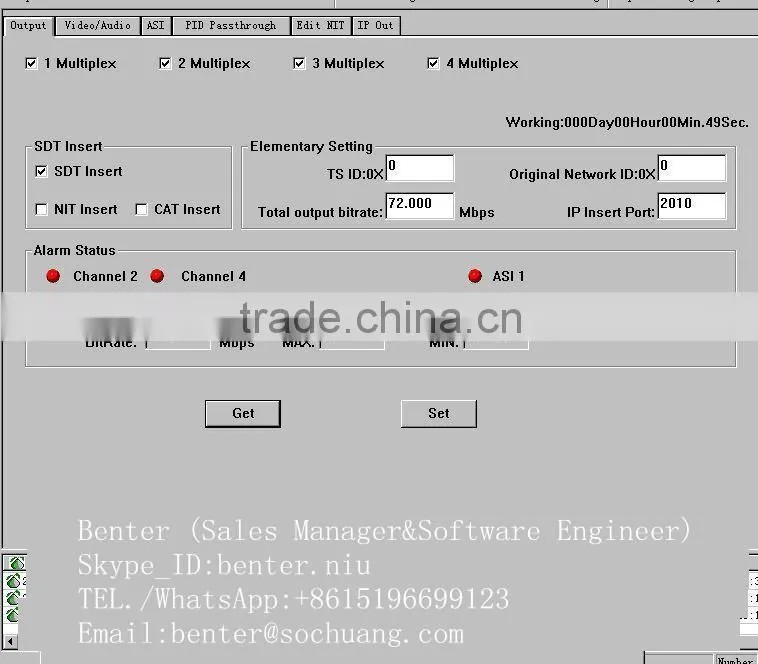

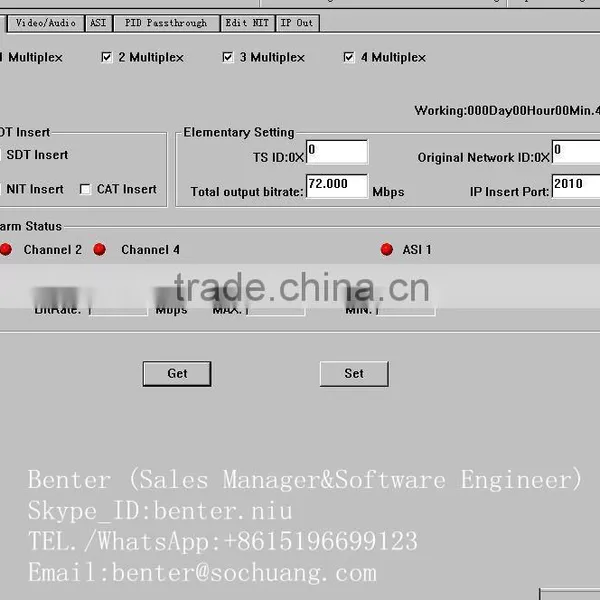

output setting:

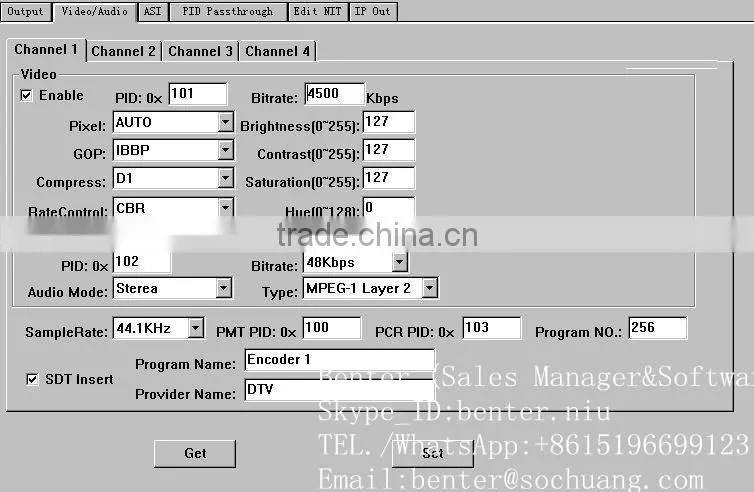

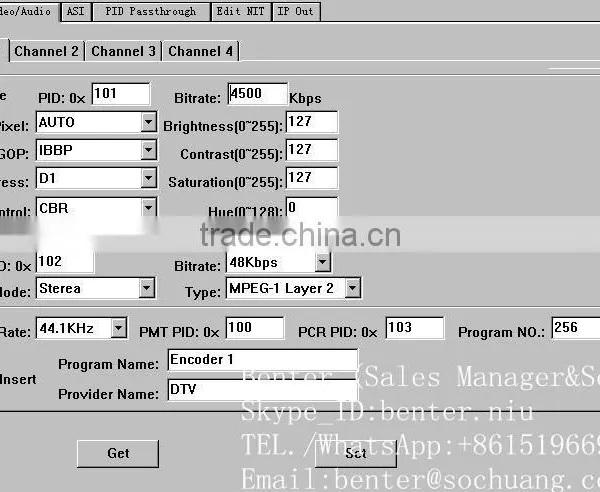

Video and audio setting:

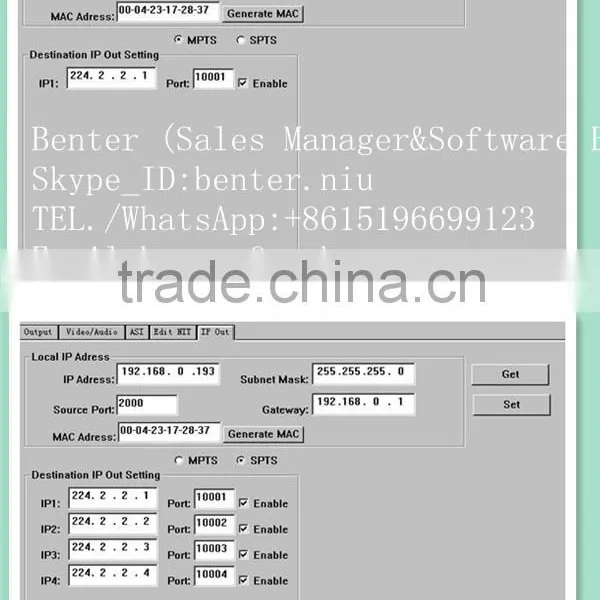

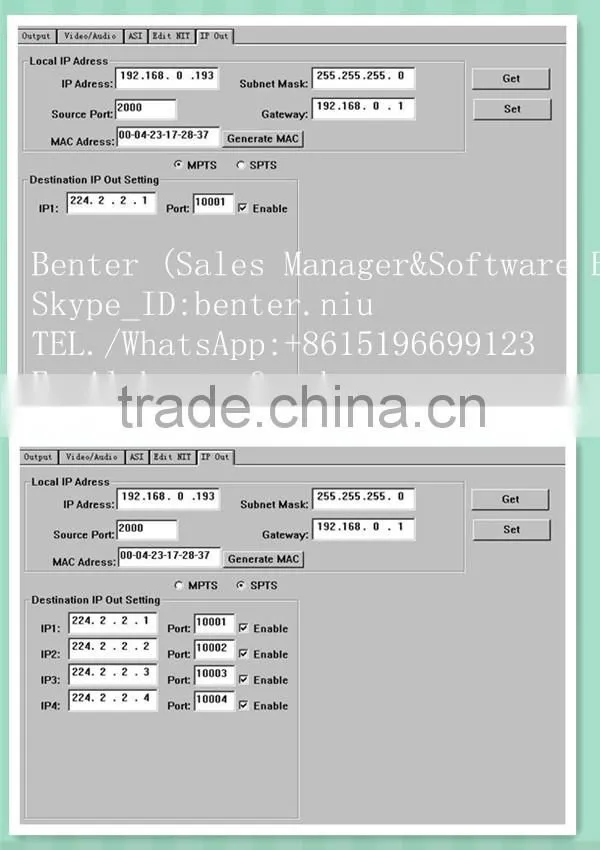

TS SPTS MULTICAST UDP out:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
