Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > SC-1302 Magum 4-channel IPTV Encoder

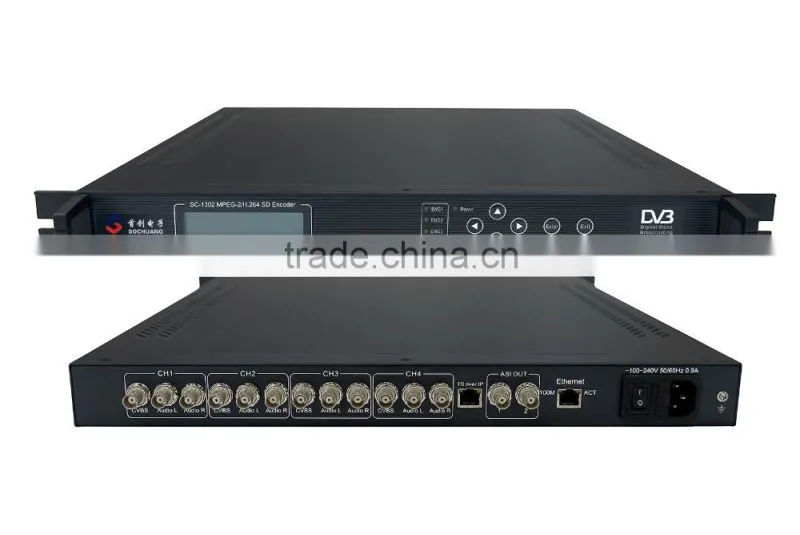

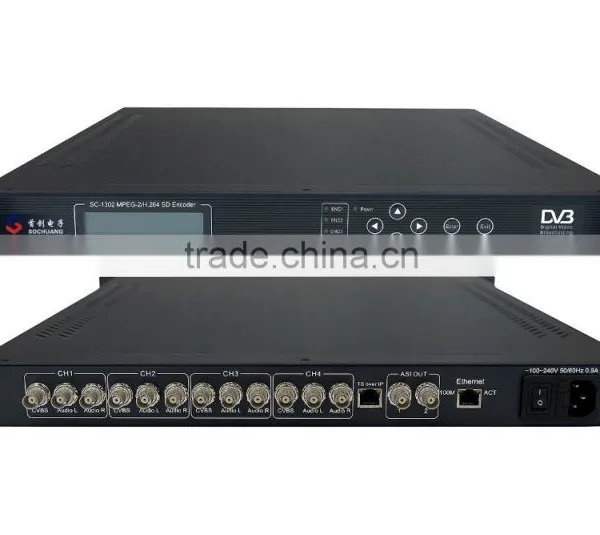

SC-1302 Magum 4-channel IPTV Encoder

Name: SC-1302 Magum 4-channel IPTV Encoder
Brand: SoChuang
SKU: 116092229
Availability: InStock

SC-1302 Magum 4-channel IPTV Encoder thumbnail-1

SC-1302 Magum 4-channel IPTV Encoder photo-1

US$ 1 - 1,800 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

SoChuang

Model Number:

SC-1302

Contact Supplier Request Quote Chat Now

Chengdu Sochuang Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name SoChuang

Model Number SC-1302

Product Description

Overview

SC-1302 SD 4-channel MPEG2/H.264 IPTV encoder has 4 channels analog composite video (4×CVBS) and 4 pairs of unbalanced audio (mono or stereo) input, supporting MPEG-2/H.264 video and MPEG-1 audio encoding, to generate DVB transport stream (TS/ASI) and 4×SPTS (TS over IP) output. It use Magnum chipset and can support low bitrate. Besides, this encoder suits 1U rack and provides front panel LDC operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.

Features

u Magnum, supporting low bitrate

u MPEG-2/H.264 video and MPEG-1 audio encoding

u 4×CVBS and 4 pairs of unbalanced audio (4×AV) input

u PID program name and program number edit

u LCD/Keyboard control by front panel and network management by Ethernet

Technical Specification

Input	Video	4×CVBS, BNC interface
Input	Audio	4 pairs of unbalanced audio, BNC interface
Video Coding	Encoding	MPEG-2/H.264 full D1
	Pixel	PAL: 720×576, NTSC: 720×480
	Frame Rate	25, 29, 97, 30fps
	Aspect Ration	4×3, 16×9, 1×1
	Bit Rate	0.5~7.5Mbps per channel
Resolution		352×240, 320×240, 320×180, 192×192, 160×120
Audio Coding	Sampling	32KHz, 44.1KHz, 48KHz
	Bit Rate	32, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320, 384, 448, 512, 576, 640Kbps
	Property	MPEG-1 Layer 2/HE-AAC/LC-AAC
Output	2×ASI	DVB standard, BNC interface
Output	IP Out	IP/UDP (Unicast/Multicast), network RJ-45 10/100 M base-Tx
Control		NMS (Ethernet Port), Keypad + LCD
General Features	Size	482mm×280mm×44mm
	Temperature Range	0~45°C (Operation); -20~80°C (Storage)
	Power	100-240VAC, 50Hz, 25W
