programmble moving led sign, P6-16x128dot RGB full color two/double line led sign with wireless SMS and PC USB control

programmble moving led sign, P6-16x128dot RGB full color two/double line led sign with wireless SMS and PC USB control

Specification:

PH:6mm

Color: full color
Resolution:16*128 dot

Display size: 96mmx768mm

Frame size: 785*115*35 mm

N.W: 1.7KG/Pcs

Frame material: Frame material  Aluminum

Power supply: Max 12V 1000mA (DC socket)/ 5V (USB) 1000mA

Control: Wireless  mobile SMS and PC USB

Language: Support multi-language

• Features
• 1.Semi-outdoor non-waterproof
• 2.Full colors
• 3. SMS mobile phone and PC software (USB)
• 4. No limitation on communication distance
• 5. Brightness and moving mode adjustable
• 6. SMS Communication just like sending short message with your friends. Insert your SIM card to card solt of product, the product have your phone number now.Then send message to this phone number.

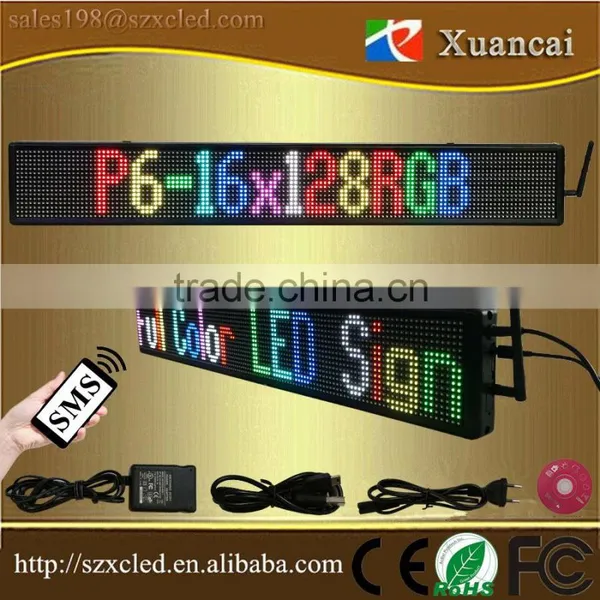

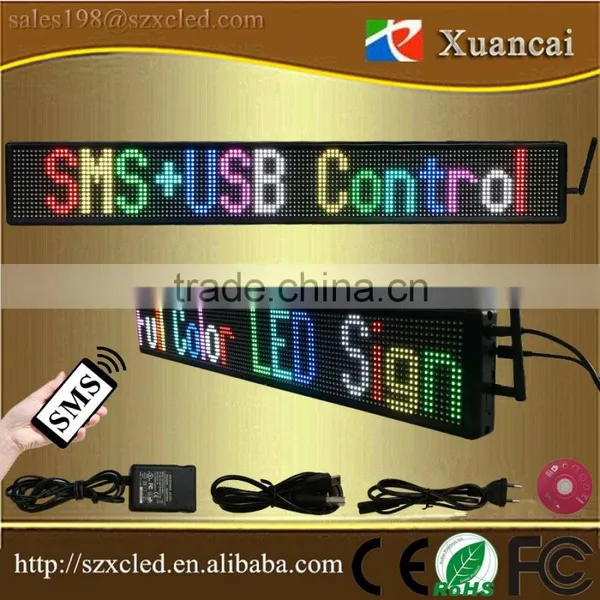

Accessories:

• 1)Infrared remote control

• 2)Power Adapter

• 3)Communication cable

• 4)Software CD

• 5) Bracket

Product Packaging

Operation method

led sign

a.) When bar screen powered on entering into the running state, at this moment
1. Press MENU to enter into the setting state(input the password, then run the information number/edit information number/change the password, etc.)
2. Press On/Off Button to turn on /off the display
b.) During the setting state
1. First displaying PW:*** and input the password:888
2. Press ENTER to entering into the setting state after inputting the right password then display:Run?
3. Press the up and down to switch the menu: Run:?/Edit:?/NP:***(new password)
4. Input the corresponding character and press ENTER to confirm
5. Choosing Edit information it will display Edit:?, then input the number and press ENTER to confirm and see Speed:?

input the number to change the stage of speed, then press ENTER to confirm and enter , set
the brightness Bright:?. input the corresponding character and press
ENTER to enter into method setting, press the up and down to change the
moving method, then press ENTER to enter and input character
6. Press CAP to switch between capital and lowercase (capital
display2.jpg , lowercase display1.jpg )press SHT and other key to input
the corresponding panel character. Press F2 display CLR? And press N to
return the inputting state, press Y to exit after clearing the current
message. Press (Up/Down Button)to choose other countries’ character
7. Press the right and left key to move position of inputting character. Press DEL to delete the current character,

press INS to insert a blank space
8. Press ENTER to save and exit
9. Stores up to 36 messages (0-9,a-z),6 stages of speed ,6 stages of brightness, 10. Methods of displaying your message;
(Left/Right/Up/Down/Flash/Static/Open/Close/Marquee /Snow/Auto)

        Shenzhen Xuancai Optoelectronics Co.,LTD ,founded in 2010,is one of the leading professional manufacturers

of LED products in China. With our Strong research and development team,Software and Hardware Engineers,

have 10 years experience in LED industry.Thus,we can provide various kinds of products on the requirements

by our clients.The specific series are on the below for your reference:LED moving signs, LED Message Signs,

LED Text & Graph display and Indoor/Outdoor Full-color LESiD displays etc.In addtion ,we have got
CE/ROHS/FCC certificates.And the concrete information ,pls review on
!

• A. We accept T/T, Paypal (extra 5% commission charge, not exceed
• 20dollars) or weston union.
• B. 30% deposit and 70% before shipping on T/T.
• C. No addtional fee during whole shopping process.

programmble moving double line full color led sign
*Direct designer and Manufacturer not merchant and customerized being
supported!
* Perfect appearance and design,good quality and High Cost Performance!
* Nice pre-sale and after-sale service can provide you worry-free
shopping!
The specific:

• No limitation on Pixel;
• No limitation on Pixel Pitch;
• No limitation on Size;
• No limitation on color;
• No limitation on Communication way only it is do;
• No limitation on Using place,not only the car nor the shop;
• No limitation on packing methods,etc.

FAQ

led sign
1:Do you think your products have the advantage on LED line?
#:We have got confidence to give a certain reply on this question.

Beacause we have got good competitive and quality in our products designed by us.
2:Where is your address of your factory and when we can pay a visit?
#:We are located in LongHua New District ,Shenzhen and anytime will be welcomed !
3:What's the warranty of your products ?
#:Among one year around.
4:What's your service life on your products?
#:About 100000 hours.
5:How about your afer-sale service?
#:This is an important issue for us and we provide 24 hours all day afer-sale by taking turn on duty

on Trademanage and generalized problems will be solved on our working time and others will be analyzed
and solved by our R&D department if on occasion.

Any other enquiry will be welcomed anytime ! ^^^
