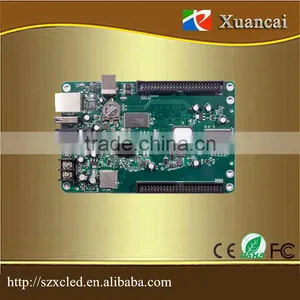

With 4GByte SD Card, Support U/flash Disk Led Display Control Card

US$ 80 - 110 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

BX-YQ1

Tube Chip Color:

Full Color

Shenzhen Xuancai Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number BX-YQ1

Tube Chip Color Full Color

Display Function Video

Screen Dimension 384*256

Technical parameters:

Product name	BX-YQ1
Products status	Put into the market in Decmeber, 2014.
Control area	384*256
Gray scale	65536grade
Screen types	All kinds of LED full color screen
Memory storage	With 4GByte SD card, support U/flash disk or import the programs to the SD card
Software function	Groups cluster management/multi-program editing/multi-area display/multi-language version
Program type	Normal/global announcement
Program quantity	Support 512 programs, each program with 8 areas
Area type	Image/text/subtitle/video/lunar/time/dial/timer/temperature/temperature & humidity/noise/ weather forecast
Clock mode	Lunar/dial/ clock in Chinese and English/timer (all support multi-groups)
Communication port	Support 100M Ethernet and 3G wireless sending
Interface	2 nos 50pin interface, 16nos RGB data
Sensor supported	Temperature/temperature & humidity/noise/brightness
Remote control	Brightness adjustment/ Saturation adjustment/volume adjustment/select program/power on & off/screen test
Brightness	256 grades brightness, support auto-timing adjustment/software adjustment/remote control/auto adjustment
Power on/off	Support auto-timing power on & off/software power on & off
Working voltage	5V(4.5V-6.5V wide voltage; we suggest supply power alone to the card)
Maximum power	≤4W
Working temperature	-40℃~80℃
SDK	Support DLL, or part of the protocol
Software	LedshowYQ 2015
User manual	"LedshowYQ user manual"
Adapter	HUB-T75A HUB-T74A HUB-T90 only for BX-V/YQ series
