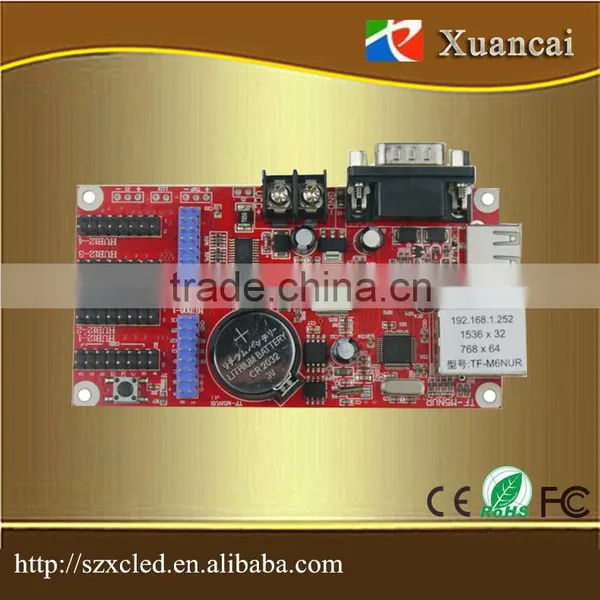

Multi-area Network Communication Lan Port Led Display Control Card

Name: Multi-area Network Communication Lan Port Led Display Control Card
Brand: Xuancai
SKU: 116087299

US$ 10 - 50 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Xuancai

Model Number:

TF-M6NUR

Shenzhen Xuancai Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Xuancai

Model Number TF-M6NUR

Usage Other, indoor/outdoor, indoor/outdoor

Tube Chip Color Other, Single colour/couple colour

Display Function Animation

Screen Dimension Single colour1536x32;768x64 Double colour768x32;384x64

Product Description

Model	TF-M6NUR
Function introduction	Multi-area displays,network communication,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card.
Usage	indoor/outdoor
USB function:	USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
Pixel	Single colour1536x32;768x64 Double colour768x32;384x64
Ports	two 08 port; four 12 ports
Scanning mode	support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Storage	2M
Program number	Storage for maximum program number:20.Supported windows,with no more than 10 items for each.
Display	rain,fountain,scroll and much more
Border	support many Color border,Picture border
Flash format	support GIF,SWF
Image format	support BMP,JPG,GIF,WMF,ICO
Brightness	Level 16 highlighted,support manual
Screen switch	manual
Test button	On-board test button,Can switch over the
Extension function:	Temperature sensor,Temperature&humidity sensor,Brightness sensor(Diagram for connection),RF,Monochrome expand height,Through to 75 full-color interface.
Electrical parameters	+5V DC(4.5V~6V),Power consumption<0.5W
Working temperature	-30℃~70℃
Size	105mm*55mm
