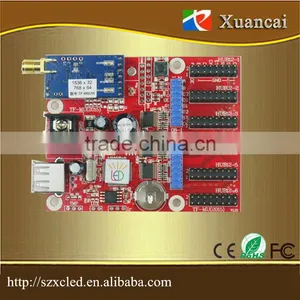

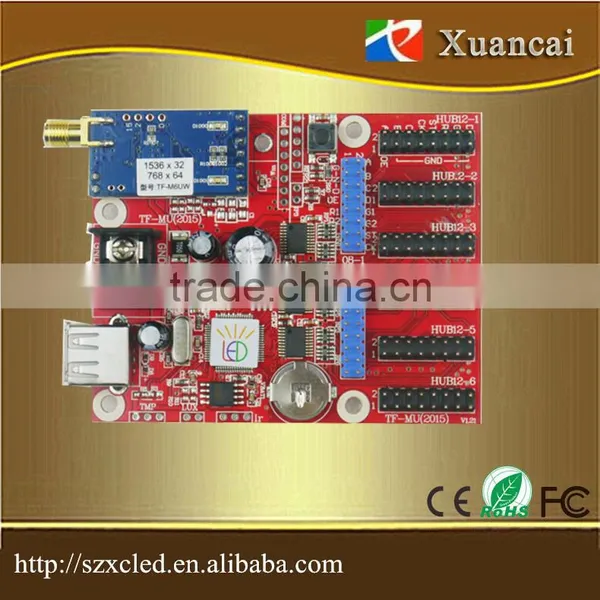

USB Brightness Adjustment WIFI+U Disk Led Display Control Card

Name: USB Brightness Adjustment WIFI+U Disk Led Display Control Card
Brand: Xuancai
SKU: 116087239

US$ 1 - 50 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Xuancai

Model Number:

TF-M6UW

Shenzhen Xuancai Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Xuancai

Model Number TF-M6UW

Usage Other, indoor/outdoor, indoor/outdoor

Tube Chip Color Other, Single/couple colour

Display Function Animation

Pixels 10mm

Screen Dimension Single colour 1536x32;768x64;Double colour 768x32;384x64

Product Description

Model	TF-M6UW
Function introduction	More arbitrary division,dazzle colour border area,WIFIcommunication
Usage	indoor/outdoor
Pixel	Single colour 1536x32;768x64;Double colour 768x32;384x64
USB fuction	USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
Ports	two 08 port; six 12 ports
Scanning mode	support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Storage	2M
Program number	Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.(Quantity in storage space under the premise of memory)
Display	rain,fountain,scroll and much more
Border	support many Color border,Picture border
Flash format	support GIF,SWF
Image format	support BMP,JPG,GIF,WMF,ICO
Communication way	Stand-alone,LAN,Intenet remote cluster management
Brightness	Level 16 highlighted,support manual
screen switch	manual
Test buttons	Test buttons on-board,can switch over to test mode.
Extension function:	Temperature sensor/Temperature&humidity sensor(Diagram for connection),Monochrome expand height,Through to 75 full-color interface.
Electrical parameters	+5V DC(5.0V~6V),Power consumption<3W
Working temperature	-30℃~70℃
Size	56mm*88mm
