LD Light Source Type/Palm OTDR(T-OT300)

Name: LD Light Source Type/Palm OTDR(T-OT300)
Brand: OEM/SKYCOM
SKU: 116050285
Availability: InStock

US$ 1,000 - 1,400 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

OEM/SKYCOM

Model Number:

T-OT300

Nanjing Tianxingtong Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NANJING SHANGHAI QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name OEM/SKYCOM

Model Number T-OT300

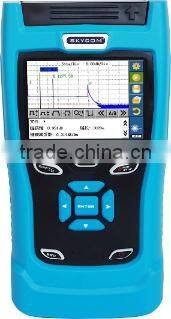

LD Light source type/Palm OTDR(T-OT300)

Description

T-OT300 handhold OTDR is mainly used for the following tests:

-Determine fiber optic cable or fiber optic’s failure point, connection point, break point position
-Describe fiber optic cable or fiber’s loss distribution curve, measure cable, fiber’s length and the loss, attenuation coefficient between two points
-Measure fiber optic cable, optical fiber connector’s insertion loss
-Measure fiber optic cable, optical fiber’s reflection loss;

Technical Specifications

Model		T-OT300
Dynamic (1)		32/30dB
Wavelength (±20 nm)		1310/1550
Display		3.5' TFT LCD touch screen
Light source type		LD
Optical interface		FC/UPC
Distance range (km)		0.3,1,5,10,30,60,120
Pulse width (ns)		5,10,20,40,80,160,320,640,1280,2560,5120,10240,20480,Auto
Measurement duration		15s,30s,1min,2min,3min
Attenuation dead zone (2)		10m
Event dead zone		1.8m
Distance measurement precision		±(1 m + 5 x 10-5 x Distance + Sampling interval)
Data storage		> 60000 test traces
Communication interface		USB
VFL	Wavelength	-	650nm
	Output power (dBm)	-	≥ -3
	Test distance (km)	-	3
Optical Communications Test		YES
