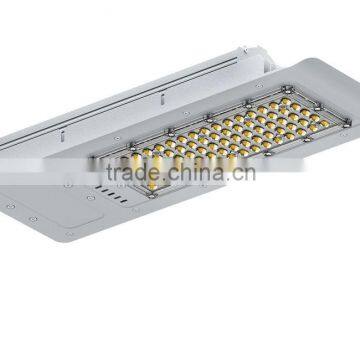

Slim Integral Housing 90W LED Street Light

LD4A-4 – Slim Integral Housing 90W LED Street Light

Input

85~265Vac, 50Hz / 60Hz, PF>0.95

Wattage

90W

Flux

9,000lm, typical

Optical efficacy

90 ~ 110lm/W

Correlated color temperature (CCT)

3000K/4000K/6000K

Color rendering index (CRI)

70/80

Driver

External IP67 isolated constant-current power driver

Safety & EMC

UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65/IP67, J61347-1, J61347-2-13; UL60950-1, TUV EN60950-1

I/P-O/P:3.75KVAC  I/P-FG:2KVAC  O/P-FG:0.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70%RH

EN55015, EN55022 (CISPR22) Class B, EN61000-3-2  Class C (>=50% load) EN61000-3-3

EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024

Housing

High pressure die-casting aluminum housing

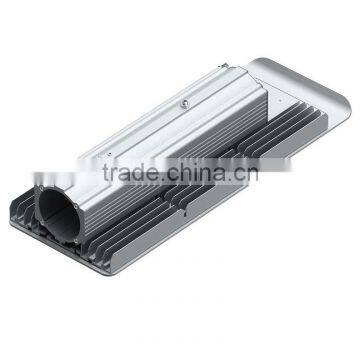

Heatsink

Whole structure heatsink

LED array

EMC 3030, x77pcs

Temperature

-40ºC ~ +50ºC (operation)

-25ºC ~ +65ºC (storage)

Humidity

Up to 99% RH

Protection

IP67, wind resistance grade 17

Certifications

CE, RoHS, FCC

Lifespan

>50,000H

warranty

5 years

Installation

Ø40 / Ø60mm pole diameter, optional adapter allows pitch adjustment in 120º

Net weight

2.5kg

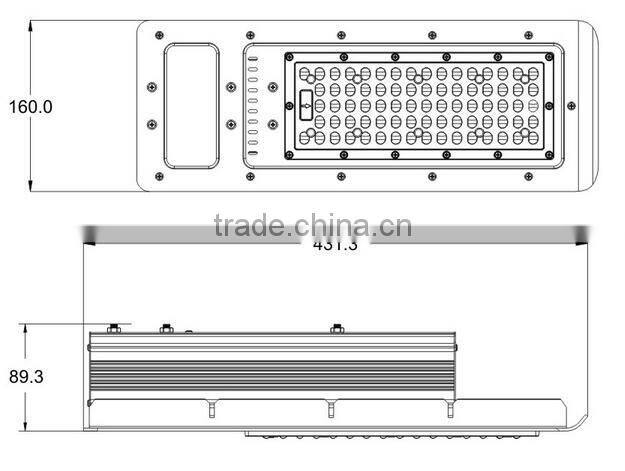

Dimensions

L431xW160xT90

Packaging size/weight

Carton 47.5*21.5*14.5, Gross weight 3kg

Price

USD 43.00 / piece

Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract.

Related datasheets and test reports are provided upon request.
