Lumileds Slim Housing Heatsink LED Street Light 60W
LD4A-3 LED street light 60W is an economical solution to street lighting retrofit projects. It features integrated structure, IP67 protection level and grade-17 wind resistance. Reliable Meanwell® driver guarantees its lasting 5-year lifespan. Well-design light pattern is applicable for various road lighting demands.
LD4A-3 – Lumileds Slim Housing Heatsink LED Street Light 60W | |
Input |
85~265Vac, 50Hz / 60Hz, PF>0.95 |
Wattage |
60W |
Flux |
6,000lm, typical |
Optical efficacy |
90 ~ 110lm/W |
Correlated color temperature (CCT) |
3000K/4000K/6000K |
Color rendering index (CRI) |
70/80 |
Driver |
External IP67 isolated constant-current driver |
Safety & EMC |
UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65/IP67, J61347-1, J61347-2-13; UL60950-1, TUV EN60950-1 I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70%RH EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>=50% load) EN61000-3-3 EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 |
Housing |

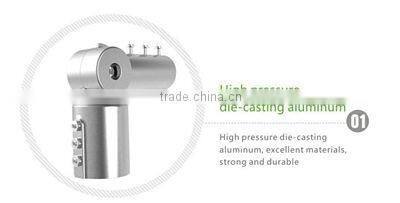

High pressure die-casting aluminum housing |
Heatsink |
Whole structure heatsink |
LED array |
Lumileds LUXEON 3030 2D , x54pcs |
Temperature |
-40ºC ~ +50ºC (operation) |
-25ºC ~ +65ºC (storage) | |
Humidity |
Up to 99% RH |
Protection |
IP67, wind resistance grade 17 |
Certifications |
CE, RoHS, FCC |
Lifespan |
>50,000H |
warranty |
5 years |
Installation |

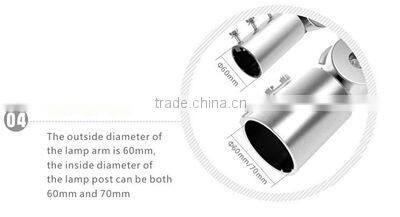

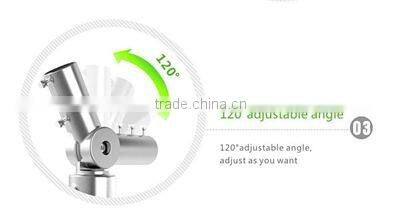

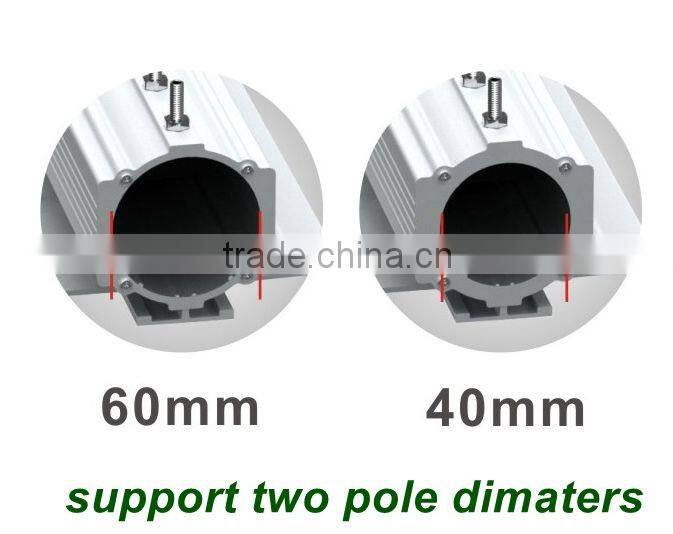

Ø40 / Ø60mm pole diameter, optional adapter allows pitch adjustment in 120º |
Net weight |
1.8kg |
Dimensions |
L431xW160xT89 |
Packaging size/weight |
Carton 47.5*21.5*14.5, Gross weight 2.8kg |
Price |
USD 35.00 / piece |
|
Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract. Related datasheets and test reports are provided upon request. | |

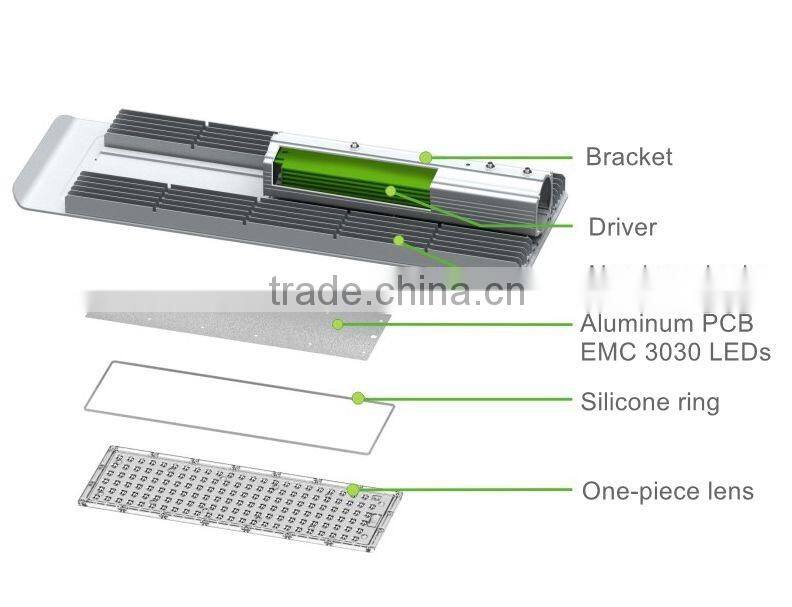

Exploded view of the slim LED street light

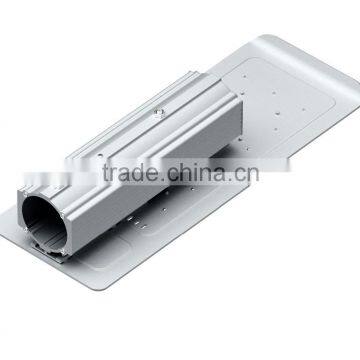

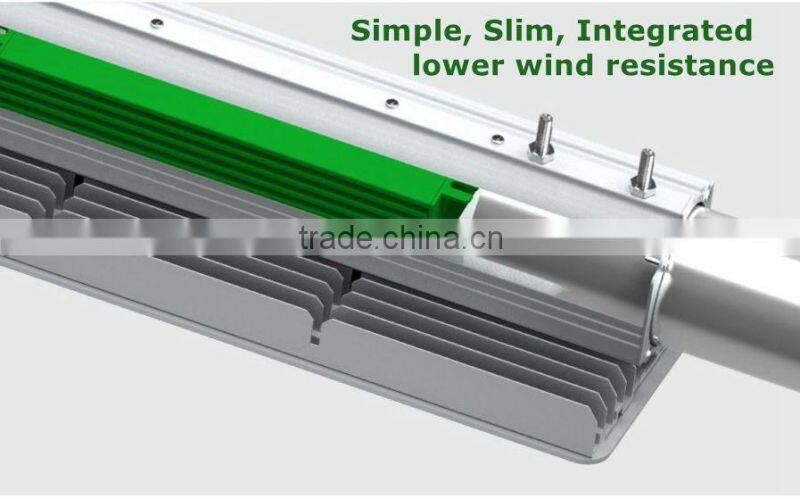

LED street light housing -- One-piece integral structure, high protection level
|
|
|
|
Slim 60W LED street light -- thermal test results

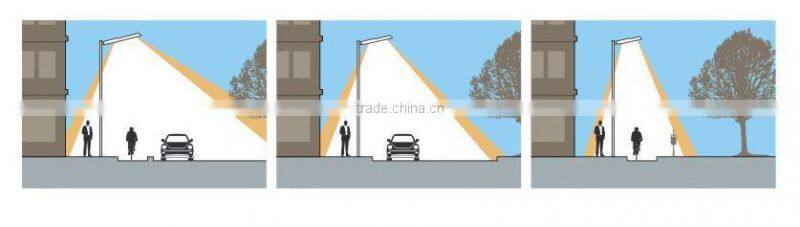

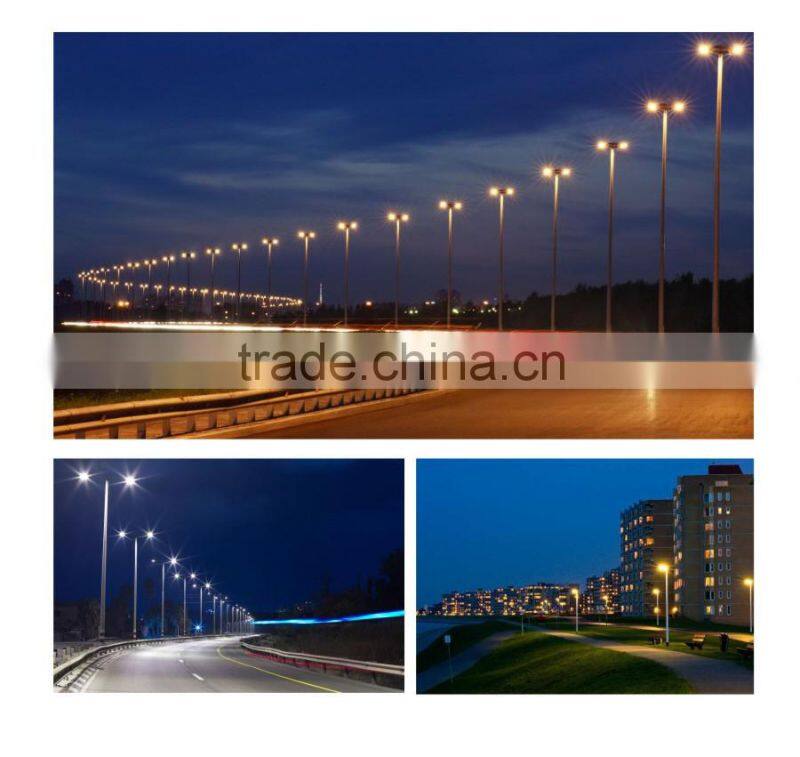

Typical applications - highway lighting, road lighting, sidewalk lighting

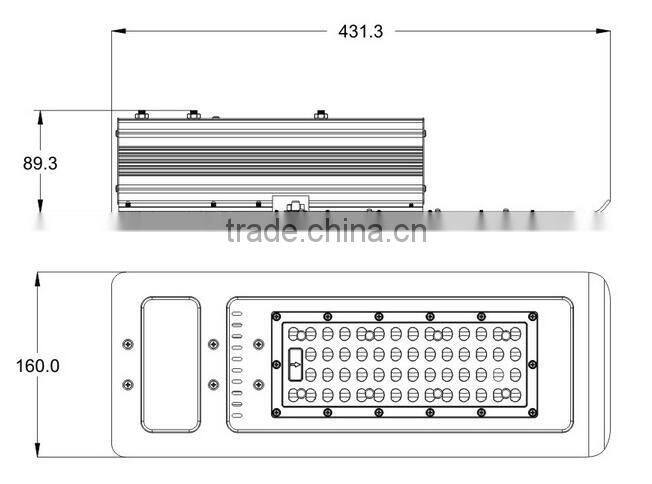

Dimensions
