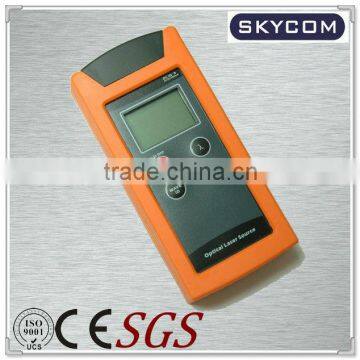

Help CenterOptical Fiber Power Meter From China Supplier
Related Products
-
Optical Fiber Power Meter From ChinaUS$ 30 - 200MOQ: 1 Piece -
Optical Pon Power Meter(T-PO500V10)US$ 250 - 300MOQ: 1 Set
-
PON POWER METER (T-PO500V10)/VFL/10mWUS$ 200 - 260MOQ: 1 Set
-
SKYCOM Optic Power Meter T- OP300 With Connector OPM/VFLNegotiableMOQ: 1 Set
-
SKYCOM Optical Power Meter T-OP300 (made in China)NegotiableMOQ: 1 Set
1) High resolution: 0.01dB;
Good accuracy:±0.2dB;
2) Insertion loss test in dB;
3) SM or MM applications;
4) FC/PC and 2.5mm universal connector;
5) 850/1300/1310/1490/1550/1625nm
Calibrated CW wavelengths;
6) T-OP100E is for telecom testing,
T-OP100H is for CATV testing;
7) Energy save mode: about 10 minutes
no operation will cause the device
automatic power off (can be cancelled);
8) Reference value storage;
9) Full energy can support above 100
hours operation;
Main Characteristic
|
T-OP100E |
T-OP100H |
Display Range |
+10 ~ -70dBm |
+26 ~ -50dBm |
Accuracy * |
± 0.2dB |
|
Calibrated Wavelengths |
850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm |
|
Resolution |
0.01dB |
|
Connecting Adapter |
FC/PC & 2.5mm Universal |
|
Reference Value storage |
Yes |
|
Automatic Power Off |
No operation in 10 minutes (can be cancelled), Low battery energy |
|
Battery Charge |
Yes |
|
Battery Life |
Above 100 hours (1800mAH battery) |
|
Storage Temperature |
-20 -- +60 °C, < 90%RH |
|
Operating Temperature |
-10 -- +50 °C, < 90%RH |
|
Power Supply |
AA * 2 batteries or AC/DC power supply adapter |
|
Size |
160mm * 75mm * 32mm |
|
Weight |
About 180g |
|
* at 20±3°C, CW, with FC connector, -10dBm
* For 850nm/1300nm, the Min. Power measurement is -60dBm@BPM100, -40dBm@BPM101
Accessories
Standard |
Carrying bag |
1 |
User’s manual |
1 |
|
Calibration certification |
1 |
|
Optional |
AC/DC adapter |
1 |
