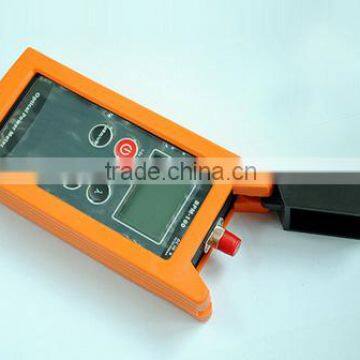

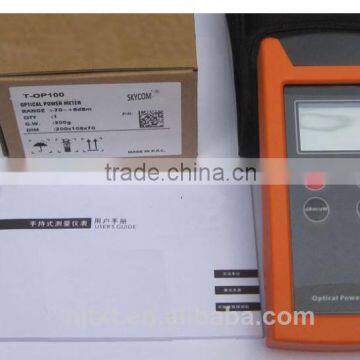

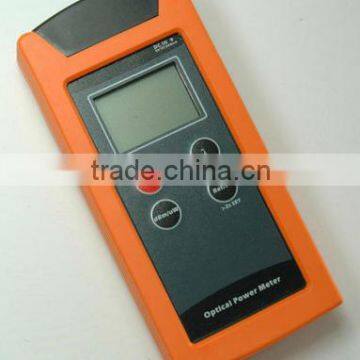

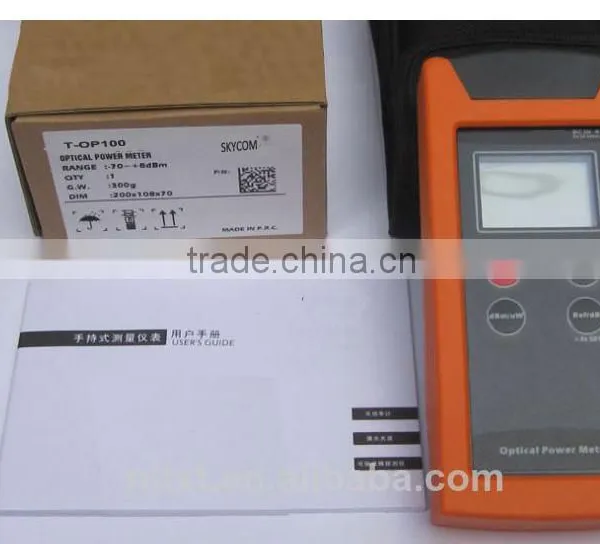

Optical power meter T-OP100 good price

Name: Optical power meter T-OP100 good price
Brand: SKYCOM
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Jiangsu, China

Brand Name:

SKYCOM

Model Number:

T-OP100

Product Description

1) High resolution: 0.01dB;

Good accuracy:±0.2dB;

2) Insertion loss test in dB;

3) SM or MM applications;

4) FC/PC and 2.5mm universal connector;

5) 850/1300/1310/1490/1550/1625nm

Calibrated CW wavelengths;

6) BPM100 is for telecom testing,

BPM101 is for CATV testing;

7) Energy save mode: about 10 minutes

no operation will cause the device

automatic power off (can be cancelled);

8) Reference value storage;

9) Full energy can support above 100

hours operation;

Main Characteristic

	T-OP100E	T-OP100H
Display Range	+10 ~ -70dBm	+26 ~ -50dBm
Accuracy *	± 0.2dB
Calibrated Wavelengths	850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Resolution	0.01dB
Connecting Adapter	FC/PC & 2.5mm Universal
Reference Value storage	Yes
Automatic Power Off	No operation in 10 minutes (can be cancelled), Low battery energy
Battery Charge	Yes
Battery Life	Above 100 hours (1800mAH battery)
Storage Temperature	-20 -- +60 °C, < 90%RH
Operating Temperature	-10 -- +50 °C, < 90%RH
Power Supply	AA * 2 batteries or AC/DC power supply adapter
Size	160mm * 75mm * 32mm
Weight	About 180g

* at 20±3°C, CW, with FC connector, -10dBm

* For 850nm/1300nm, the Min. Power measurement is -60dBm@BPM100, -40dBm@BPM101

Accessories

Standard	Carrying bag	1
	User’s manual	1
	Calibration certification	1
Optional	AC/DC adapter	1
