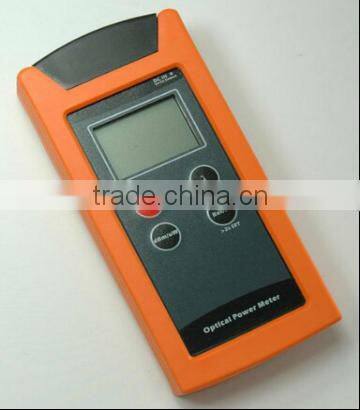

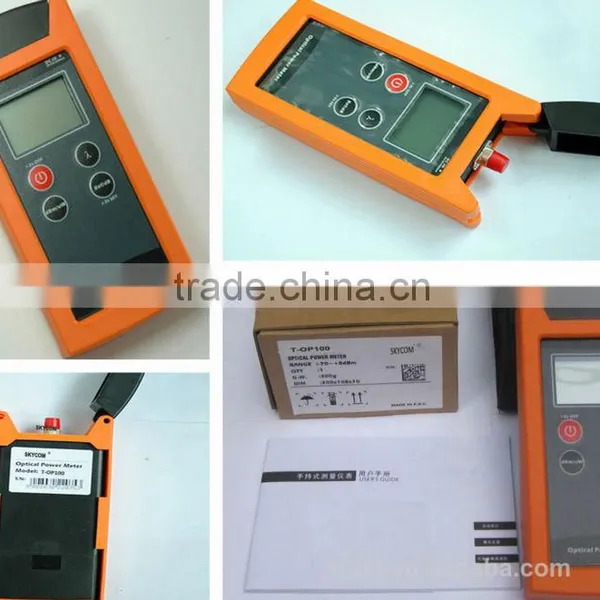

China Optical Power Meter T-OP100 Handheld

China Optical Power Meter T-OP100 Handheld thumbnail-1
China Optical Power Meter T-OP100 Handheld thumbnail-2
China Optical Power Meter T-OP100 Handheld photo-1
China Optical Power Meter T-OP100 Handheld photo-2
US$ 30 - 100 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SKYCOM
Model Number:
T-OP300
Contact Supplier Request Quote Chat Now
Nanjing Tianxingtong Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name SKYCOM
Model Number T-OP300



T-OP300 Optical Power Meter















Features



FC, SC, ST adapters and 2.5mm UPP



Energy save mode;



Built in VFL (optional)



Reference value storage



850/1300/1310/1490/1550/1625nm











SPECIFICATIONS



Model

T-OP300T

T-OP300C

Measurement Range(dBm)

+10~-70dBm

+26~-50dBm

Accuracy *

± 0.2 dB

Calibrated Wavelengths

850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm

Resolution

0.01dB

OPM Connector

2.5mm UPP and FC interchangeable (SC, ST optional)

VFL Connector

2.5mm UPP

Reference Value storage

Yes

Auto Power Off

No operation in 10 minutes (can be canceled), Low battery energy

Battery Charge

Yes



Battery Life

Above 100 hours (1800mAH battery)

Power Supply

AA * 2 batteries or AC/DC power supply adapter





* at 20±3℃, CW, with FC connector, -10dBm,



For 850nm, the Min. Power measurement: -60dBm@OP300T, -40dBm@OP300C





GENERAL SPECIFICATIONS



Size(H*W*D)

160mm *75mm * 32mm

Weight

about  180g

Storage Temperature

-20 -- +60 ℃, < 90%RH

1

Operating Temperature

-10 -- +50 ℃, < 90%RH





ACCESSORIES



             Standard

Optional

Carrying bag*1

SC interchangeable connector*1

Calibration Certificate*1

ST interchangeable connector*1

1

User′s manual*1

FC male to LC female adapter*1



AC/DC adapter*1
