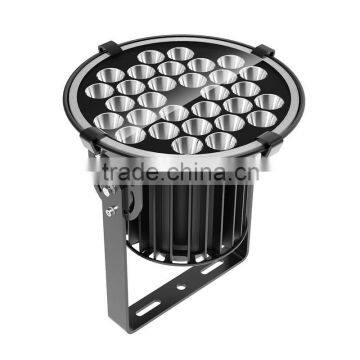

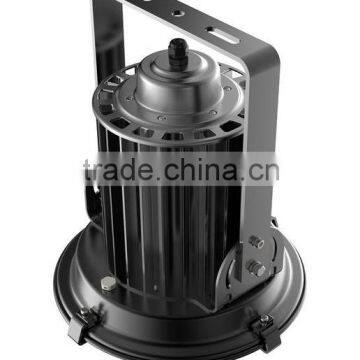

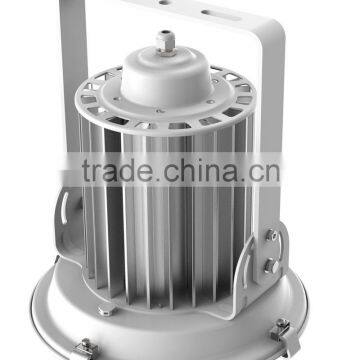

Outdoor Superdistance Narrow Beam 100W LED Spotlights
- Super-distance, narrow beam, unique light pattern for large architectural appearance lighting
- Power100W, lumen output 10,000lm, rugged construction
- Robust construction, IP65 protection level, five-year warranty
TS100 –Outdoor Narrow Beam 100W LED Spot Light | |
Input |
90~305Vac / 127~431Vdc, 50Hz / 60Hz, PF>0.95 |
Wattage |
100W |
Flux |
10,000lm, typical |
Optical efficacy |
90 ~ 110lm/W |
Correlated color temperature (CCT) |
3000K/4000K/6000K |
Color rendering index (CRI) |
70/80 |
Beam angle |
5/10/20/30/60° |
|

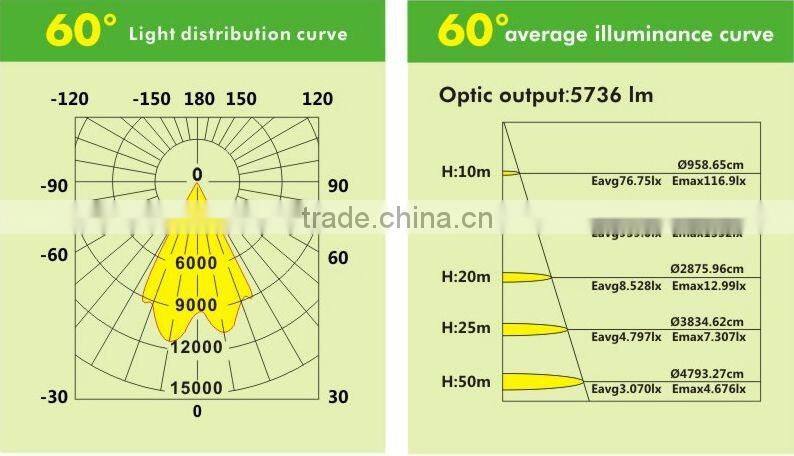

Average luminance (60°) |
Height 50m: average 3.07lx, max 4.68lx |
Height 25m: average 4.80lx, max 7.30lx | |
Height 20m: average 8.53lx, max 12.99lx | |
Driver |
Meanwell HLG-150H-36A |
Safety & EMC |
UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65/IP67, J61347-1, J61347-2-13; UL60950-1, TUV EN60950-1 I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70%RH EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>=50% load) EN61000-3-3 EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 |

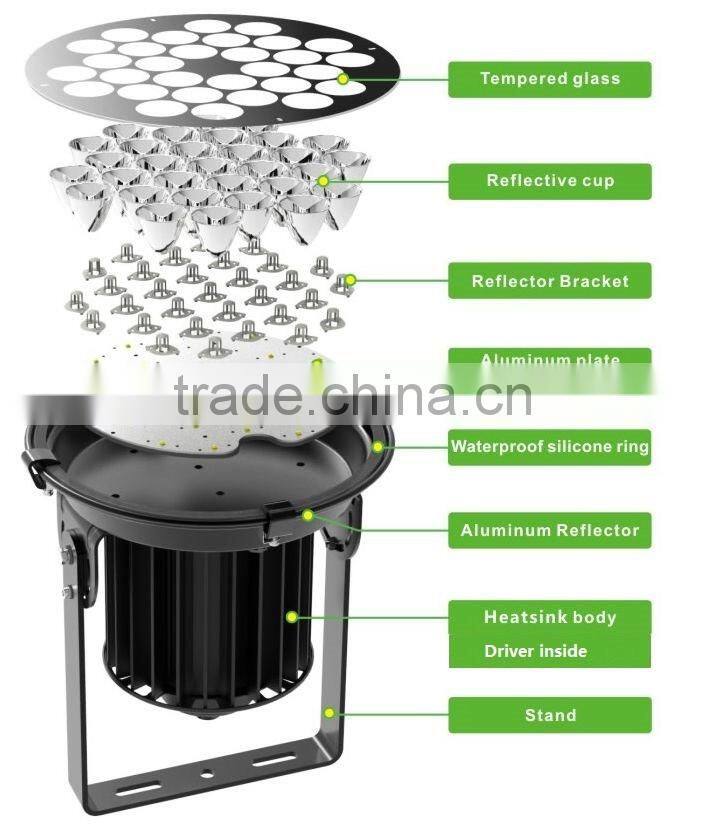

Housing |
Die-casting aluminum |
Heatsink |
Aluminum fins |
LED array |
SMD3535, x30pcs |
Temperature |
-40ºC ~ +50ºC (operation) |
-25ºC ~ +65ºC (storage) | |
Humidity |
Up to 99% RH |
IP rating |
IP65 |
Certifications |
CE, RoHS, FCC |
Lifespan |
>50,000H |
warranty |
5 years |
Installation |
Bolting, angle adjustable |
Net weight |
6kg |
Dimensions |
Ø316xH347mm |
Packaging size/weight |
Carton 37.5x37.5x37.5cm, Gross weight 7 kg |
Price |
USD 128.00 / piece |
|
Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract. Related datasheets and test reports are provided upon request. | |
Optics

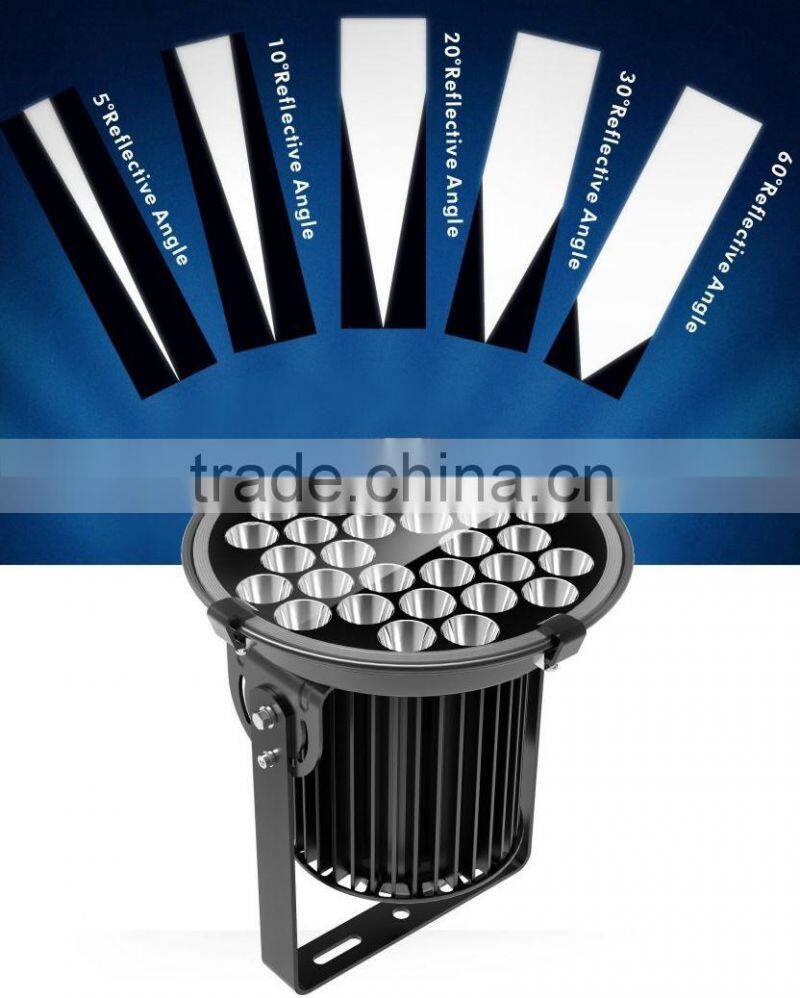

Reflector 5º, 10º, 20º, 30º, 60º selectable to create light patterns for various requirements
High-purity AL1090 aluminum reflection cup with anodizing and polishing treatment
Applications

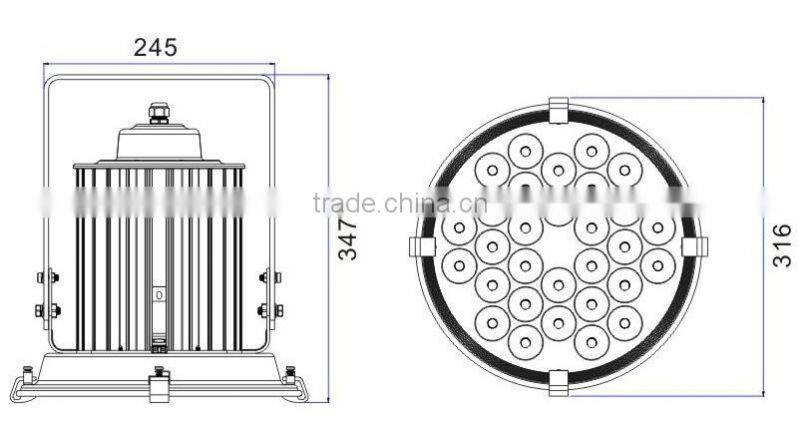

Dimensions

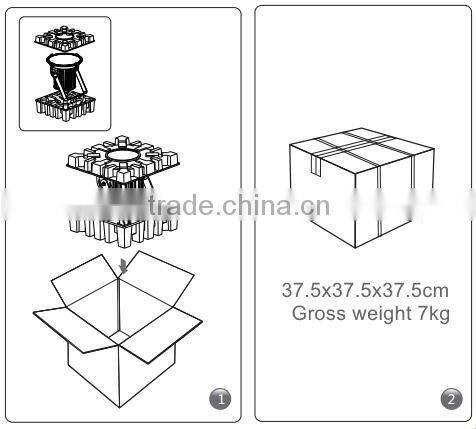

Package
