Hydraulic vibro rippers
- 30 Piece / Pieces per Month
- shanghai
- T/T
- Internal gear 40cr 41A0076 for Liugong loader parts ,axle parts
- Liugong Wheel loader parts Liugong spare parts SP104817 Gland
- Liugong Spare parts Castle nut 03B0050 Standard parts for Liugong Wheel loader parts
- Conical roller bearing 23B0019 Standard parts for Liugong Wheel loader parts
- Liugong spare parts flasher relay 31B0005 fpr Liugong Wheel loader parts
- Air tank assembly ,pressure controller 13C0015 for Liugong Wheel loader parts
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | RAY | Model Number: | RAY-135 |
Product Description
It’s a new generation attachment recently developed and manufactured to effectively excavate, crush and destroy the soft rock mass such as rocks weathered by wind and water, hard soil, slate, quartz, concrete and Asphalt.
Vibro ripper makes light work of ripping the soil to make excavation productive and easier. Practically no modification is required to switch from working on land to water. Also, inexpensive easily replaceable wear tool is provided for economical operation, this can be changed according to the strata to be ripped.

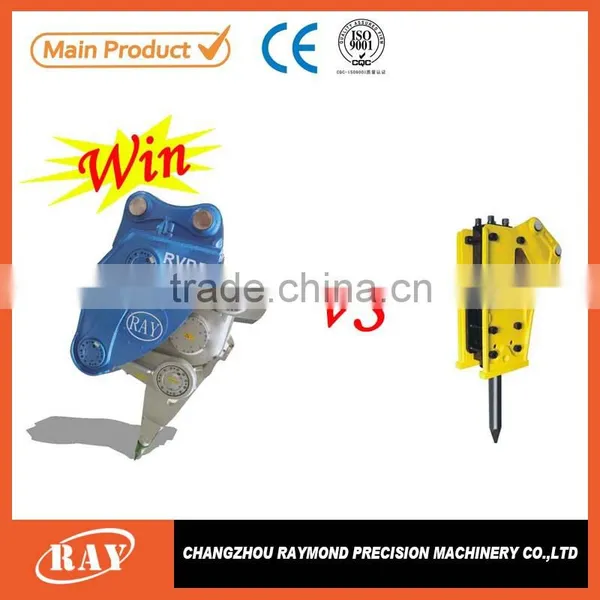

1. Enhance 3-5 times higher output (compare with regular breaker equipment)
2. Reduce synthesize fuel consumption
3. Reduce unit output emission load
4. Work under water and subsurface without refit (Vibration casing is )
5. Minimum damage to excavator's bumps and arms (protect excavator)
6. Enhance comfort level during operate
7. Minimum operating noise (working noise is only 50-75 db)
8. Lower maintain
9. Lower vulnerable part cost
10. Enhance parts and full equipment working life
1. Import motor from Germany and France. The quality is reliable and more efficiency.
2. The traditional suspension method used the rubber to damping. It will restrict the vibrational frequency . But we used the Level vibration case to avoid this situation.
3. The prestress reduce point to reduce the impact force to protect the body case.
4. Wear-resistant steel teeth. The root is imported. It is durable.
The leading technology in the global market
Coaxial double motors Superposition type double motors
Extra spare parts for free
1. Bucket teeth: 2 pieces
2. Air spring: 2 pieces ,
3. Damping device: 1 piece
4. Common tools: a few of pieces
5. Thermometer: 1 piece
6. Inflation device: 1 set
Rich experience
1. Make sure of the weight of your excavator.
Type | RVR-20 | RVR-30 | RVR-50 | RVR-60 | RVR-E6 | RVR-E7 | |
Excavator(T) | 15-20 | 22-26 | 30-33 | 36-45 | 50-60 | 70-100 | |
Working flow(L/min) | 150-180 | 150-200 | 160-250 | 260-295 | 290-350 | 290-360 | |
Working pressure(Mpa) | 220-240 | 230-240 | 230-250 | 240-260 | 240-260 | 250-280 | |
Size | Length | 1350mm | 1500mm | 1550mm | 1650mm | 1750mm | 1750mm |
Width | 950mm | 1200mm | 1250mm | 1250mm | 1250mm | 1250mm | |
Height | 1800mm | 2500mm | 2750mm | 2750mm | 2850mm | 3200mm | |
Weight(Kg) | 2300 | 2850 | 4300 | 5500 | 6200 | 8500 | |
Hose size(G) | 3/4 | 1 | 1 | 11/4’ | 11/4’ | 11/4’ | |
Impact power(KN) | 251 | 278 | 500 | 580 | 710 | 800 | |
Impact frequency(Hz) | 25-30 | 25-30 | 25-30 | 25-29 | 25-29 | 25-29 | |
Used for | Use for some of exacavate and dismantle works also can work for arenaceous clay and ice breaking. | Wider working areas, can work for loose rock,some stand stone,city roadbed,and thicker feozen earth. | Design for some big earthwork and some stone mine.It has special effects on shale, fault fracture zone and some decomposed rock. | At some big earthworks areas, we used to have got a score ate 150 cubes per hour(sand rock). Wide working scopes,and could take some place of blast work. | Biggish type viber, design for mining, used to have 3800 cubes(22 hours)per day output to replace blast work) | Biggest type viber in the world at the moment. It can break the rock over 8 level.Empoly the most adcanced vibration technology, match on 80~100T excavators. |
RVR-30 with Komatsu220: the daily quality for red sand rock is 800-1000CBM. It’s 2-3 times than 140 breaker.
RVR-50 with Hitachi350: the daily quality for Sandstone is about 1200CBM. It’s 2 times than 140 breaker.
RVR-60 with Komatsu450: the daily quality for red sand rock is about 1500CBM. It’s 2-3 times than 155 breaker.
RVR-60 with Sany460: the daily quality for Limestone is about 2300CBM. It’s 3 times than 165 breaker.
RVR-60 with Komatsu470: the daily quality for sandstone or limestone is 3000-3800CBM. It’s same with blast.
2. Make sure of the material of the stone.
Mohs’ hardness reference table | |
SV-15 SV-20 | 1-3 hardness level standard mineral: Talc, Gypsum. |
SV-30 SV-40 | 3-4 hardness level standard mineral: Red sand rock, Fluorite. |
SV-50 SV-60 | 5-6 hardness level standard mineral: Apatite, Syenite |
SV-70 SV-80 | 7-8 hardness level standard mineral: Quartz, Topaz |
Not recommended level | 9-10 hardness level standard mineral: Marble, Adamas |
If you are not sure the material you can take photos and send to us. We will help you to find the most suitable model.
Or fill your needs in the below box. Click the "SEND" to us. We will reply you at once.
