Robust High-power Outdoor 400 Watt LED Flood Light
High watt, High lumen, High reliability
The H500 outdoor 400-watt LED flood light features finned cooler + heat pipes and high protection level and are perfect solution to high-power outdoor lighting demands. They can be used as replacements of traditional 600W-1000W high pressure sodium lamps (HPSL) and exert the SSL advantages in energy saving, light quality and long lifespan. The LED flood lighting product is an optimal choice for new installation or retrofit lighting applications in open field, stadium, golf course, square, airport, wharf, billboard, landmark, etc.
H400 – multifunctional outdoor 400W LED flood light | |
Input |
90~305Aac / 127~431Vdc, 50Hz / 60Hz, PF>0.95 |
Wattage |
400W |
Flux |
40,000lm, typical |
Optical efficacy |
90 ~ 110lm/W |
Correlated color temperature (CCT) |
3000K/4000K/6000K |
Color rendering index (CRI) |
70/80 |
Beam angle |
60/45/100/90/25° |
|
Average luminance (60°) |
Height 10m: >255lx |
Height 8m: >398.5lx | |
Height 6m: >708.4lx | |
Driver |
Meanwell HLG-240H-36A, x2pcs |
Safety & EMC |
UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65/IP67, J61347-1, J61347-2-13; UL60950-1, TUV EN60950-1 I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70%RH EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>=50% load) EN61000-3-3 EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024 |
Housing |
Die-casting housing, black anodized |
Heatsink |
Finned cooler + heat pipes (x4) |
LED array |
CREE XTE, x200pcs |
Temperature |
-40ºC ~ +50ºC (operation) |
-25ºC ~ +65ºC (storage) | |
Humidity |
Up to 99% RH |
IP rating |
IP67 |
Certifications |
CE, RoHS, FCC |
Lifespan |
>50,000H |
warranty |
5 years |
Installation |
Bolting |
Net weight |
10.5kg |
Dimensions |
Ø374 x H497mm (Ø14.7"xH19.6") |
Packaging size/weight |
49x49x59cm, 14.5kg |
Price |
USD 428.00 / piece |
|
Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract. Related datasheets and test reports are provided upon request. | |
Features
|
Patented, stylish and robust heatsink and structure design to support use in rugged outdoor environment | |
Finned cooler saves materials and lose weight, faciliating installation and maintenance | |
|

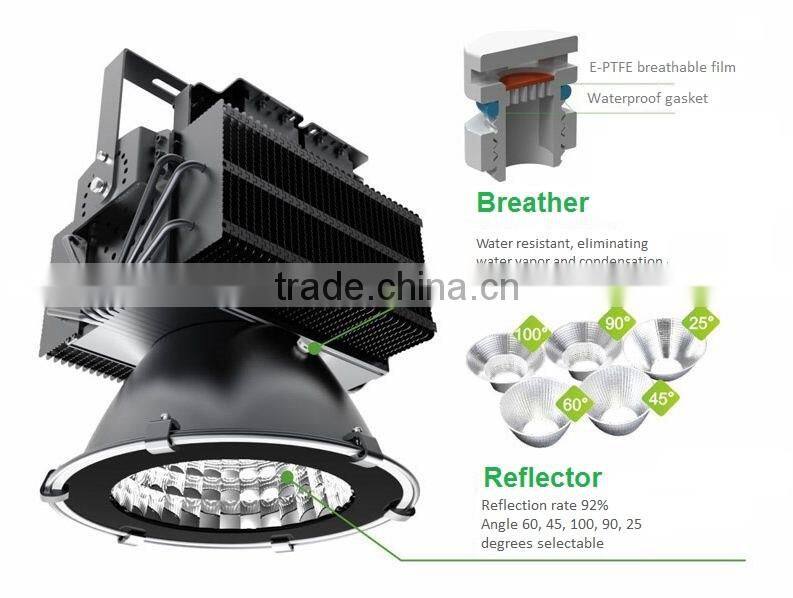

Reflector angle 60, 45, 100, 90, 25 degrees selectable, reflection rate up to 92% | |

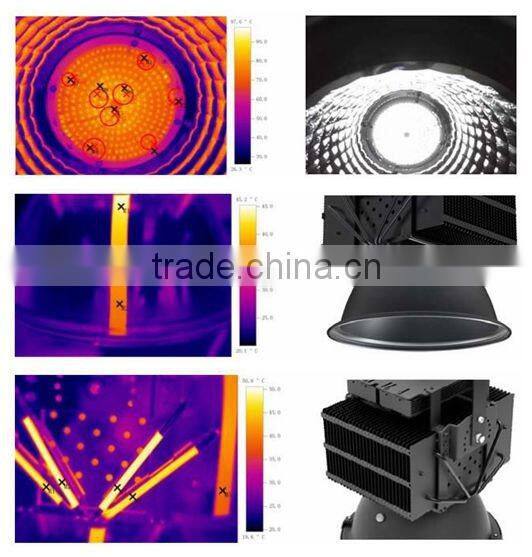

Copper heat pipes accelerate heat transfer and cools LED light source rapidly, lowering junction temperature and degradation | |
|
Patented finned cooler plus efficient copper heat pipes, strong structure and effective cooling effect | |
Screw fixing enables easy installation and adjustment, free of maintenance | |
|

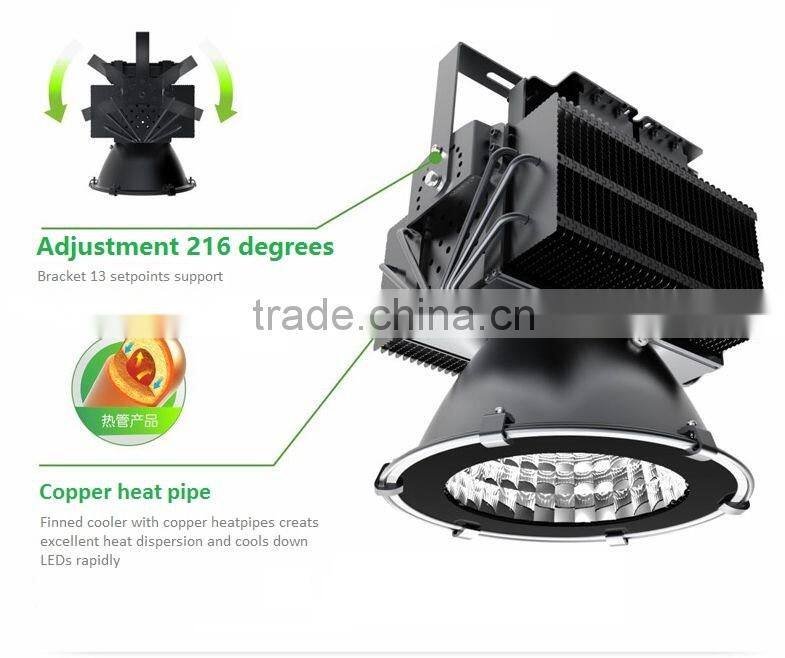

Bracket has 13 setpoints and allows installation direction adjusted in 216 degress | |
IP67 protection level meets the most demanding rugged outdoor application environment | |
|
Branded Meanwell(R) power driver guarantees reliable and stable operation and long lifespan | |
Renowned Cree XTE LEDs produce high efficacy and low degradation |

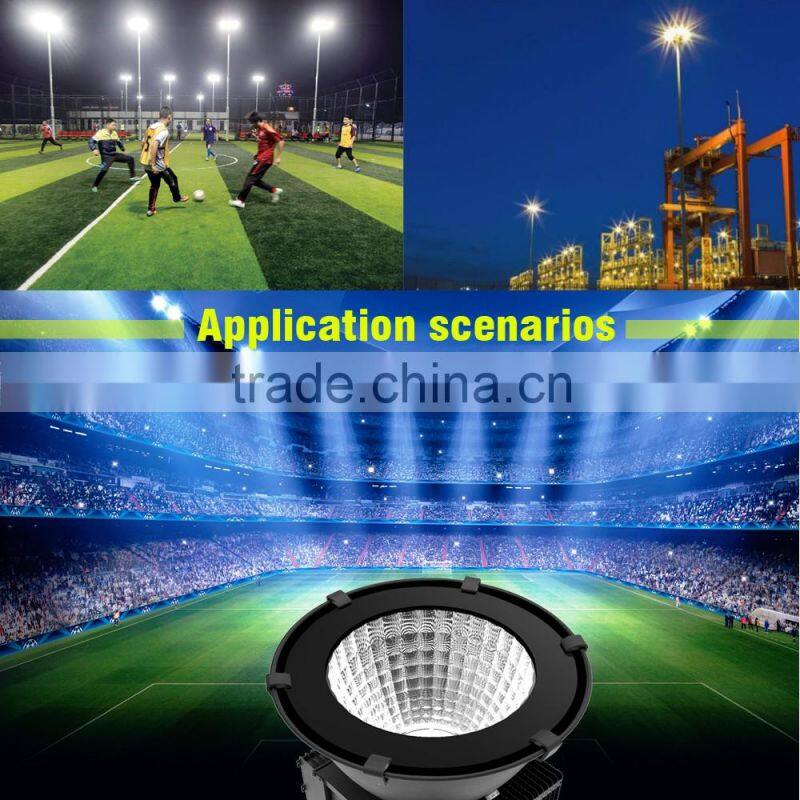

LED flood lighting Outdoor Applications

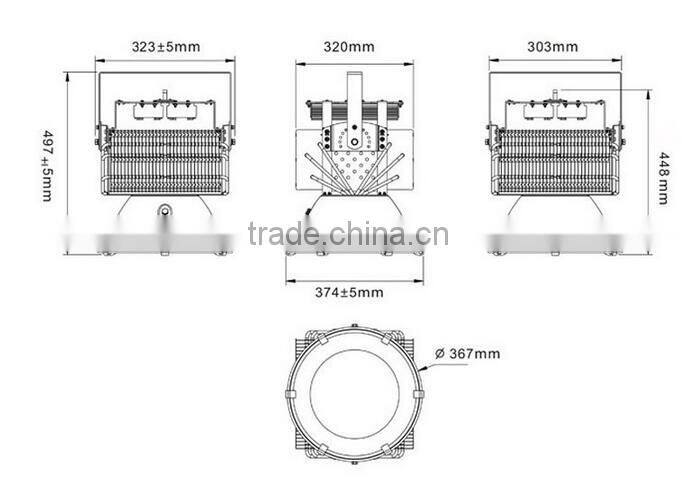

Outdoor 400W LED flood light Dimensions
