Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light thumbnail-1
Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light thumbnail-2
Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light photo-1

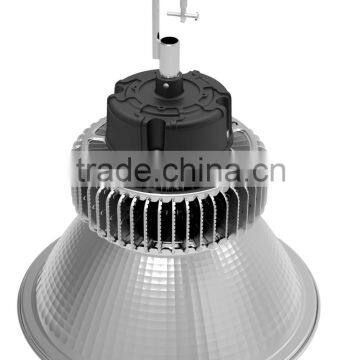

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light photo-2
US$ 99.00 - 99.00 MOQ: 8 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Lumileds LUXEON 3030 2D
Warranty(Years):
5
Input Voltage(V):
AC90-305V
Contact Supplier Request Quote Chat Now
Shenzhen Peaking Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Lumileds LUXEON 3030 2D
Warranty(Years) 5
Input Voltage(V) AC90-305V
Lamp Power(W) 100
Lamp Luminous Flux(lm) 12000
Lamp Luminous Efficiency(lm/w) 120
Color Temperature(CCT) Pure White
Working Temperature(℃) -40, 55
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CE, EMC, FCC, LVD, UL
Place of Origin Guangdong, China
Brand Name OEM
Model Number GKH-1

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light

Innovative, lightweight and flexible high bay lighting for industrial lighting

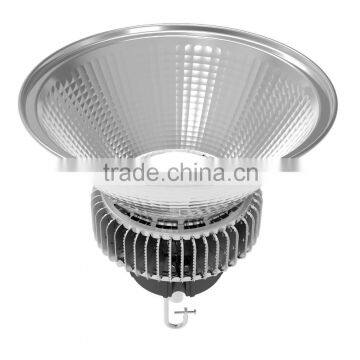

The innovative GKH-1 LED high bay light 100W features ultrathin finned cooler, scale-type reflector, compactness and cheap price, including Lumileds LUXEON 3030 2D LEDs x100pcs and Meanwell driver. Flexible tube or chain suspension pendant installation allows easy installation in applications such as factory building, warehouse, stadium, shopping mall, exhibition hall, etc.

GKH-1 – Lumiled Meanwell Driver Industrial Lighting 100W LED High Bay Light

Input

90~305Vac / 127~431Vdc, 50Hz / 60Hz, PF>0.95

Wattage

100W

Flux

12,000lm, typical

Optical efficacy

100 ~ 120lm/W

Correlated color temperature (CCT)

3000K/4000K/6000K

Color rendering index (CRI)

70/80

Driver

Meanwell HLG-150H-36A

Safety & EMC

UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65/IP67, J61347-1, J61347-2-13; UL60950-1, TUV EN60950-1

I/P-O/P:3.75KVAC  I/P-FG:2KVAC  O/P-FG:0.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70%RH

EN55015, EN55022 (CISPR22) Class B, EN61000-3-2  Class C (>=50% load) EN61000-3-3

EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024

Housing

Snap-fit fins aluminum housing

Heatsink

Ultra thin finned cooler

LED array

Lumileds LUXEON 3030 2D, x100pcs

Temperature

-40ºC ~ +50ºC (operation)

-25ºC ~ +65ºC (storage)

Humidity

Up to 99% RH

Protection

IP65

Certifications

CE, RoHS, FCC

Lifespan

>50,000H

warranty

5 years

Installation

Tube/chain suspension pendant installation

Net weight

2.3kg

Dimensions

Ø270x360mm

Packaging size/weight

Housing 52.5x52.5x20cm, x8pcs, 19kg

Reflector 43x43x15cm, x8 pcs, 10kg

Price

USD 99.00 / piece

Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract.

Related datasheets and test reports are provided upon request.

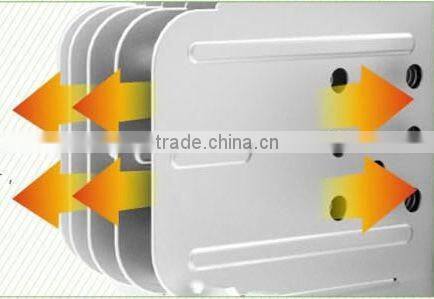

Innovative Finned Cooler

  • Material aluminum 1060 with purity 99.6%
  • 3D ventilation via hollows and grooves
  • Compact structure of ultrathin fins with large heat dispersion area

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light                              Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light



Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light

 Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light

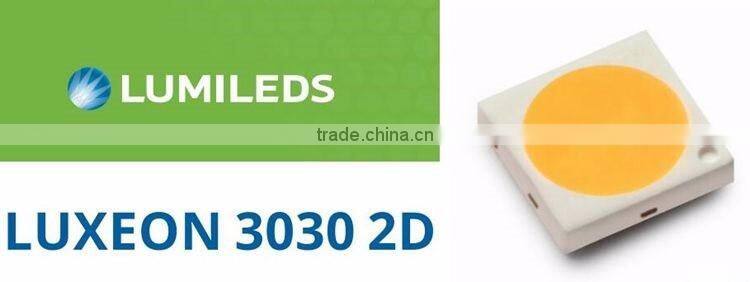

Lumileds LUXEON 3030 2D

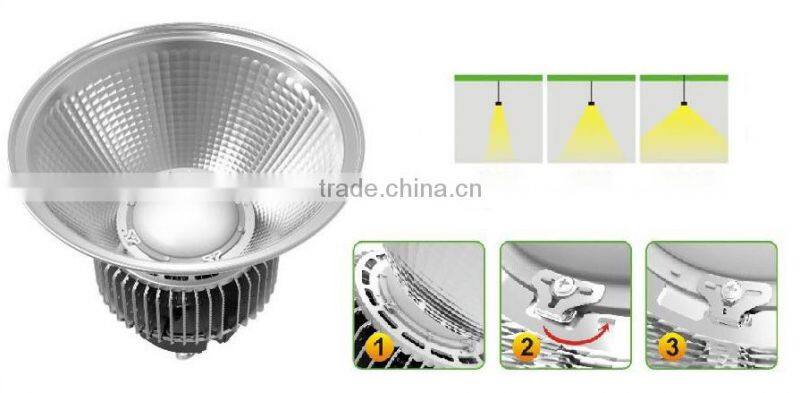

Reflector

  • High-purity aluminum with anodization and polishing
  • Optimized secondary optics and minimized glare
  • Scale-type reflection area; 25º, 60ºor 100ºreflective angle
  • Illuminance lux increased by 55%
  • Rotation-and-click easy installation, free of tools
  • Frosted or clear PC reflector selectable

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light





Construction and installation

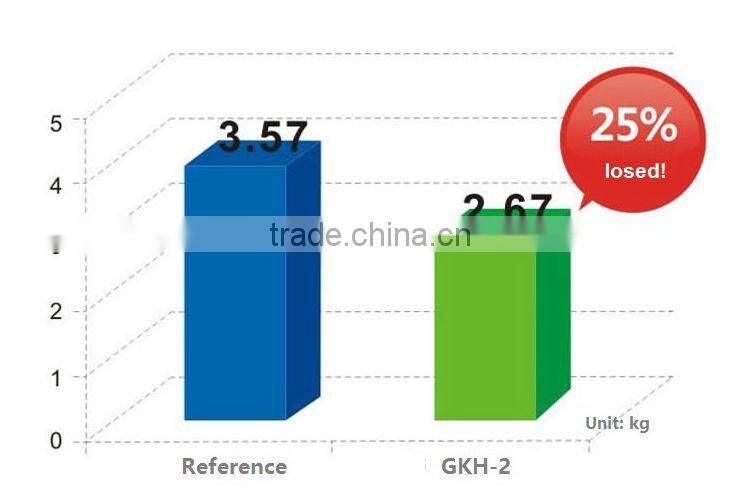

  • Ultrathin finned cooler helps lose weight by 25%
  • Shipment packaging volume reduced by 50%
  • Flexible installation option via tube or chain suspension

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay LightLumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light





Typical applications

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light

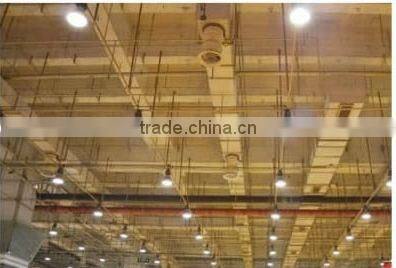

Industrial lighting

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light

Commercial lighting

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light

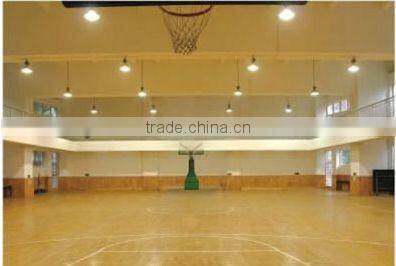

Stadium lighting

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light

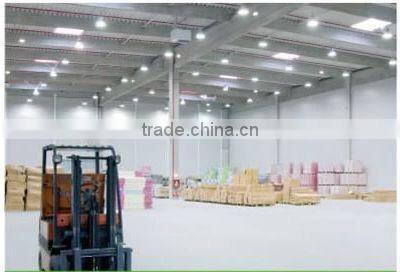

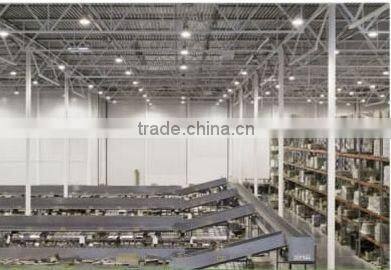

Warehouse lighting

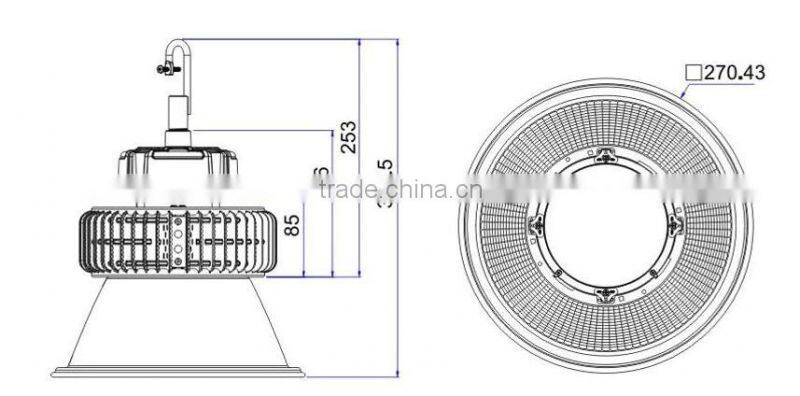

 Dimensions

Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light



Lumileds Meanwell Driver Industrial Lighting 100W LED High Bay Light
