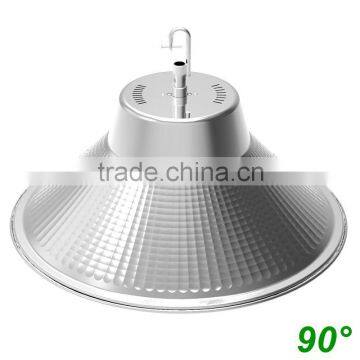

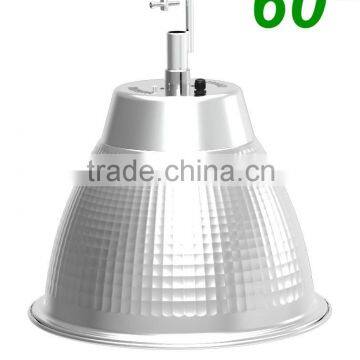

Innovative Cheap Pendant 100W LED High Bay Light

US$ 79.00 - 79.00 MOQ: 1 Piece

Key Specifications

LED Light Source:

SMD2835

Warranty(Years):

Input Voltage(V):

AC90-305V

Shenzhen Peaking Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source SMD2835

Warranty(Years) 5

Input Voltage(V) AC90-305V

Lamp Power(W) 100

Lamp Luminous Flux(lm) 10000

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Pure White

Working Temperature(℃) -40, 55

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CE, EMC, FCC, LVD, UL

Place of Origin Guangdong, China

Brand Name OEM

Model Number GK100J

Integrated Lightweight Cheap 100W LED High Bay Light

Innovative integration of heatsink and reflector - cutting both weight and costs of LED light housing
Pendant suspension installation, easy to install and maintain, saving energy and total ownership costs
SMD2835 LEDs 200pcs and superb seconday optic design, producing 30% more lux
Meanwell power driver, stable & reliable operation for 50,000 hours
Perfect replacement for metal halide lamp MHL 200W-300W to save energy by 50%

GK100J –Integrated Cheap 100W LED High Bay Light
Input	90~305Vac / 127~431Vdc, 50Hz / 60Hz, PF>0.95
Wattage	100W
Flux	10,000lm, typical
Optical efficacy	90 ~ 110lm/W
Correlated color temperature (CCT)	3000K/4000K/6000K
Color rendering index (CRI)	70/80
Driver	Meanwell HLG-150H-36A
Safety & EMC	UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65/IP67, J61347-1, J61347-2-13; UL60950-1, TUV EN60950-1 I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70%RH EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>=50% load) EN61000-3-3 EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
Housing	Reflector-centric construction
Heatsink	Aluminum reflector as heatsink
LED array	EMC 2835, x200pcs
Temperature	-40ºC ~ +55ºC (operation)
Temperature	-25ºC ~ +65ºC (storage)
Humidity	Up to 99% RH
Protection	IP65
Certifications	CE, RoHS, FCC
Lifespan	>50,000H
warranty	5 years
Installation	Tube/chain suspension pendant installation
Net weight	2.5kg

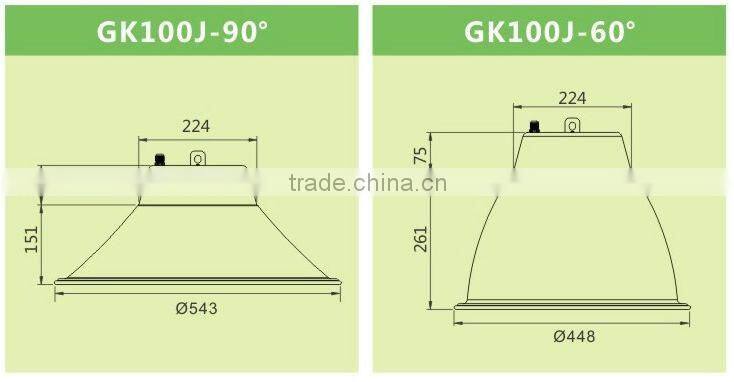

Dimensions	Ø543x226mm (90°)/ Ø448x336mm (60°)
Packaging size/weight	Carton 56x56x34cm / D46x46x45mm, gross weight 4kg
Price	USD 79.00 / piece
Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract. Related datasheets and test reports are provided upon request.
